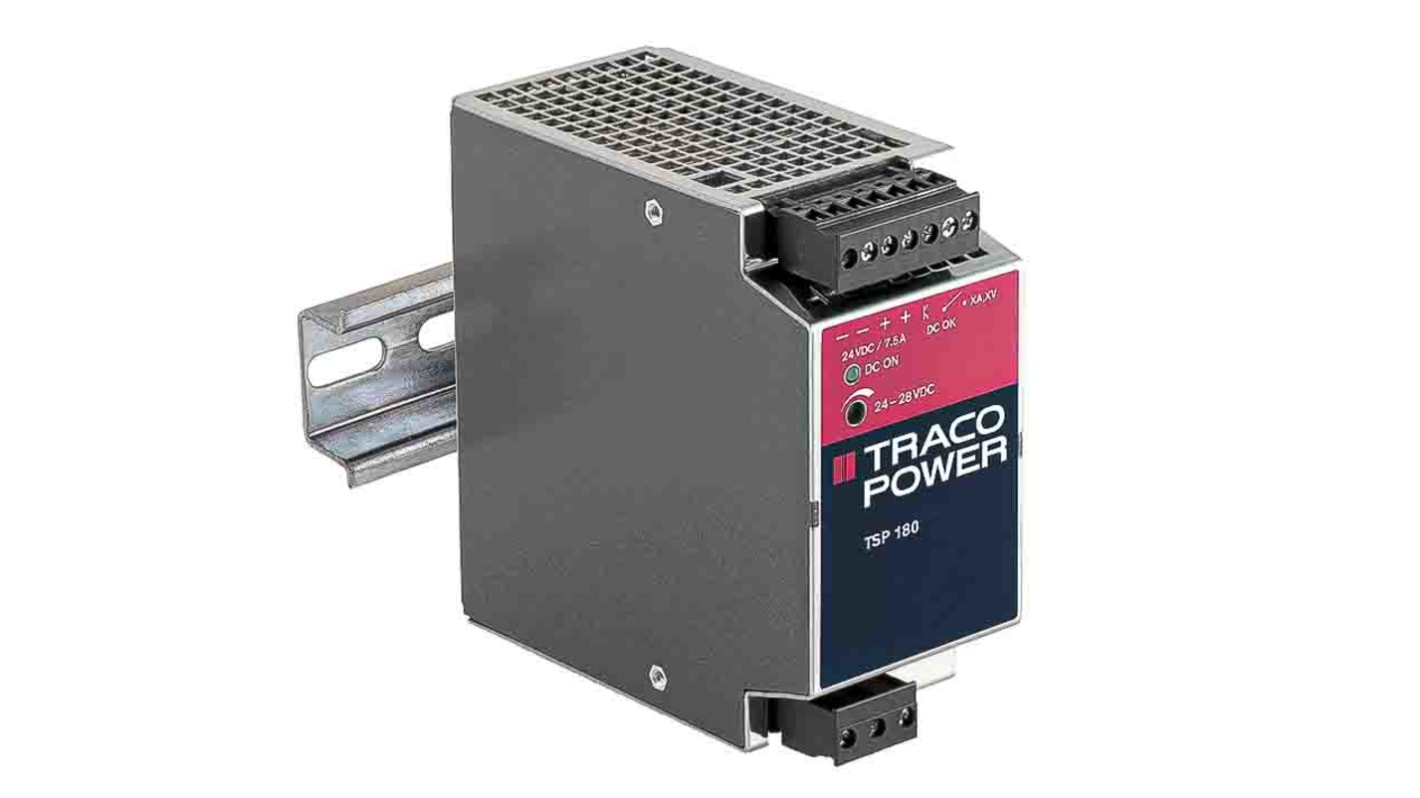

TRACOPOWER TSP Switched Mode DIN Rail Power Supply, 85 → 132V ac ac Input, 48V dc dc Output, 4A Output, 180W
- RS Stock No.:
- 744-2436
- Mfr. Part No.:
- TSP 180-148
- Brand:
- TRACOPOWER
Subtotal (1 unit)*
£189.80
(exc. VAT)
£227.76
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
- Plus 3 unit(s) shipping from 02 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £189.80 |
*price indicative
- RS Stock No.:
- 744-2436
- Mfr. Part No.:
- TSP 180-148
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Series | TSP | |
Type | Switched Mode | |
Electrical Phase | 1 | |
Number of Outputs | 1 | |
AC or DC Input Voltage | ac | |
Input Voltage | 85 → 132V ac | |
AC or DC Output Voltage | dc | |
Output Voltage | 48V dc | |
Output Current | 4A | |
Dimensions | 110 x 54 x 110mm | |
Depth | 110mm | |
Width | 54mm | |
Height | 110mm | |
Ripple And Noise | 200mV Pk-Pk | |
Minimum Temperature | -25°C | |
Mounting Type | DIN Rail Mount | |
Maximum Temperature | +70°C | |
Load Regulation | ±0.5% | |
MTBF | 900000h | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Series TSP | ||
Type Switched Mode | ||
Electrical Phase 1 | ||
Number of Outputs 1 | ||
AC or DC Input Voltage ac | ||
Input Voltage 85 → 132V ac | ||
AC or DC Output Voltage dc | ||
Output Voltage 48V dc | ||
Output Current 4A | ||
Dimensions 110 x 54 x 110mm | ||
Depth 110mm | ||
Width 54mm | ||
Height 110mm | ||
Ripple And Noise 200mV Pk-Pk | ||
Minimum Temperature -25°C | ||
Mounting Type DIN Rail Mount | ||
Maximum Temperature +70°C | ||
Load Regulation ±0.5% | ||
MTBF 900000h | ||
- COO (Country of Origin):
- CN
90 to 600W TSP Series
The TSP series of DIN rail mount power supplies are designed to work reliably under difficult factory conditions.These high performance power supplies have a high immunity against electrical disturbances, they also provide a DC-OK signal and external shut down function. Detachable screw terminal blocks make for easy connection.
Battery Controller Module also available with battery protection system.
Battery Controller Module also available with battery protection system.
Autoselect input and international safety approvals
Industrial Operating Temperature of -25 → 70°C
Power OK signal
Remote On/Off
Shock and vibration proof
Rugged metal case for harsh industrial environments
Industrial Operating Temperature of -25 → 70°C
Power OK signal
Remote On/Off
Shock and vibration proof
Rugged metal case for harsh industrial environments
Note
Manufacturer part numbers ending in EX are ATEX and IECEx Certified.
