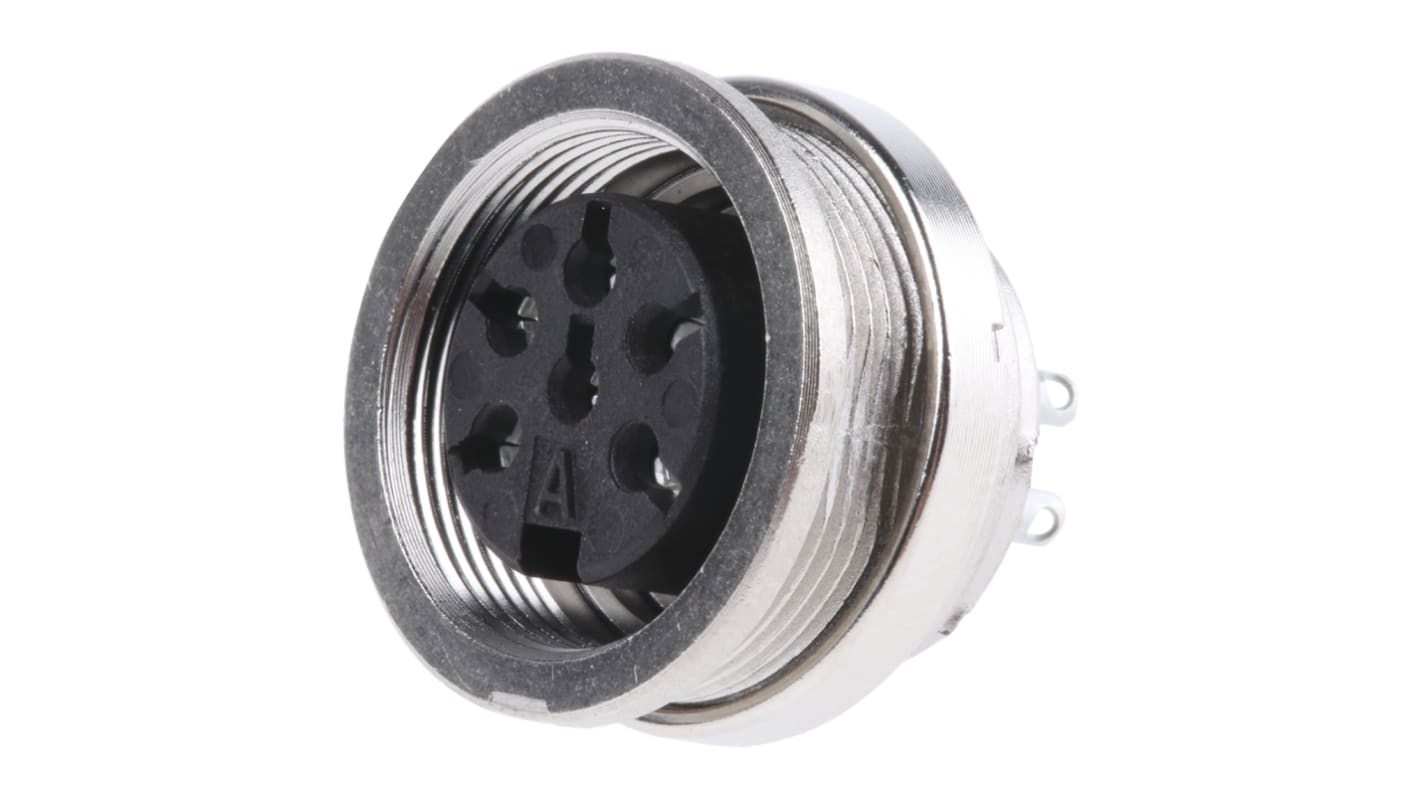

Amphenol Industrial, signalmate C091 6 Pole M16 Din Socket, 5.0A, 300 V IP40, Screw On, Panel Mount
- RS Stock No.:
- 612-1771
- Distrelec Article No.:
- 144-40-905
- Mfr. Part No.:
- T3403 000 RS
- Brand:
- Amphenol Industrial
Bulk discount available
Subtotal (1 unit)*
£9.01
(exc. VAT)
£10.81
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 429 unit(s) ready to ship
- Plus 999,999,570 unit(s) shipping from 30 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £9.01 |
10 - 49 | £8.42 |
50 - 99 | £7.86 |
100 + | £7.32 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£13.24
(exc. VAT)
£15.89
(inc. VAT)
- RS Stock No.:
- 612-1771
- Distrelec Article No.:
- 144-40-905
- Mfr. Part No.:
- T3403 000 RS
- Brand:
- Amphenol Industrial
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Amphenol Industrial | |
Number of Contacts | 6 | |
Mounting Type | Panel Mount | |
Connector Size | M16 | |
Mating Type | Screw On | |
Termination Method | Solder | |
Body Orientation | Straight | |
Current Rating | 5.0A | |
Voltage Rating | 300 V | |
IP Rating | IP40 | |
Series | signalmate C091 | |
Housing Material | Metal, Polymer | |
Maximum Operating Temperature | +85°C | |
Contact Plating | Silver | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand Amphenol Industrial | ||
Number of Contacts 6 | ||
Mounting Type Panel Mount | ||
Connector Size M16 | ||
Mating Type Screw On | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Current Rating 5.0A | ||
Voltage Rating 300 V | ||
IP Rating IP40 | ||
Series signalmate C091 | ||
Housing Material Metal, Polymer | ||
Maximum Operating Temperature +85°C | ||
Contact Plating Silver | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- CN
Panel Socket Front Mounting, Ring/Hex Nut
Gold and silver contact versions
Note
Depth of 12way socket only is 14mm, all other depths are 16mm as shown in illustration. Stock No. 696-1566 is fitted with a Hex nut.

C091A - Metal/Plastic
Circular connectors with metal screw coupling and plastic back shell.
Metal locking ring; screw locking in accordance to DIN EN 60130-9 / IEC 60130-9
Internal metal strain relief
Silver plated contacts
Solder terminations
3 - 8 and 12 contact connectors/receptacles
UL registered under file number E 63 093 UL
Internal metal strain relief
Silver plated contacts
Solder terminations
3 - 8 and 12 contact connectors/receptacles
UL registered under file number E 63 093 UL
