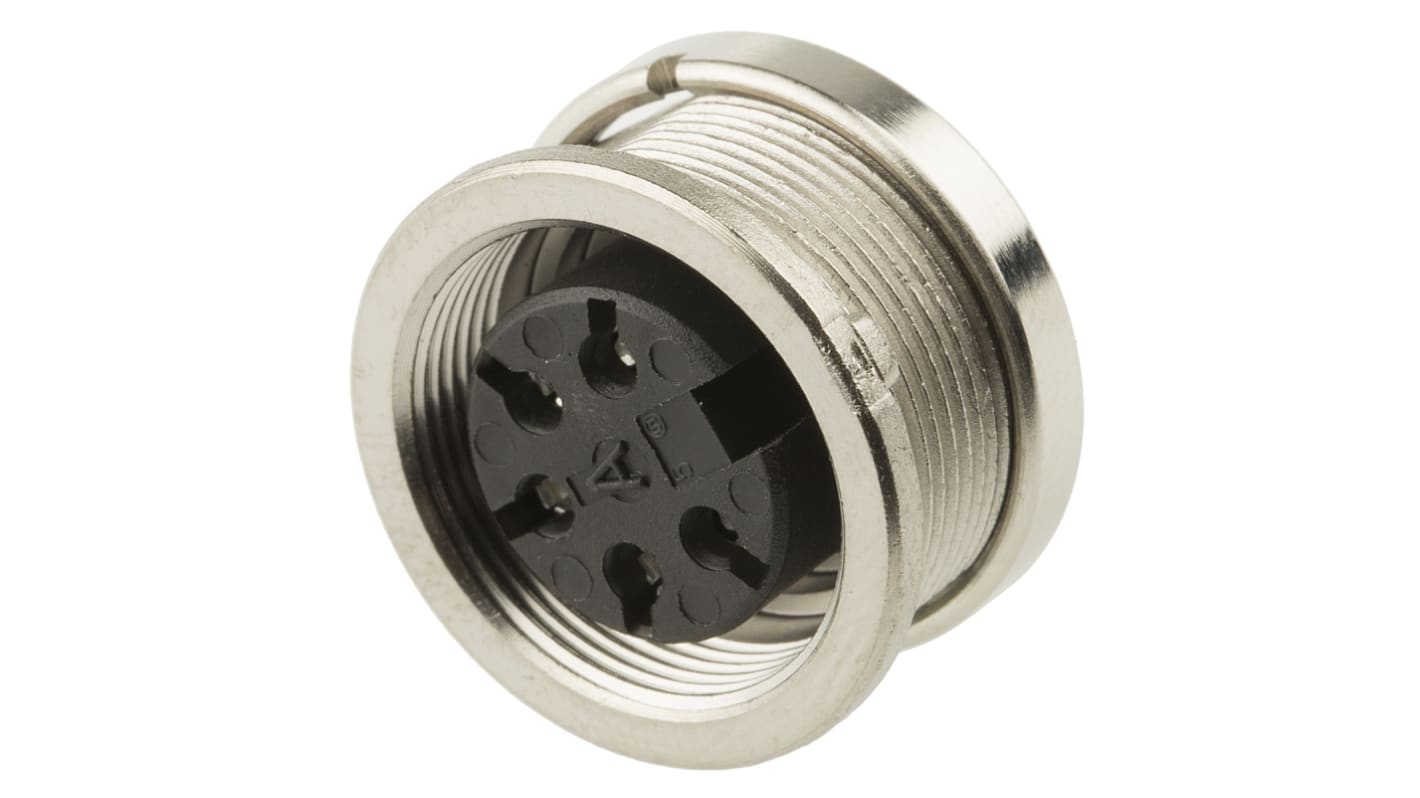

Amphenol Industrial, signalmate C091 5 Pole Straight M16 DIN Socket, 5.0A, 300V IP40, Screw-On, Panel Mount

View all DIN Connectors
Bulk discount available

Subtotal (1 unit)*

£11.20

(exc. VAT)

£13.44

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1,358 unit(s) ready to ship
  • Plus 22 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 9£11.20
10 - 49£10.73
50 - 99£10.15
100 +£9.68

*price indicative

RS Stock No.:
612-1759
Distrelec Article No.:
144-40-806
Mfr. Part No.:
T3363 000 RS
Brand:
Amphenol Industrial
Find similar products by selecting one or more attributes.
Select all

Brand

Amphenol Industrial

Product Type

DIN Socket

Number of Contacts

5

Mount Type

Panel Mount

Current

5.0A

Connector Size

M16

Mating Type

Screw-On

Orientation

Straight

Voltage

300V

IP Rating

IP40

Minimum Operating Temperature

-40°C

Termination Type

Solder

Maximum Operating Temperature

85°C

Contact Gender

Female

Series

signalmate C091

Standards/Approvals

No

Pole Format

5

Housing Material

Polymer, Metal

Contact Plating

Silver

Contact Material

Brass

Panel Socket Front Mounting, Ring/Hex Nut


Gold and silver contact versions

C091A - Metal/Plastic


Circular connectors with metal screw coupling and plastic back shell.

Metal locking ring; screw locking in accordance to DIN EN 60130-9 / IEC 60130-9

Internal metal strain relief

Silver plated contacts

Solder terminations

3 - 8 and 12 contact connectors/receptacles

UL registered under file number E 63 093 UL

Note

Depth of 12way socket only is 14mm, all other depths are 16mm as shown in illustration. Stock No. 696-1566 is fitted with a Hex nut.
