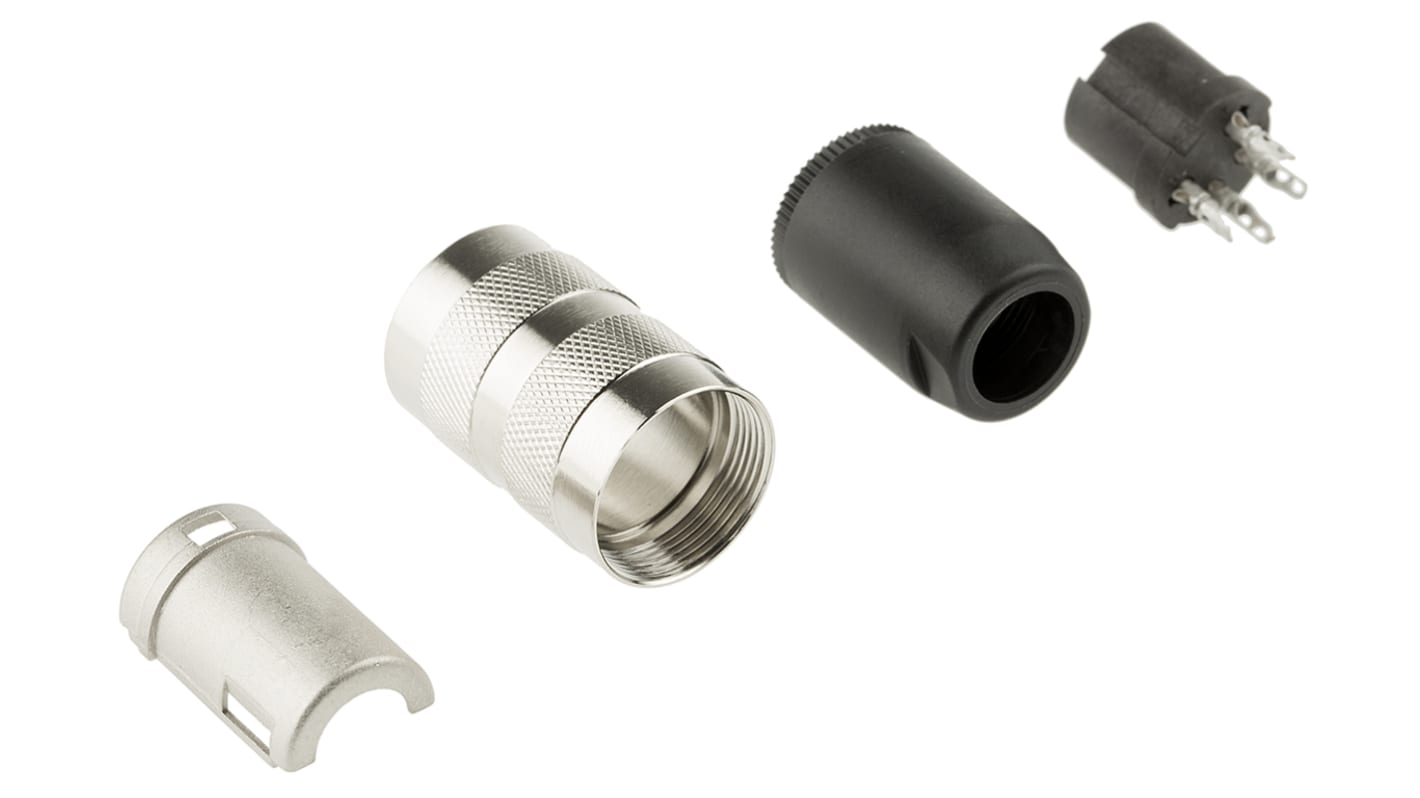

Amphenol Industrial, signalmate C091 4 Pole Straight M16 DIN Socket, 5A, 300V IP40, Screw-On, Cable
- RS Stock No.:
- 612-1670
- Distrelec Article No.:
- 144-40-343
- Mfr. Part No.:
- T3301 001 RS
- Brand:
- Amphenol Industrial
Bulk discount available
Subtotal (1 unit)*
£12.14
(exc. VAT)
£14.57
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 204 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £12.14 |
| 10 - 49 | £10.94 |
| 50 - 99 | £10.33 |
| 100 + | £9.17 |
*price indicative
- RS Stock No.:
- 612-1670
- Distrelec Article No.:
- 144-40-343
- Mfr. Part No.:
- T3301 001 RS
- Brand:
- Amphenol Industrial
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Industrial | |
| Number of Contacts | 4 | |
| Product Type | DIN Socket | |
| Mount Type | Cable | |
| Current | 5A | |
| Connector Size | M16 | |
| Mating Type | Screw-On | |
| Orientation | Straight | |
| Voltage | 300V | |
| IP Rating | IP40 | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Contact Gender | Female | |
| Standards/Approvals | No | |
| Series | signalmate C091 | |
| Pole Format | 4 | |
| Housing Material | Metal, Polymer | |
| Contact Plating | Silver | |
| Contact Material | Brass | |
| Select all | ||
|---|---|---|
Brand Amphenol Industrial | ||
Number of Contacts 4 | ||
Product Type DIN Socket | ||
Mount Type Cable | ||
Current 5A | ||
Connector Size M16 | ||
Mating Type Screw-On | ||
Orientation Straight | ||
Voltage 300V | ||
IP Rating IP40 | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Contact Gender Female | ||
Standards/Approvals No | ||
Series signalmate C091 | ||
Pole Format 4 | ||
Housing Material Metal, Polymer | ||
Contact Plating Silver | ||
Contact Material Brass | ||
Straight Cable Socket
For cable diameter 3 - 6mm
C091A - Metal/Plastic
Circular connectors with metal screw coupling and plastic back shell.
Metal locking ring; screw locking in accordance to DIN EN 60130-9 / IEC 60130-9
Internal metal strain relief
Silver plated contacts
Solder terminations
3 - 8 and 12 contact connectors/receptacles
UL registered under file number E 63 093 UL
