Amphenol, signalmate C091 4 Pole M16 Din Plug, 5.0A, 300 V IP40, Screw On, Cable Mount
- RS Stock No.:
- 612-1614
- Mfr. Part No.:
- T3300 001 RS
- Brand:
- Amphenol Industrial
84 In stock - FREE next working day delivery available
15 available from Europe for delivery within 1 working day(s).
Added
Price Each
£8.23
(exc. VAT)
£9.88
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £8.23 |
| 10 - 49 | £7.79 |
| 50 - 99 | £7.42 |
| 100 + | £7.04 |
- RS Stock No.:
- 612-1614
- Mfr. Part No.:
- T3300 001 RS
- Brand:
- Amphenol Industrial
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

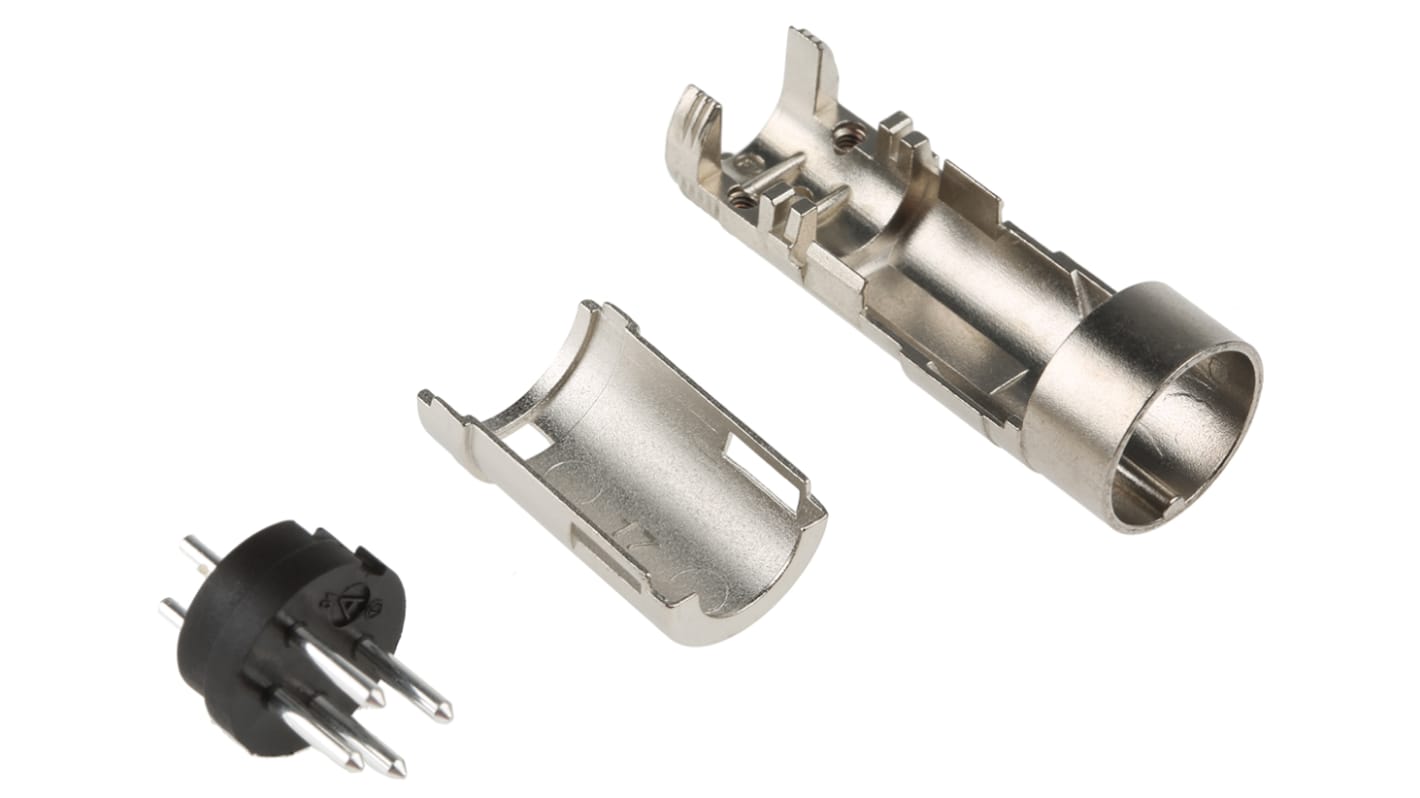

Amphenol Circular Connector
The Amphenol C091A series 4-contact male circular connector has a plug-type connection. This cable mount connector has a voltage rating of 300VAC and a current rating of up to 5A per contact. The connector includes internal metal strain relief with half-shell construction and snap-in latching. This can be made of thermoplastic material with a silver plating copper alloy contacts. It is a compact and robust design, with a screw-on matting connection that meets the high requirements of industrial technology applications.
Features and Benefits
Straight body orientation
Cable diameter ranging between 3mm and 6mm
Durability of 500 mating cycles
EMI shielding
Operating temperature ranging between -40°C and 85°C
Shell size is 17mm
Cable diameter ranging between 3mm and 6mm
Durability of 500 mating cycles
EMI shielding
Operating temperature ranging between -40°C and 85°C
Shell size is 17mm
Applications
Automation
Instrumentation
Power distribution
Robotics
Instrumentation
Power distribution
Robotics
Certifications
IP40 rated
UL approved
UL approved
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 4 |
| Mounting Type | Cable Mount |
| Connector Size | M16 |
| Mating Type | Screw On |
| Termination Method | Solder |
| Body Orientation | Straight |
| Current Rating | 5.0A |
| Voltage Rating | 300 V |
| IP Rating | IP40 |
| Series | signalmate C091 |
| Housing Material | Metal, Polymer |
| Contact Plating | Silver |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
