Samtec, ICA Straight, PCB Standard Pin DIL Socket, 1A
- RS Stock No.:
- 197-6814
- Mfr. Part No.:
- ICA-628-STT
- Brand:
- Samtec
Bulk discount available
Subtotal (1 unit)*
£2.25
(exc. VAT)
£2.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £2.25 |
| 10 + | £1.98 |
*price indicative
- RS Stock No.:
- 197-6814
- Mfr. Part No.:
- ICA-628-STT
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Product Type | DIL Socket | |
| Mount Type | PCB | |
| Current | 1A | |
| Pin Type | Standard | |
| Contact Plating | Gold | |
| Orientation | Straight | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Series | ICA | |
| Housing Material | Polyester | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Product Type DIL Socket | ||
Mount Type PCB | ||
Current 1A | ||
Pin Type Standard | ||
Contact Plating Gold | ||
Orientation Straight | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Series ICA | ||
Housing Material Polyester | ||

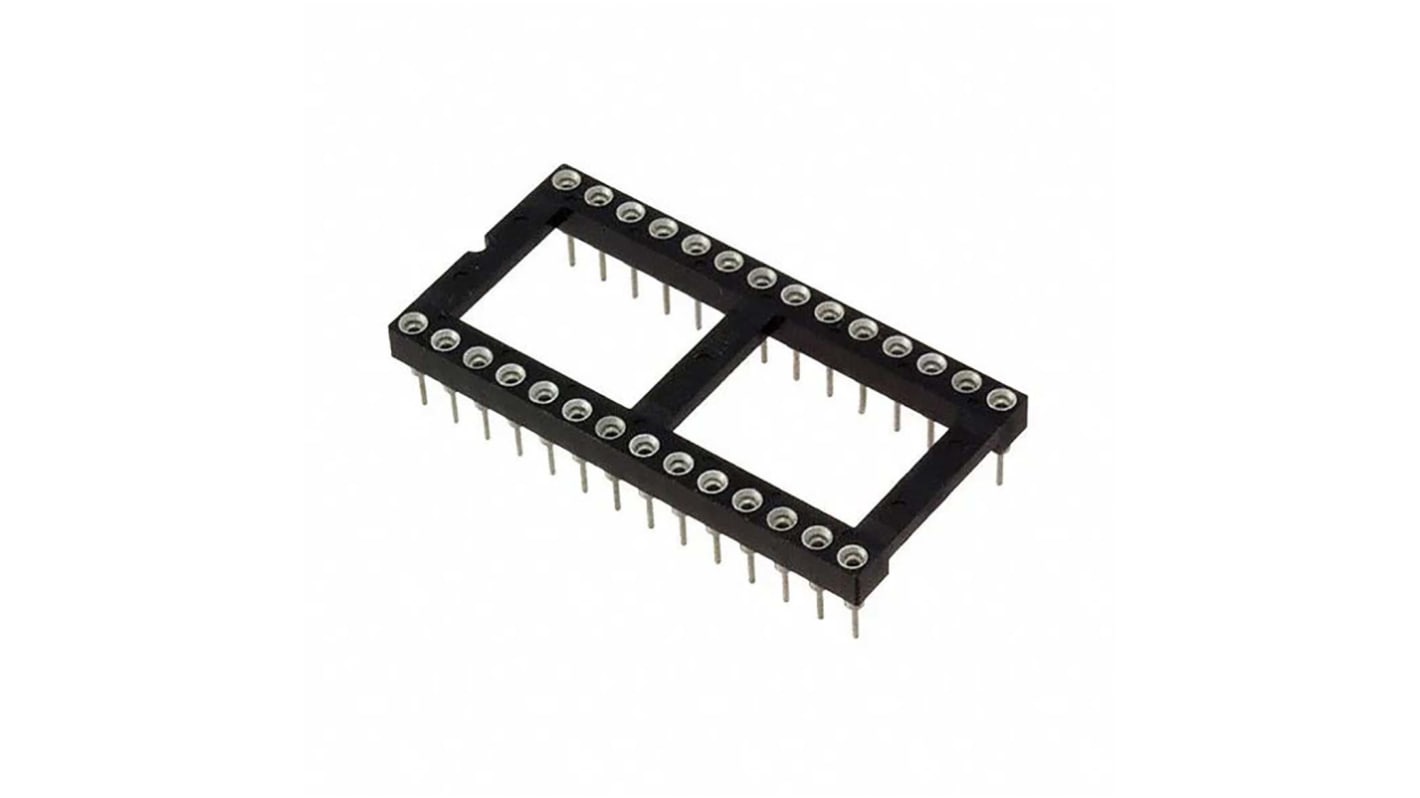

The Samtec ICA series screw machine DIP socket with open end and standard profile. It has tin plating.
Available up to 24 contacts per row
Dual row design
Through-hole
