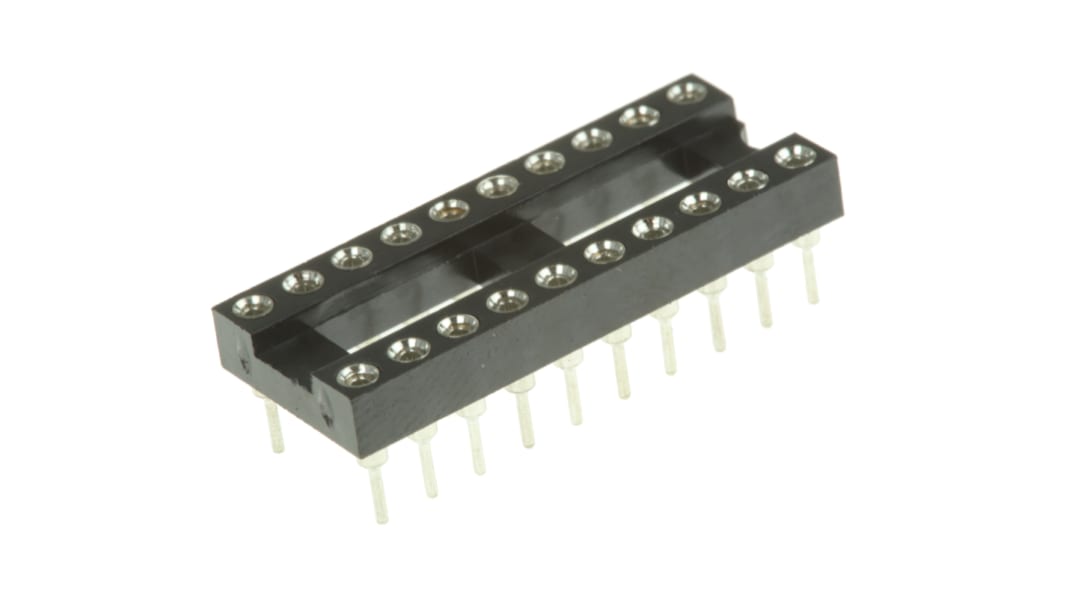

Winslow 2.54mm Pitch Vertical 20 Way, Through Hole Turned Pin Open Frame IC Dip Socket, 5A
- RS Stock No.:
- 197-2681
- Mfr. Part No.:
- W30520TTRC
- Brand:
- Winslow
Bulk discount available
Subtotal (1 tube of 20 units)*
£12.14
(exc. VAT)
£14.56
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,600 unit(s) ready to ship
- Plus 80 unit(s) ready to ship from another location
- Plus 1,000 unit(s) shipping from 26 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 20 - 480 | £0.607 | £12.14 |
| 500 - 1480 | £0.548 | £10.96 |
| 1500 - 3980 | £0.486 | £9.72 |
| 4000 - 7980 | £0.427 | £8.54 |
| 8000 + | £0.395 | £7.90 |
*price indicative
- RS Stock No.:
- 197-2681
- Mfr. Part No.:
- W30520TTRC
- Brand:
- Winslow
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Winslow | |
| Number of Contacts | 20 | |
| Mounting Type | Through Hole | |
| Pin Type | Turned | |
| Pitch | 2.54mm | |
| Row Width | 7.62mm | |
| Frame Type | Open Frame | |
| Termination Method | Solder | |
| Contact Plating | Tin | |
| Current Rating | 5A | |
| Orientation | Vertical | |
| Length | 25.32mm | |
| Width | 4.6mm | |
| Depth | 10.14mm | |
| Dimensions | 25.32 x 4.6 x 10.14mm | |
| Contact Material | Beryllium Copper | |
| Minimum Operating Temperature | -65°C | |
| Housing Material | PBT | |
| Maximum Operating Temperature | +150°C | |
| Select all | ||
|---|---|---|
Brand Winslow | ||
Number of Contacts 20 | ||
Mounting Type Through Hole | ||
Pin Type Turned | ||
Pitch 2.54mm | ||
Row Width 7.62mm | ||
Frame Type Open Frame | ||
Termination Method Solder | ||
Contact Plating Tin | ||
Current Rating 5A | ||
Orientation Vertical | ||
Length 25.32mm | ||
Width 4.6mm | ||
Depth 10.14mm | ||
Dimensions 25.32 x 4.6 x 10.14mm | ||
Contact Material Beryllium Copper | ||
Minimum Operating Temperature -65°C | ||
Housing Material PBT | ||
Maximum Operating Temperature +150°C | ||
Low Profile, Turned Pin
Low profile high-quality machined contact d.i.l. sockets comprising a four-finger (3 to 5 microns) tin over nickel-plated beryllium-copper inner contact, with a tin-plated brass outer shell.
Temperature Range: -55°C to +150 °C
Temperature Range: -55°C to +150 °C
