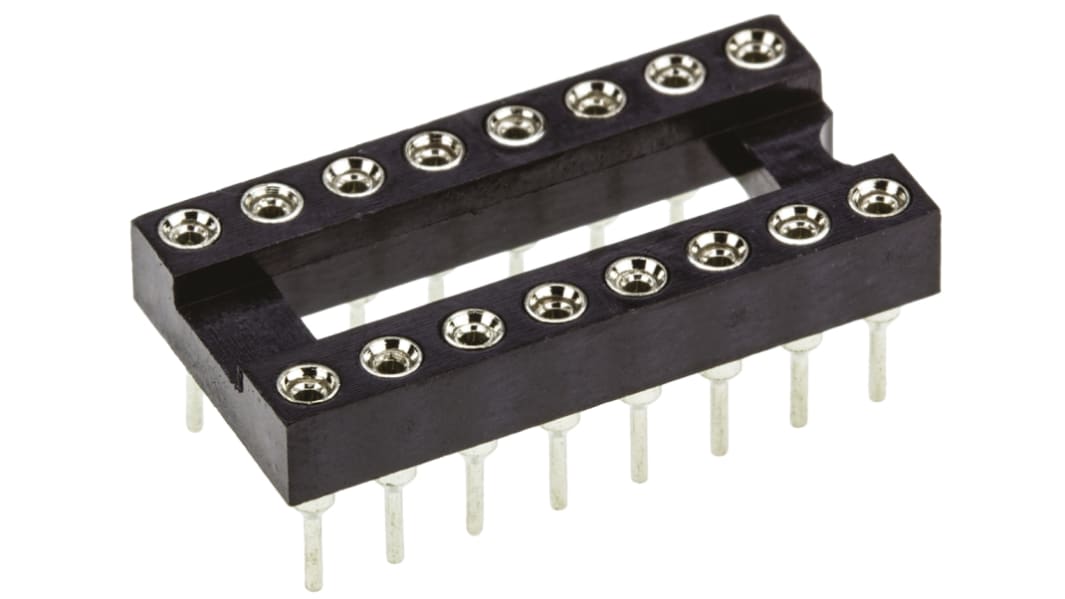

Winslow 2.54 mm Pitch Vertical 16 Way, Through Hole Turned Pin Open Frame DIL Socket, 5A
- RS Stock No.:
- 197-2669
- Mfr. Part No.:
- W30516TTRC
- Brand:
- Winslow
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 25 units)*
£12.15
(exc. VAT)
£14.575
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 4,550 unit(s) shipping from 02 June 2026
- Plus 425 unit(s) shipping from 02 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 25 - 600 | £0.486 | £12.15 |
| 625 - 1850 | £0.438 | £10.95 |
| 1875 - 4975 | £0.388 | £9.70 |
| 5000 - 9975 | £0.341 | £8.53 |
| 10000 + | £0.316 | £7.90 |
*price indicative
- RS Stock No.:
- 197-2669
- Mfr. Part No.:
- W30516TTRC
- Brand:
- Winslow
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Winslow | |
| Number of Contacts | 16 | |
| Product Type | DIL Socket | |
| Mount Type | Through Hole | |
| Pin Type | Turned | |
| Current | 5A | |
| Pitch | 2.54mm | |
| Row Width | 7.62mm | |
| Frame Type | Open Frame | |
| Contact Plating | Tin | |
| Orientation | Vertical | |
| Minimum Operating Temperature | -65°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 150°C | |
| Width | 4.6mm | |
| Depth | 10.14mm | |
| Standards/Approvals | No | |
| Length | 20.24mm | |
| Contact Material | Beryllium Copper Alloy | |
| Housing Material | Polybutylene Terephthalate | |
| Select all | ||
|---|---|---|
Brand Winslow | ||
Number of Contacts 16 | ||
Product Type DIL Socket | ||
Mount Type Through Hole | ||
Pin Type Turned | ||
Current 5A | ||
Pitch 2.54mm | ||
Row Width 7.62mm | ||
Frame Type Open Frame | ||
Contact Plating Tin | ||
Orientation Vertical | ||
Minimum Operating Temperature -65°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 150°C | ||
Width 4.6mm | ||
Depth 10.14mm | ||
Standards/Approvals No | ||
Length 20.24mm | ||
Contact Material Beryllium Copper Alloy | ||
Housing Material Polybutylene Terephthalate | ||
- COO (Country of Origin):
- CN
Low Profile, Turned Pin
Low profile high-quality machined contact d.i.l. sockets comprising a four-finger (3 to 5 microns) tin over nickel-plated beryllium-copper inner contact, with a tin-plated brass outer shell.
Temperature Range: -55°C to +150 °C
