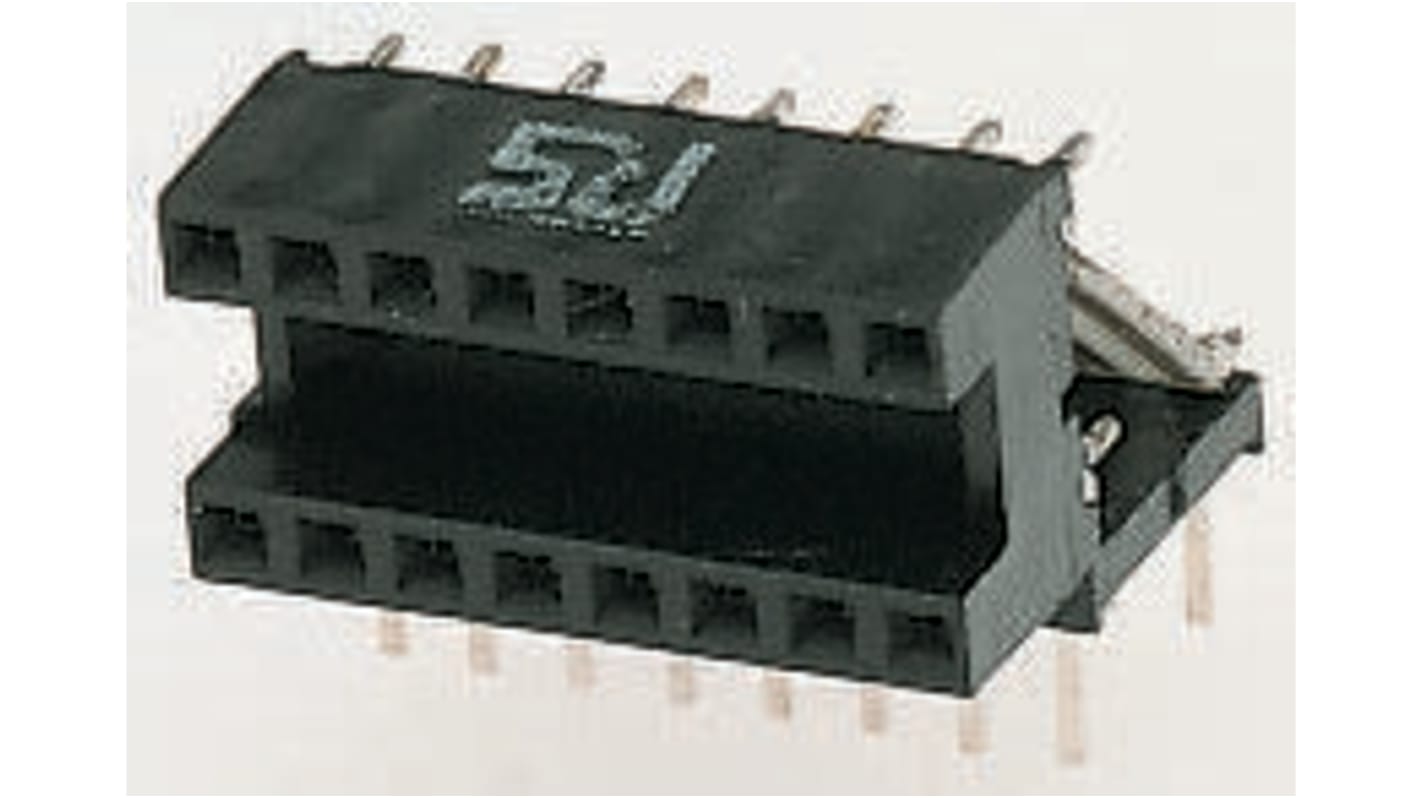

Winslow 2.54 mm Pitch Right Angle 16 Way, Through Hole Turned Pin Open Frame DIL Socket
- RS Stock No.:
- 403-049
- Mfr. Part No.:
- W3450-15TRC
- Brand:
- Winslow
Bulk discount available
Subtotal (1 unit)*
£2.25
(exc. VAT)
£2.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 42 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £2.25 |
| 25 - 74 | £2.03 |
| 75 - 199 | £1.81 |
| 200 - 399 | £1.58 |
| 400 + | £1.47 |
*price indicative
- RS Stock No.:
- 403-049
- Mfr. Part No.:
- W3450-15TRC
- Brand:
- Winslow
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Winslow | |
| Product Type | DIL Socket | |
| Number of Contacts | 16 | |
| Mount Type | Through Hole | |
| Pin Type | Turned | |
| Pitch | 2.54mm | |
| Row Width | 7.62mm | |
| Frame Type | Open Frame | |
| Contact Plating | Tin | |
| Orientation | Right Angle | |
| Minimum Operating Temperature | 150°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 150°C | |
| Width | 12.5 mm | |
| Depth | 12.5mm | |
| Length | 17.65mm | |
| Standards/Approvals | No | |
| Housing Material | Fibreglass Reinforced Polymer, Polyethylene Terephthalate | |
| Contact Material | Phosphor Bronze | |
| Select all | ||
|---|---|---|
Brand Winslow | ||
Product Type DIL Socket | ||
Number of Contacts 16 | ||
Mount Type Through Hole | ||
Pin Type Turned | ||
Pitch 2.54mm | ||
Row Width 7.62mm | ||
Frame Type Open Frame | ||
Contact Plating Tin | ||
Orientation Right Angle | ||
Minimum Operating Temperature 150°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 150°C | ||
Width 12.5 mm | ||
Depth 12.5mm | ||
Length 17.65mm | ||
Standards/Approvals No | ||
Housing Material Fibreglass Reinforced Polymer, Polyethylene Terephthalate | ||
Contact Material Phosphor Bronze | ||
- COO (Country of Origin):
- GB
Horizontal Mount, DIL Socket
Side stackable d.i.l. socket extended to allow mounting to a PCB
Tin -plated phosphor-bronze contacts in a blue polyester moulding
Signals are conveyed between PCB terminations and socket contacts by means of an epoxy glass resin printed circuit board
For use with opto-electronic displays up to 16 ways with pins on 0.3in. x 0.1in. pitch
Temperature range: -55°C to +150°C
