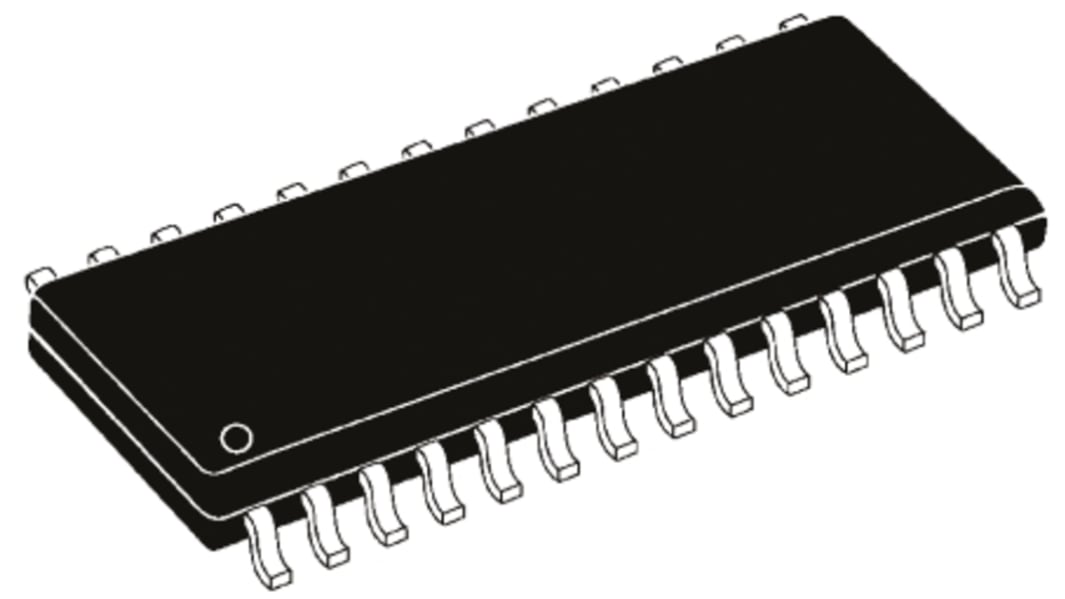

DSPIC33FJ128GP802-E/SO Microchip, 16bit Digital Signal Processor 40MHz 128 kB Flash 28-Pin SOIC
- RS Stock No.:
- 823-7843
- Mfr. Part No.:
- DSPIC33FJ128GP802-E/SO
- Brand:
- Microchip
Subtotal (1 unit)*
£5.58
(exc. VAT)
£6.70
(inc. VAT)
FREE delivery for orders over £50.00
- 121 unit(s) ready to ship
Units | Per unit |
|---|---|
| 1 - 24 | £5.58 |
| 25 - 99 | £5.30 |
| 100 + | £5.06 |
*price indicative
- RS Stock No.:
- 823-7843
- Mfr. Part No.:
- DSPIC33FJ128GP802-E/SO
- Brand:
- Microchip
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Maximum Frequency | 40MHz | |
| Data Bus Width | 16bit | |
| RAM Size | 16.384 kB | |
| Instruction Set Architecture | Harvard | |
| Program Memory Size | 128 kB | |
| Program Memory Type | Flash | |
| Mounting Type | Surface Mount | |
| Package Type | SOIC | |
| Pin Count | 28 | |
| Typical Operating Supply Voltage | 3 to 3.6 V | |
| Number of UART Channels | 2 | |
| Number of Timers | 5 | |
| Timer Resolution | 16bit | |
| Height | 2.35mm | |
| PWM Resolution | 16bit | |
| Number of Ethernet Channels | 0 | |
| Number of CAN Channels | 1 | |
| ADC Channels | 10 | |
| Number of ADC Units | 1 | |
| Maximum Operating Temperature | +125 °C | |
| Number of PWM Units | 4 | |
| Number of LIN Channels | 0 | |
| Width | 7.5mm | |
| Number of USART Channels | 0 | |
| Timers | 5 x 16 bit | |
| Dimensions | 17.9 x 7.5 x 2.35mm | |
| ADC Resolution | 12 bit, 10bit | |
| Minimum Operating Temperature | -40 °C | |
| ADCs | 1(10 x 10/12 bit) | |
| Length | 17.9mm | |
| USB Channels | 0 | |
| Number of I2C Channels | 1 | |
| Number of SPI Channels | 2 | |
| Number of PCI Channels | 0 | |
| Pulse Width Modulation | 4 x 16 bit | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Maximum Frequency 40MHz | ||
Data Bus Width 16bit | ||
RAM Size 16.384 kB | ||
Instruction Set Architecture Harvard | ||
Program Memory Size 128 kB | ||
Program Memory Type Flash | ||
Mounting Type Surface Mount | ||
Package Type SOIC | ||
Pin Count 28 | ||
Typical Operating Supply Voltage 3 to 3.6 V | ||
Number of UART Channels 2 | ||
Number of Timers 5 | ||
Timer Resolution 16bit | ||
Height 2.35mm | ||
PWM Resolution 16bit | ||
Number of Ethernet Channels 0 | ||
Number of CAN Channels 1 | ||
ADC Channels 10 | ||
Number of ADC Units 1 | ||
Maximum Operating Temperature +125 °C | ||
Number of PWM Units 4 | ||
Number of LIN Channels 0 | ||
Width 7.5mm | ||
Number of USART Channels 0 | ||
Timers 5 x 16 bit | ||
Dimensions 17.9 x 7.5 x 2.35mm | ||
ADC Resolution 12 bit, 10bit | ||
Minimum Operating Temperature -40 °C | ||
ADCs 1(10 x 10/12 bit) | ||
Length 17.9mm | ||
USB Channels 0 | ||
Number of I2C Channels 1 | ||
Number of SPI Channels 2 | ||
Number of PCI Channels 0 | ||
Pulse Width Modulation 4 x 16 bit | ||
- COO (Country of Origin):
- TH
dsPIC33F Digital Signal Controllers
dsPIC33F DSCs with Motor Control peripherals enable the design of high-performance, precision motor control systems. The dsPIC33F SMPS DSCs provide on-chip peripherals specifically designed for high-performance, digital power supplies. SMPS peripherals include high speed and high resolution PWM, fast ADC and analogue comparators.
