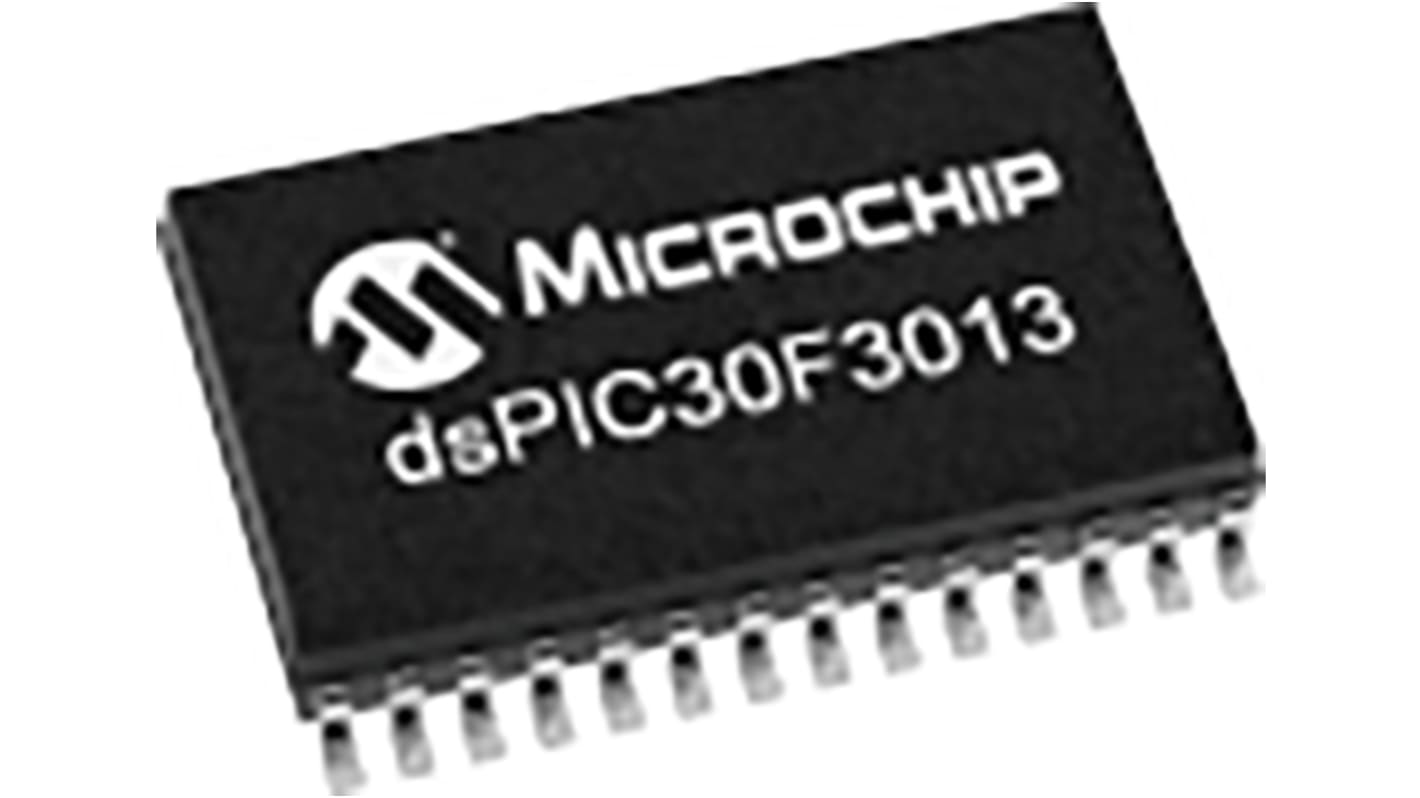

DSPIC30F3013-20I/SO Microchip DSPIC, 16bit Digital Signal Processor 40MHz 24 kB Flash 28-Pin SOIC

  • RS Stock No. 177-1577
  • Mfr. Part No. DSPIC30F3013-20I/SO
  • Brand Microchip
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

dsPIC30F Motor Control 16-bit Digital Signal Controller. Seamless migration options from this device to dsPIC33F and PIC24 devices in similar packages.

Additional Features:
High-Performance dsPIC30F core
Modified Harvard architecture
compiler optimized instruction set architecture
24-bit wide instructions, 16-bit wide data path
Up to 30 MIPS operation
DSP Engine for math intensive operations
Modulo and Bit-Reversed Addressing modes
Two 40-bit wide accumulators with optional saturation logic
17-bit x 17-bit single cycle hardware fractional/ integer multiplier
Single cycle Multiply-Accumulate (MAC) operation
40-stage Barrel Shifter
Dual data fetch
Operating Conditions
Wide operating voltage range (2.5V to 5.5V)
Industrial and Extended temperature ranges
Peripheral Features High current sink/source I/O pins: 25 mA/25 mA
Optionally pair up 16-bit timers into 32-bit timer modules
3-wire SPI™ modules (supports 4 Frame modes)
I2C™ moduleg

Specifications
Attribute Value
Maximum Frequency 40MHz
Series DSPIC
Device Million Instructions per Second 20MIPS
Data Bus Width 16bit
RAM Size 2.048 kB
Program Memory Size 24 kB
Program Memory Type Flash
Numeric and Arithmetic Format ALU
Mounting Type Surface Mount
Package Type SOIC
Pin Count 28
Typical Operating Supply Voltage 5.5 V
Number of UART Channels 2
Maximum Operating Temperature +85 °C
Number of PWM Units 1
Length 17.9mm
ADCs 1 (10 x 12 bit)
Number of Timers 2
Number of I2C Channels 1
Pulse Width Modulation 1 (2 x 16 bit)
ADC Channels 10
Number of ADC Units 1
Number of SPI Channels 1
Minimum Operating Temperature -40 °C
Dimensions 17.9 x 7.5 x 2.35mm
PWM Resolution 16bit
Timer Resolution 16 bit, 32 bit
Height 2.35mm
PWM Channels 2
Width 7.5mm
ADC Resolution 12bit
Timers 1 (1 x 32 bit), 1 (3 x 16 bit)
27 In stock - FREE next working day delivery available
Price Each (In a Tube of 27)
£ 2.916
(exc. VAT)
£ 3.499
(inc. VAT)
Units
Per unit
Per Tube*
27 - 81
£2.916
£78.732
108 +
£2.843
£76.761
