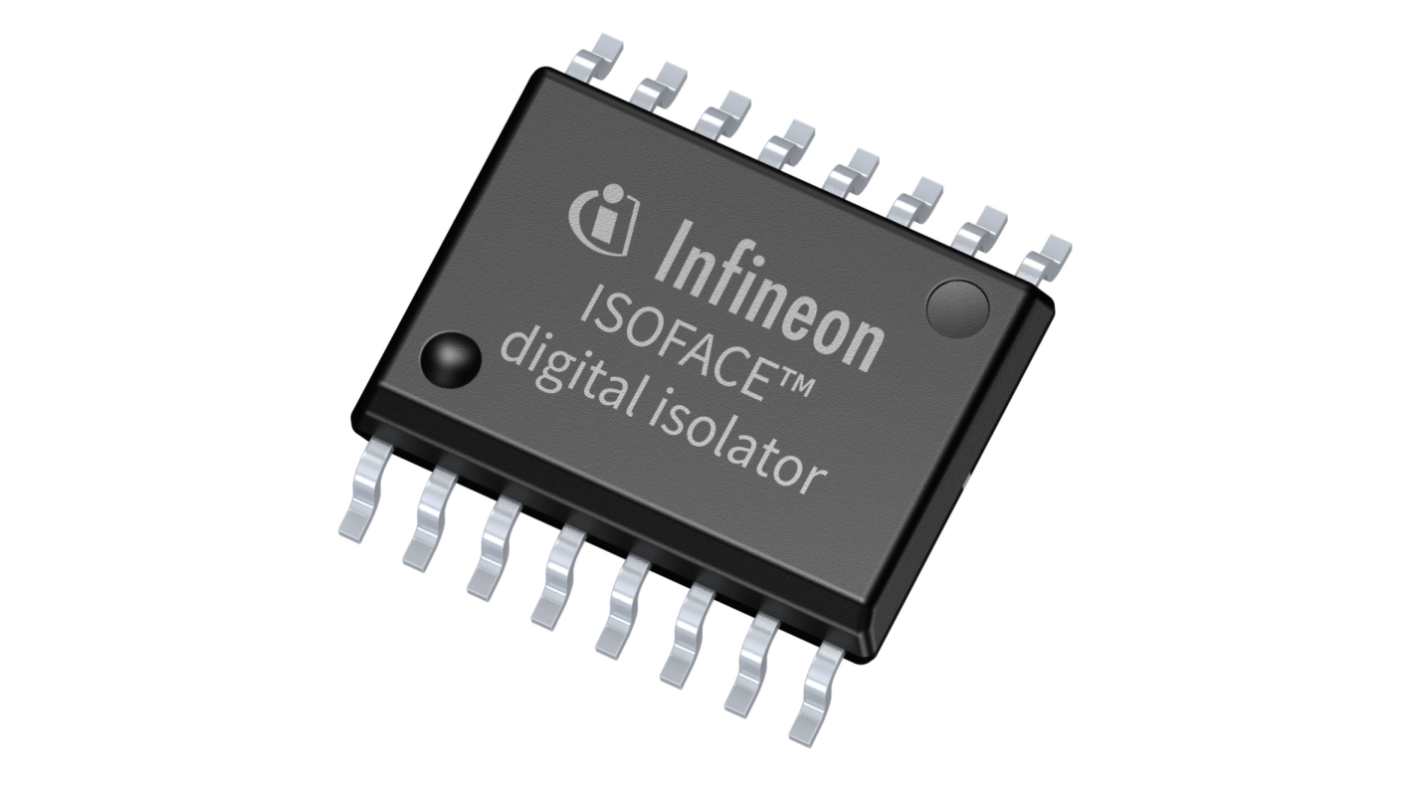

4DIR0401HXUMA1 Infineon, 4-Channel Digital Isolator 40 Mbps, 5.7 kVrms, 2.7/6.5 V, 16-Pin PG-DSO-16

View all Digital Isolator ICs
Bulk discount available

Subtotal (1 pack of 5 units)*

£5.48

(exc. VAT)

£6.575

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 1,465 unit(s), ready to ship

Units
Per unit
Per Pack*
5 - 45£1.096£5.48
50 - 95£1.04£5.20
100 - 495£0.964£4.82
500 - 995£0.888£4.44
1000 +£0.856£4.28

*price indicative

RS Stock No.:
349-187
Mfr. Part No.:
4DIR0401HXUMA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Product Type

Digital Isolator

Number of Channels

4

Maximum Data Rate

40Mbps

Package Type

PG-DSO-16

Maximum Forward Voltage

6.5V

Data Rate

40Mbps

Power Dissipation

378mW

Maximum Input Current

1.6mA

Propagation Delay Time

26ns

Isolation Voltage

5.7kVrms

Rise Time

4ns

Number of Pins

16

Supply Voltage

2.7/6.5 V

Maximum Operating Temperature

125°C

Minimum Operating Temperature

-40°C

Series

ISOFACE 4DIRx4xxH

Length

10.3mm

Depth

2.65mm

Width

10.3 mm

Standards/Approvals

IEC 62368-1, RoHS, VDE 0884-17, EN, CQC, IEC 60747-17, IEC 60601-1, UL 1577, IEC 61010-1, GB 4943.1

Automotive Standard

AEC-Q100

COO (Country of Origin):
ID
The Infineon ISOFACE 4DIRx4xxH quad channel digital isolator family supports data rates up to 40 Mbps and ensures robust data communication over a wide ambient operating temperature range and across production spread. Infineon’s robust Coreless Transformer technology provides high immunity against system noise and withstands up to 5700 Vrms isolation voltage.

Low current consumption

High CMTI of min. 100 kV/μs

Propagation delay typ 26 ns with 3 ns channel to channel mismatch

Variable CMOS input thresholds with default output high or low options

RoHS compliant
