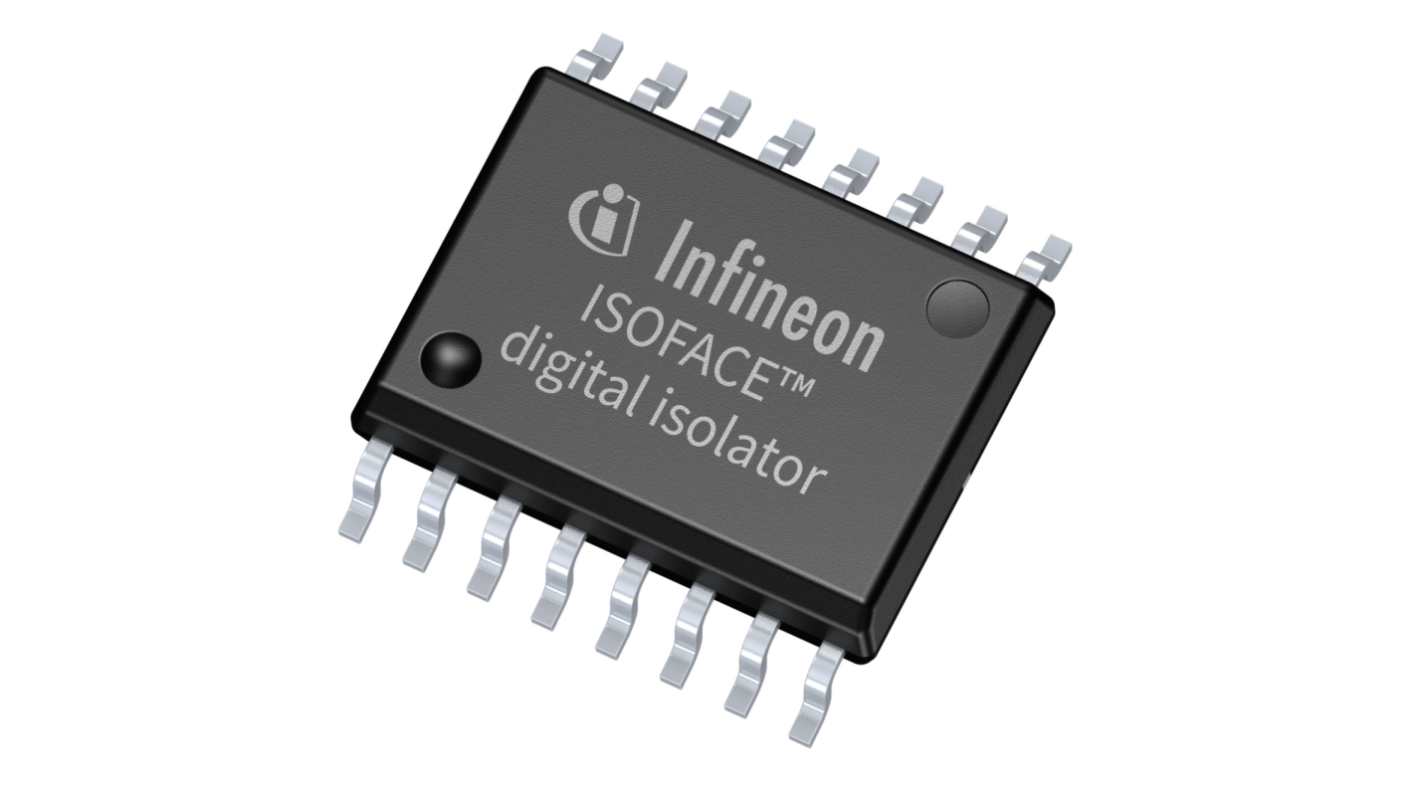

4DIR0400HXUMA1 Infineon, 4-Channel Digital Isolator 40 Mbps, 5.7 kVrms, 2.7/6.5 V, 16-Pin PG-DSO-16
- RS Stock No.:
- 349-185
- Mfr. Part No.:
- 4DIR0400HXUMA1
- Brand:
- Infineon
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
£5.48
(exc. VAT)
£6.575
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 1,485 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £1.096 | £5.48 |
| 50 - 95 | £1.04 | £5.20 |
| 100 - 495 | £0.964 | £4.82 |
| 500 - 995 | £0.888 | £4.44 |
| 1000 + | £0.856 | £4.28 |
*price indicative
- RS Stock No.:
- 349-185
- Mfr. Part No.:
- 4DIR0400HXUMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Maximum Data Rate | 40Mbps | |
| Product Type | Digital Isolator | |
| Number of Channels | 4 | |
| Package Type | PG-DSO-16 | |
| Data Rate | 40Mbps | |
| Power Dissipation | 378mW | |
| Maximum Forward Voltage | 6.5V | |
| Maximum Input Current | 1.6mA | |
| Propagation Delay Time | 26ns | |
| Isolation Voltage | 5.7kVrms | |
| Rise Time | 4ns | |
| Number of Pins | 16 | |
| Maximum Operating Temperature | 125°C | |
| Minimum Operating Temperature | -40°C | |
| Standards/Approvals | RoHS, IEC 62368-1, IEC 60601-1, IEC 60747-17, CQC, VDE 0884-17, EN, UL 1577, GB 4943.1, IEC 61010-1 | |
| Depth | 2.65mm | |
| Length | 10.3mm | |
| Series | ISOFACE 4DIRx4xxH | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Maximum Data Rate 40Mbps | ||
Product Type Digital Isolator | ||
Number of Channels 4 | ||
Package Type PG-DSO-16 | ||
Data Rate 40Mbps | ||
Power Dissipation 378mW | ||
Maximum Forward Voltage 6.5V | ||
Maximum Input Current 1.6mA | ||
Propagation Delay Time 26ns | ||
Isolation Voltage 5.7kVrms | ||
Rise Time 4ns | ||
Number of Pins 16 | ||
Maximum Operating Temperature 125°C | ||
Minimum Operating Temperature -40°C | ||
Standards/Approvals RoHS, IEC 62368-1, IEC 60601-1, IEC 60747-17, CQC, VDE 0884-17, EN, UL 1577, GB 4943.1, IEC 61010-1 | ||
Depth 2.65mm | ||
Length 10.3mm | ||
Series ISOFACE 4DIRx4xxH | ||
Automotive Standard AEC-Q100 | ||
- COO (Country of Origin):
- ID
The Infineon ISOFACE 4DIRx4xxH quad channel digital isolator family supports data rates up to 40 Mbps and ensures robust data communication over a wide ambient operating temperature range and across production spread. Infineon’s robust Coreless Transformer technology provides high immunity against system noise and withstands up to 5700 Vrms isolation voltage.
Low current consumption
High CMTI of min. 100 kV/μs
Propagation delay typ 26 ns with 3 ns channel to channel mismatch
Variable CMOS input thresholds with default output high or low options
RoHS compliant
