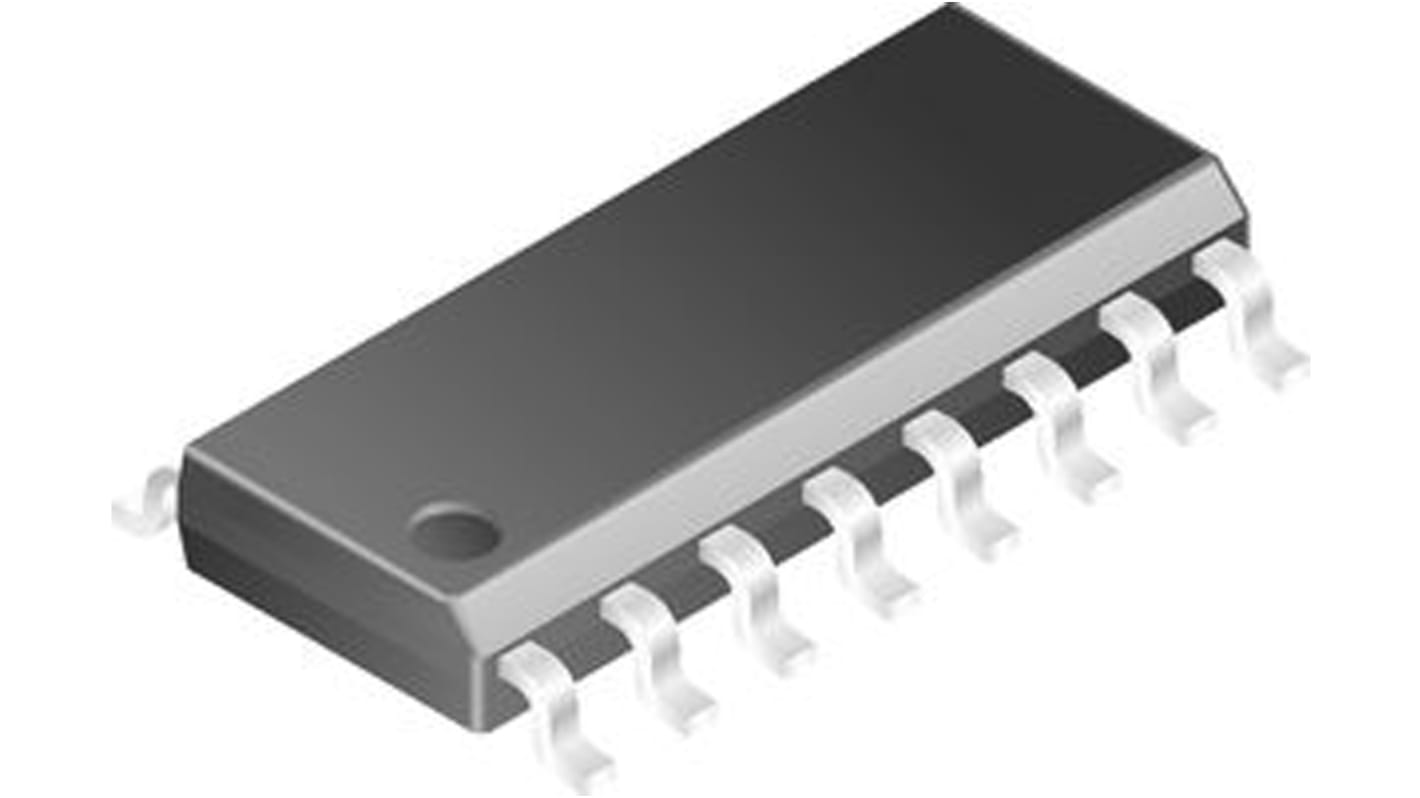

Maxim Integrated 154ns CMOS Delay Line, 16-Pin SOIC
- RS Stock No.:
- 785-8682
- Mfr. Part No.:
- DS1023S-50+
- Brand:
- Maxim Integrated
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 785-8682
- Mfr. Part No.:
- DS1023S-50+
- Brand:
- Maxim Integrated
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Maxim Integrated | |
| Logic Family | 74F04 | |
| Logic Function | Delay Line | |
| Input Signal Type | CMOS | |
| Mounting Type | Surface Mount | |
| Package Type | SOIC | |
| Pin Count | 16 | |
| Dimensions | 10.5 x 7.6 x 2.35mm | |
| Total Number of Taps | 8 | |
| Absolute Increment | 0.5ns | |
| Delay to First Tap | 0.5ns | |
| Maximum Operating Supply Voltage | 5.25 V | |
| Maximum Delay Time | 154ns | |
| Number of Independent Delay Inputs | 1 | |
| Maximum Operating Temperature | +70 °C | |
| Minimum Operating Temperature | 0 °C | |
| Minimum Operating Supply Voltage | 4.75 V | |
| Select all | ||
|---|---|---|
Brand Maxim Integrated | ||
Logic Family 74F04 | ||
Logic Function Delay Line | ||
Input Signal Type CMOS | ||
Mounting Type Surface Mount | ||
Package Type SOIC | ||
Pin Count 16 | ||
Dimensions 10.5 x 7.6 x 2.35mm | ||
Total Number of Taps 8 | ||
Absolute Increment 0.5ns | ||
Delay to First Tap 0.5ns | ||
Maximum Operating Supply Voltage 5.25 V | ||
Maximum Delay Time 154ns | ||
Number of Independent Delay Inputs 1 | ||
Maximum Operating Temperature +70 °C | ||
Minimum Operating Temperature 0 °C | ||
Minimum Operating Supply Voltage 4.75 V | ||
Delay Lines, Maxim Integrated Products
Note
Please note that any defect or non – conformance of this product must be discovered and reported to RS within 20 days of purchase.
