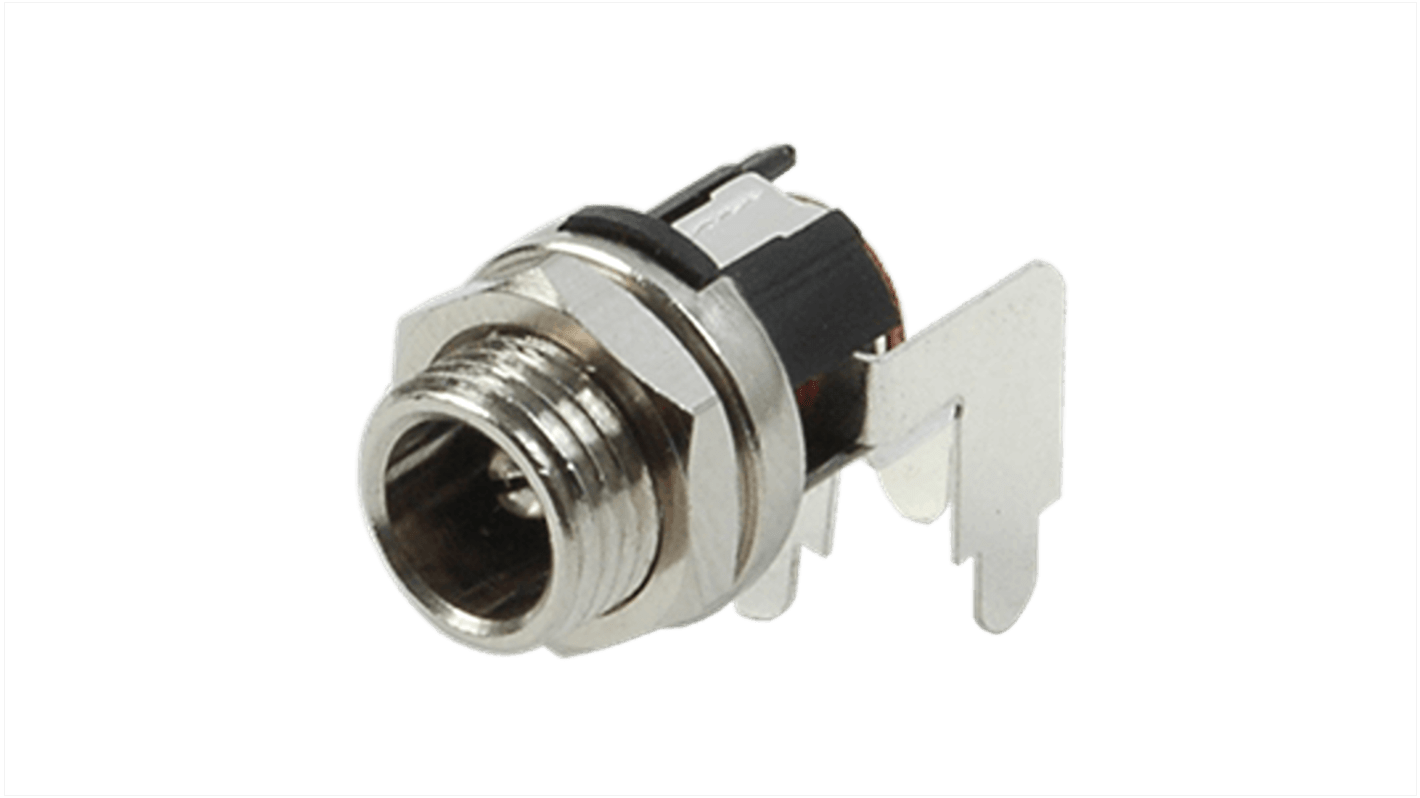

Same Sky, PJ-066X Horizontal Jack 5A, 500V, Panel Mount, length 19.9 mm, Nickel Silver
- RS Stock No.:
- 259-6532
- Mfr. Part No.:
- PJ-066B
- Brand:
- Same Sky
Bulk discount available
Subtotal (1 pack of 2 units)*
£4.66
(exc. VAT)
£5.60
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 8 | £2.33 | £4.66 |
| 10 - 18 | £2.215 | £4.43 |
| 20 - 48 | £2.10 | £4.20 |
| 50 - 98 | £2.00 | £4.00 |
| 100 + | £1.895 | £3.79 |
*price indicative
- RS Stock No.:
- 259-6532
- Mfr. Part No.:
- PJ-066B
- Brand:
- Same Sky
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Same Sky | |
| Product Type | DC Power Connector | |
| DC Power Connector Type | Jack | |
| Inside Diameter | 2.5mm | |
| Current | 5A | |
| Orientation | Horizontal | |
| Outside Diameter | 5.7mm | |
| Voltage | 500V | |
| Length | 19.9mm | |
| Connector Gender | Male | |
| Mount Type | Panel Mount | |
| Pin Diameter | 2.5mm | |
| Contact Plating | Nickel Silver | |
| Contact Material | Brass, Copper | |
| Series | PJ-066X | |
| Contact Gender | Male | |
| Standards/Approvals | UL 94 V-0 | |
| Width | 11mm | |
| Select all | ||
|---|---|---|
Brand Same Sky | ||
Product Type DC Power Connector | ||
DC Power Connector Type Jack | ||
Inside Diameter 2.5mm | ||
Current 5A | ||
Orientation Horizontal | ||
Outside Diameter 5.7mm | ||
Voltage 500V | ||
Length 19.9mm | ||
Connector Gender Male | ||
Mount Type Panel Mount | ||
Pin Diameter 2.5mm | ||
Contact Plating Nickel Silver | ||
Contact Material Brass, Copper | ||
Series PJ-066X | ||
Contact Gender Male | ||
Standards/Approvals UL 94 V-0 | ||
Width 11mm | ||
- COO (Country of Origin):
- CN
The CUI devices jack connector
comes with a horizontal body orientation. The mounting type of the product is panel mount and the size is 2.5 x 5.5 mm. The product has power jack.
Insulation resistance at 500 Vdc is 100 MΩ
Flammability rating IS UL94V-0
Insertion withdrawn force is 0.3 kg - 3 kg
