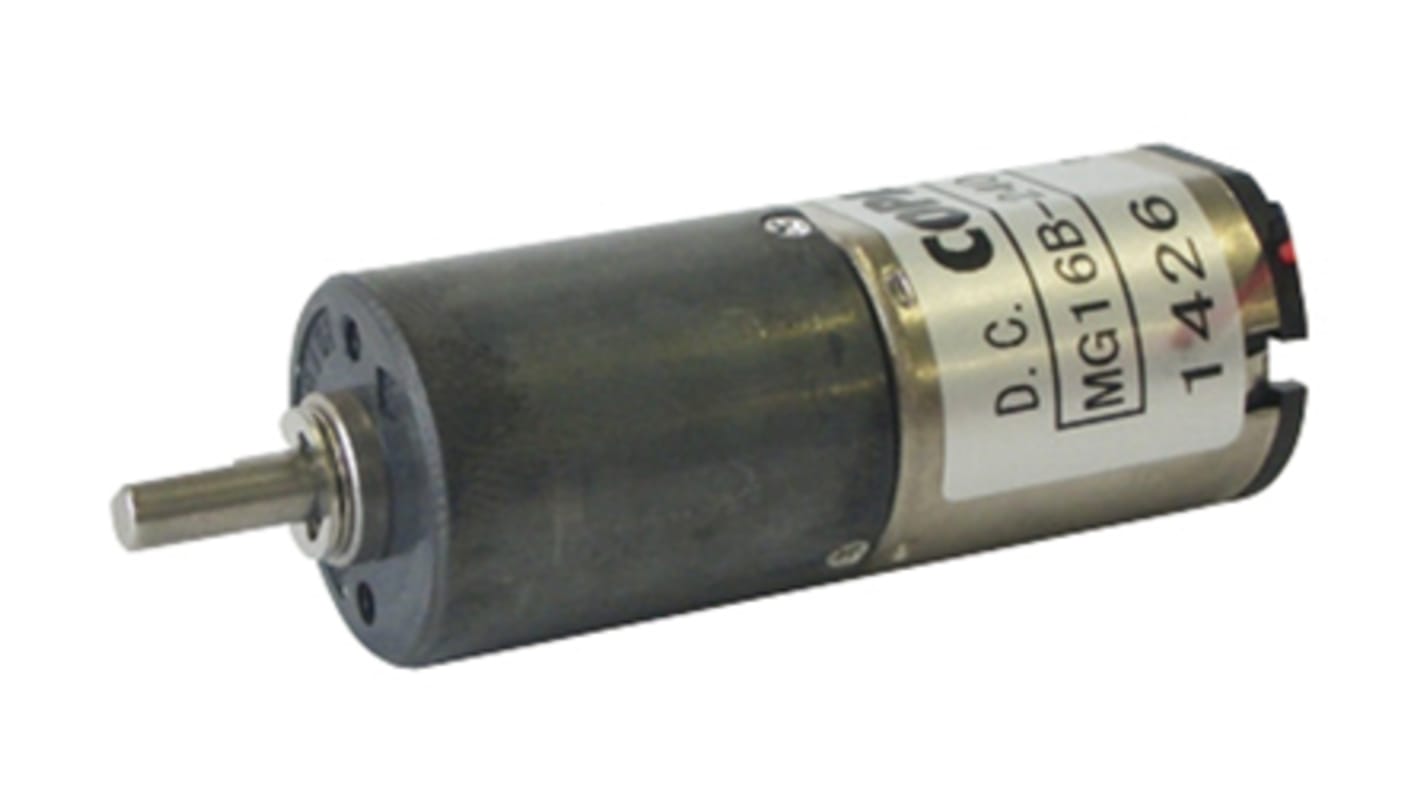

Nidec Components Geared DC Geared Motor, 6 V dc, 90 mNm, 100 rpm, 3mm Shaft Diameter
- RS Stock No.:
- 921-1417
- Mfr. Part No.:
- MG16B-120-AA-00
- Brand:
- Nidec Components
1 In stock - FREE next working day delivery available
Price Each
£32.77
(exc. VAT)
£39.32
(inc. VAT)
Units | Per unit |
---|---|
1 + | £32.77 |
- RS Stock No.:
- 921-1417
- Mfr. Part No.:
- MG16B-120-AA-00
- Brand:
- Nidec Components
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Copal Electronics MG16B Series Geared Motors
Copal Electronics MG16B Series DC geared motors fitted with high torque and lower speed rotation.
Bi-directional application
Resin gears for quiet operation
Sleeve bearings
Metal casing
RoHS compliant
Resin gears for quiet operation
Sleeve bearings
Metal casing
RoHS compliant
DC Geared Motors
Specifications
Attribute | Value |
---|---|
Supply Voltage | 6 V dc |
DC Motor Type | Geared |
Output Speed | 100 rpm |
Shaft Diameter | 3mm |
Maximum Output Torque | 90 mNm |
Gear Ratio | 120:1 |
Dimensions | 16 (Dia.) x 48 mm |
Current Rating | 400 mA |
Width | 16 (Dia.)mm |
Depth | 48mm |
Series | MG16B |
