Crouzet Brushed Geared DC Geared Motor, 3 V, 24V, 5 Nm, 103rpm, 8 mm Shaft Diameter
- RS Stock No.:
- 178-5140
- Mfr. Part No.:
- 82867009
- Brand:
- Crouzet

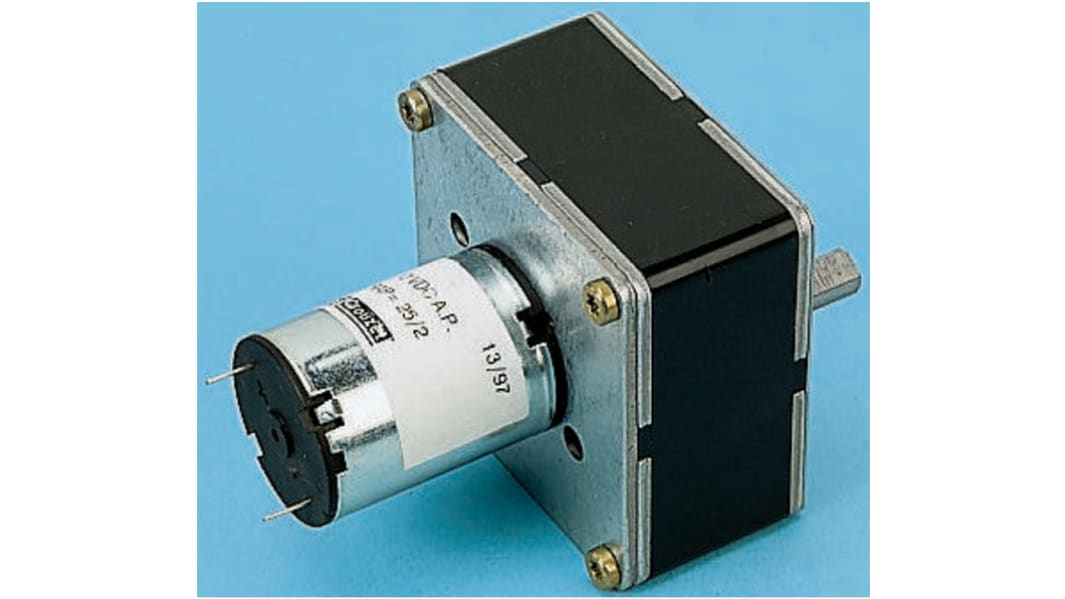

Image representative of range
Subtotal (1 unit)*
£241.94
(exc. VAT)
£290.33
(inc. VAT)
FREE delivery for orders over £60.00
Limited stock
- Plus 9 left, shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £241.94 |
*price indicative
- RS Stock No.:
- 178-5140
- Mfr. Part No.:
- 82867009
- Brand:
- Crouzet
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Crouzet | |
| Product Type | DC Geared Motor | |
| Supply Voltage | 24V | |
| Sub Type | Brushed Geared | |
| Power Rating | 3V | |
| Output Speed | 103rpm | |
| Shaft Diameter | 8mm | |
| Maximum Output Torque | 5Nm | |
| Mount Type | Screw | |
| Gearhead Type | Spur | |
| Material | Metal | |
| Length | 65mm | |
| Shaft Length | 15mm | |
| Width | 65mm | |
| Standards/Approvals | NF C 20-120 | |
| Depth | 79.8mm | |
| Core Construction | Iron Core | |
| Series | 828670 | |
| Select all | ||
|---|---|---|
Brand Crouzet | ||
Product Type DC Geared Motor | ||
Supply Voltage 24V | ||
Sub Type Brushed Geared | ||
Power Rating 3V | ||
Output Speed 103rpm | ||
Shaft Diameter 8mm | ||
Maximum Output Torque 5Nm | ||
Mount Type Screw | ||
Gearhead Type Spur | ||
Material Metal | ||
Length 65mm | ||
Shaft Length 15mm | ||
Width 65mm | ||
Standards/Approvals NF C 20-120 | ||
Depth 79.8mm | ||
Core Construction Iron Core | ||
Series 828670 | ||
Geared Motors 3 W, 5 Nm
Range of geared motors with RPT5 type direct current motors.
Connected via 2.8 mm axial terminals.
