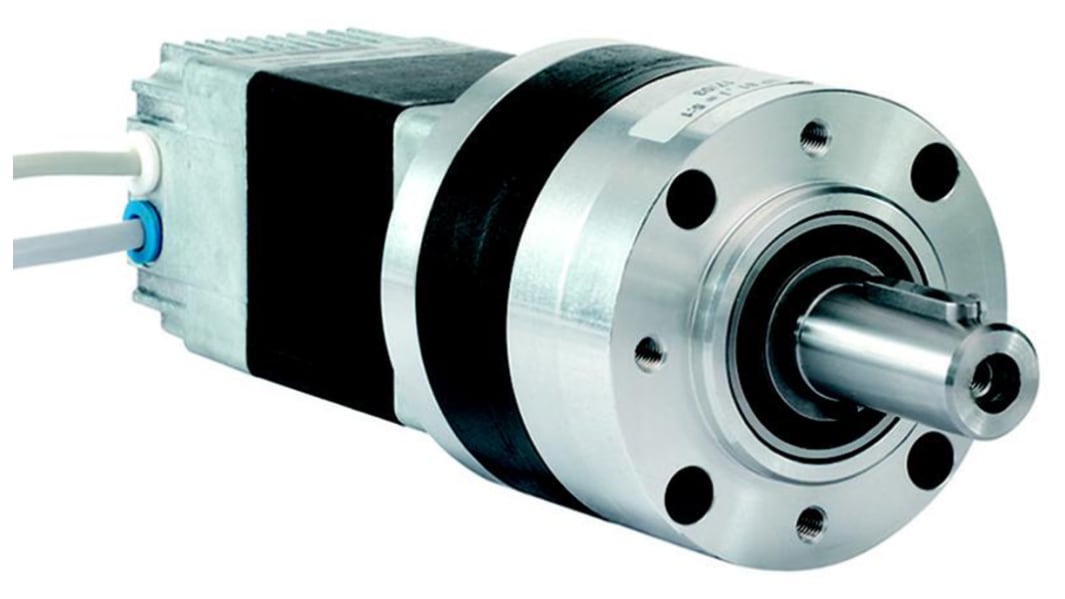

Crouzet Brushless Geared DC Geared Motor, 80 W, 24V, 1.1 Nm, 627rpm, 6 mm Shaft Diameter
- RS Stock No.:
- 122-0054
- Mfr. Part No.:
- 80189704
- Brand:
- Crouzet
Subtotal (1 unit)*
£866.10
(exc. VAT)
£1,039.32
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 4 unit(s) shipping from 17 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £866.10 |
*price indicative
- RS Stock No.:
- 122-0054
- Mfr. Part No.:
- 80189704
- Brand:
- Crouzet
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Crouzet | |
| Product Type | DC Geared Motor | |
| Supply Voltage | 24V | |
| Sub Type | Brushless Geared | |
| Power Rating | 80W | |
| Output Speed | 627rpm | |
| Shaft Diameter | 6mm | |
| Maximum Output Torque | 1.1Nm | |
| Gearhead Type | Planetary | |
| Gear Ratio | 5:1 | |
| Material | Steel | |
| Length | 182mm | |
| Shaft Length | 28mm | |
| Width | 81mm | |
| Depth | 231mm | |
| Standards/Approvals | DIN 6885 A | |
| Series | 801897 TNI20 | |
| Select all | ||
|---|---|---|
Brand Crouzet | ||
Product Type DC Geared Motor | ||
Supply Voltage 24V | ||
Sub Type Brushless Geared | ||
Power Rating 80W | ||
Output Speed 627rpm | ||
Shaft Diameter 6mm | ||
Maximum Output Torque 1.1Nm | ||
Gearhead Type Planetary | ||
Gear Ratio 5:1 | ||
Material Steel | ||
Length 182mm | ||
Shaft Length 28mm | ||
Width 81mm | ||
Depth 231mm | ||
Standards/Approvals DIN 6885 A | ||
Series 801897 TNI20 | ||
- COO (Country of Origin):
- FR
MotoMate with Planetary Gearbox
Concentric Output Shaft
High Reduction Ratios
High Efficiency
Reversible Movement
Ideal for high-torque applications
