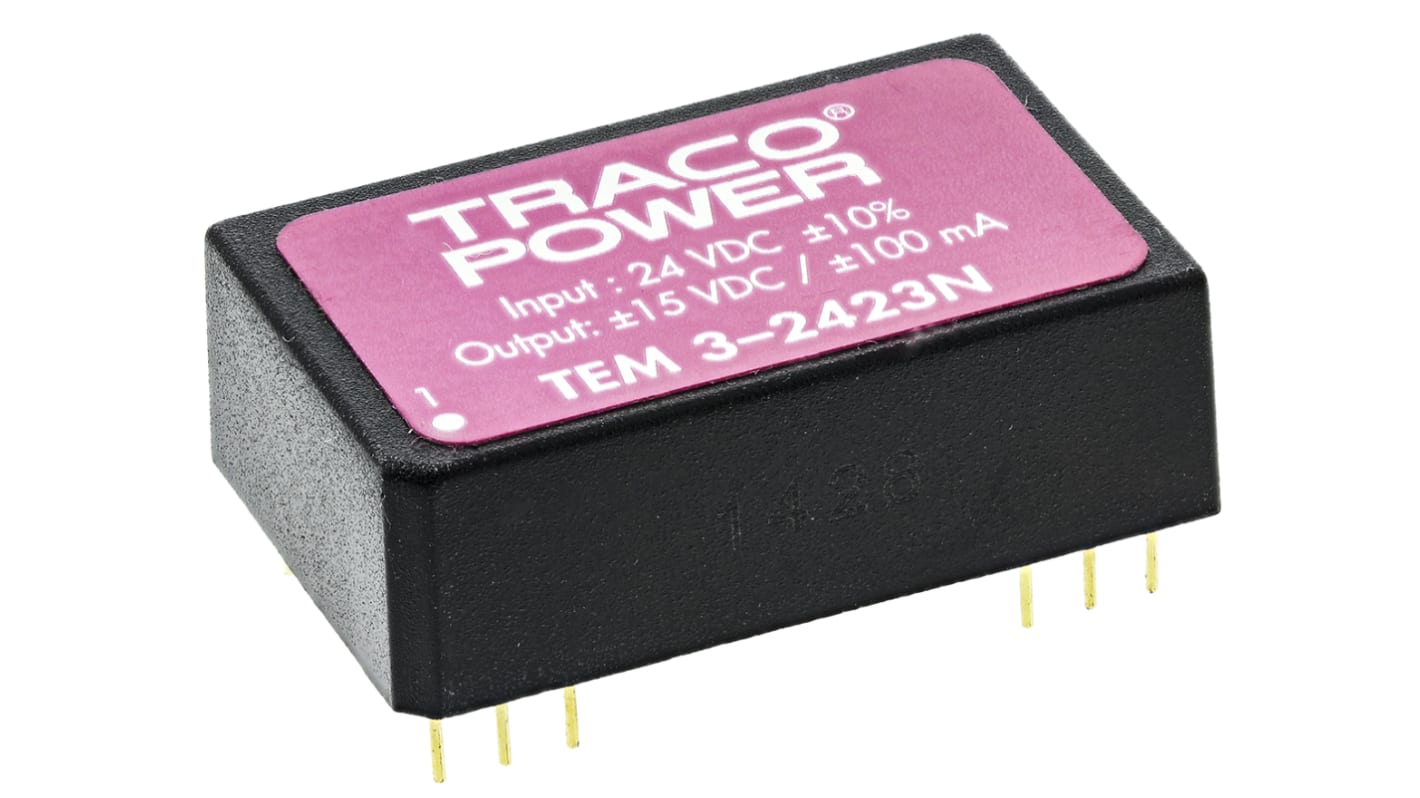

TRACOPOWER TEM 3N DC-DC Converter, ±15V dc/ ±100mA Output, 21.6 → 26.4 V dc Input, 3W, Through Hole, +85°C Max

RS Stock No.:: 788-0664
Mfr. Part No.:: TEM 3-2423N
Brand:: TRACOPOWER

TRACOPOWER TEM 3N DC-DC Converter, ±15V dc/ ±100mA Output, 21.6 → 26.4 V dc Input, 3W, Through Hole, +85°C Max

Available to back order for despatch when stock is available

Price Each

£12.25

(exc. VAT)

£14.70

(inc. VAT)

Units	Per unit
1 - 4	£12.25
5 - 9	£11.88
10 - 24	£11.52
25 - 49	£11.03
50 +	£10.54

RS Stock No.:: 788-0664
Mfr. Part No.:: TEM 3-2423N
Brand:: TRACOPOWER

Technical Reference

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

Traco Power TEM 3N Series DC-DC Converter, 82% Efficiency, Through Hole Mount - TEM 3-2423N

This high efficiency DC-DC converter from Traco Power, part of the TEM 3N series, offers a cost effective solution for industrial and consumer electronics applications. With its isolated design, tight output regulation, and low output noise, this converter ensures reliable performance in a compact DIP 24 package. operating within a wide temperature range from 40°C to +85°C, this converter is ideal for automation, electronics, electrical, and mechanical industries.

Features & Benefits

• Dual output with ±15 V dc output voltage
• 82% efficiency for optimal energy utilization
• Isolated design with 1.5 kV dc isolation voltage
• Through hole mounting for secure installation
• 3W power rating suitable for various applications

Applications

• Designed for automation systems requiring stable power supply
• Ideal for electronic devices operating in harsh environments
• Suitable for industrial machinery requiring dual output voltage
• Perfect for electrical control systems with specific power requirements

Can it provide stable power output for industrial automation systems?

Yes, this DC-DC converter offers tight output regulation and dual outputs, making it perfect for industrial automation applications.

Will it suit electronic devices operating in extreme temperatures?

Yes, with an operating temperature range of -40°C to +85°C, this converter is ideal for harsh environmental conditions.

Is it suitable for use in electrical control systems?

Yes, this converter is designed to meet the power requirements of various electrical control systems with its dual output and high efficiency design.

Can it be mounted securely in different mechanical setups?

Yes, with its through hole mounting feature, this converter ensures a reliable and stable installation in any mechanical setup.

Specifications

Attribute	Value
Output Voltage	±15V dc
Input Voltage Range	21.6 → 26.4 V dc
Power Rating	3W
Input Voltage Nominal	24 V dc
Output Current	±100mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	2
Package	DIP 24
Isolation Voltage	1.5kV dc
Length	31.8mm
Depth	10.2mm
Width	20.32mm
Series	TEM 3N
Load Regulation	±3%
Maximum Temperature	+85°C
Efficiency	82%
Minimum Temperature	-40°C
Standards Met	UL 60950-1
