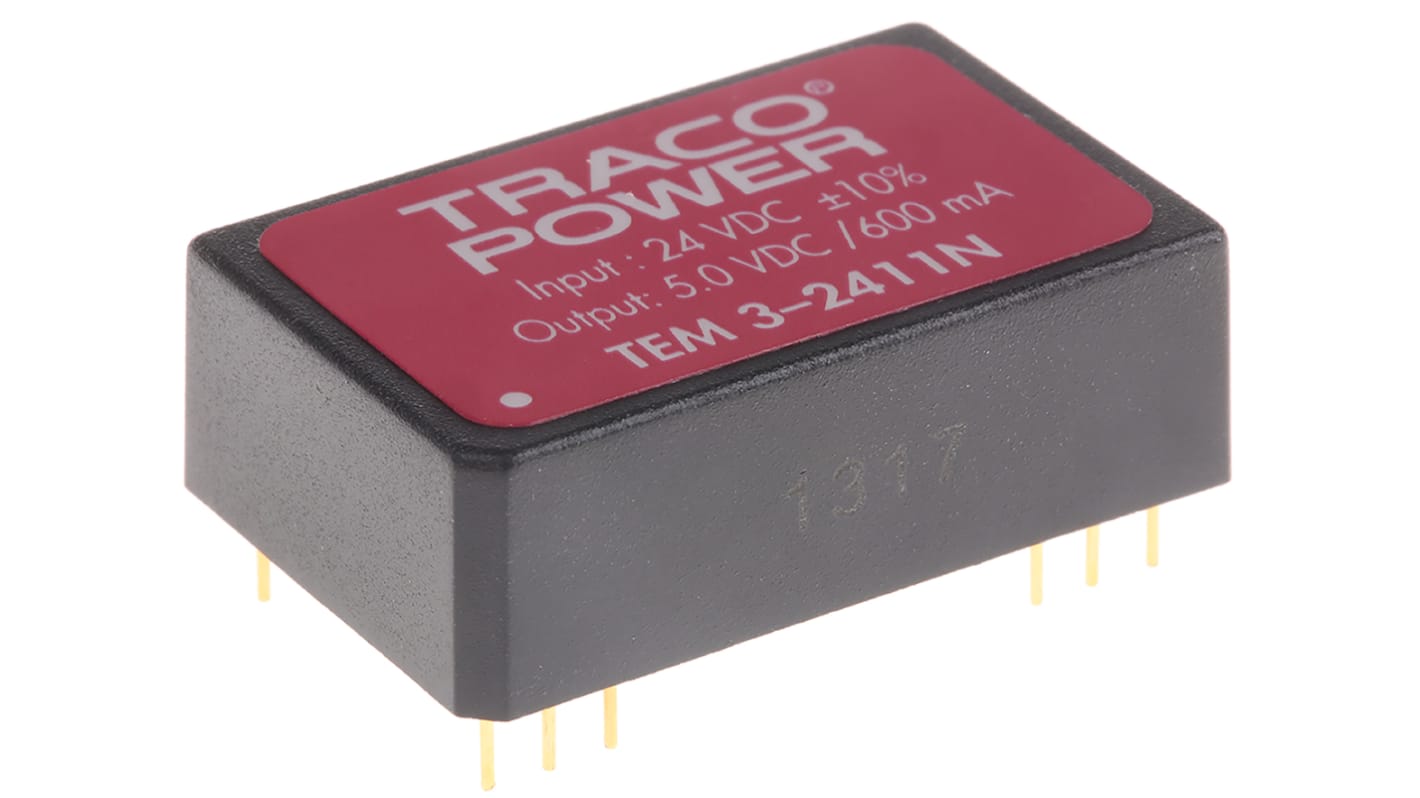

TRACOPOWER TEM 3N DC-DC Converter, 5V dc/ 600mA Output, 21.6 → 26.4 V dc Input, 3W, PCB Mount, +85°C Max Temp

RS Stock No.:: 788-0654
Mfr. Part No.:: TEM 3-2411N
Brand:: TRACOPOWER

Technical Reference

TRACOPOWER TEM 3N DC-DC Converter, 5V dc/ 600mA Output, 21.6 → 26.4 V dc Input, 3W, PCB Mount, +85°C Max Temp

View this category

Price Each

£11.36

(exc. VAT)

£13.63

(inc. VAT)

Available to back order for despatch when stock is available

Units	Per unit
1 - 4	£11.36
5 - 9	£11.02
10 - 24	£10.68
25 - 49	£10.22
50 +	£9.77

RS Stock No.:: 788-0654
Mfr. Part No.:: TEM 3-2411N
Brand:: TRACOPOWER

COO (Country of Origin):: TW

Traco 3W DIP Fully Regulated Isolated DC-DC Converter - TEM 3N Series

The Traco Power TEM 3N series is a range of isolated DC/DC converters in a DIP-24 package.
The offer tight output regulation and very low output noise. The TEM 3N series provides a cost effective solution for many industrial or consumer electronics applications.

Cost optimized design in DIP-24 package
Fully regulated output
Output ripple & noise 30 mVpp
Short circuit protection
Operating temperature range –40C to +75C at full load
I/O isolation 1’000 VDC
Input filter meet EN 55022, class A
No minimum load required
Industry standard pin out
3-year product warranty

Standards

EN 60950-1, UL60950-1

Approvals

CSA File No. 226037

TRACOPOWER TEM 3N Series DC-DC Converter, 75% Efficiency, 24 V DC Nominal Input Voltage - TEM 3-2411N

This DC-DC Converter manufactured by TRACOPOWER is a 3W power rating device with high efficiency and isolation voltage of 1.5kV. It provides a stable and regulated output voltage suitable for various industrial and consumer electronics applications.

Features & Benefits

• Offers a regulated output voltage of 5V DC with a maximum output current of 600mA
• Provides tight output regulation and low output noise for high performance
• Isolated design with an isolation voltage of 1.5kV DC for added safety
• Operates efficiently with a load regulation of ±0.5%
• Suitable for a wide input voltage range of 21.6 to 26.4 V DC
• Features a through-hole mounting type for easy installation
• Comes in a compact DIP 24 package for space-saving design

Applications

• This cable is suitable for integration into industrial automation systems, ensuring reliable operation in manufacturing environments
• It meets the stringent requirements of power distribution units, providing efficient and durable electrical connectivity
• Ideal for use in telecommunication equipment, ensuring secure and stable signal transmission over extended distances
• Designed to withstand the rigors of automotive electronics, offering dependable performance in vehicle electrical systems

Can it handle a wide input voltage range?

Yes, this DC-DC Converter can operate with an input voltage range of 21.6 to 26.4 V DC.

Will it provide a stable output voltage?

Yes, this converter offers a regulated output voltage of 5V DC with tight regulation.

Is it suitable for safety-critical applications?

Yes, the isolated design and 1.5kV isolation voltage make it ideal for safety-critical applications.

Can it be used in harsh environmental conditions?

Yes, this converter can operate in temperatures ranging from -40°C to +85°C.

Does it require a minimum load for operation?

No, this DC-DC Converter does not require a minimum load for operation.

Attribute	Value
Output Voltage	5V dc
Input Voltage Range	21.6 → 26.4 V dc
Power Rating	3W
Input Voltage Nominal	24 V dc
Output Current	600mA
Mounting Type	PCB Mount
Isolated	Yes
Number of Outputs	1
Package	DIP 24
Isolation Voltage	1.5kV dc
Width	20.3mm
Length	31.8mm
Depth	10.2mm
Series	TEM 3N
Load Regulation	±0.5%
Efficiency	75%
Minimum Temperature	-40°C
Maximum Temperature	+85°C
Standards Met	CSA-C22.2 No. 60950-1, EN 60950, IEC, IEC/EN 60950-1, UL, UL 60950-1
