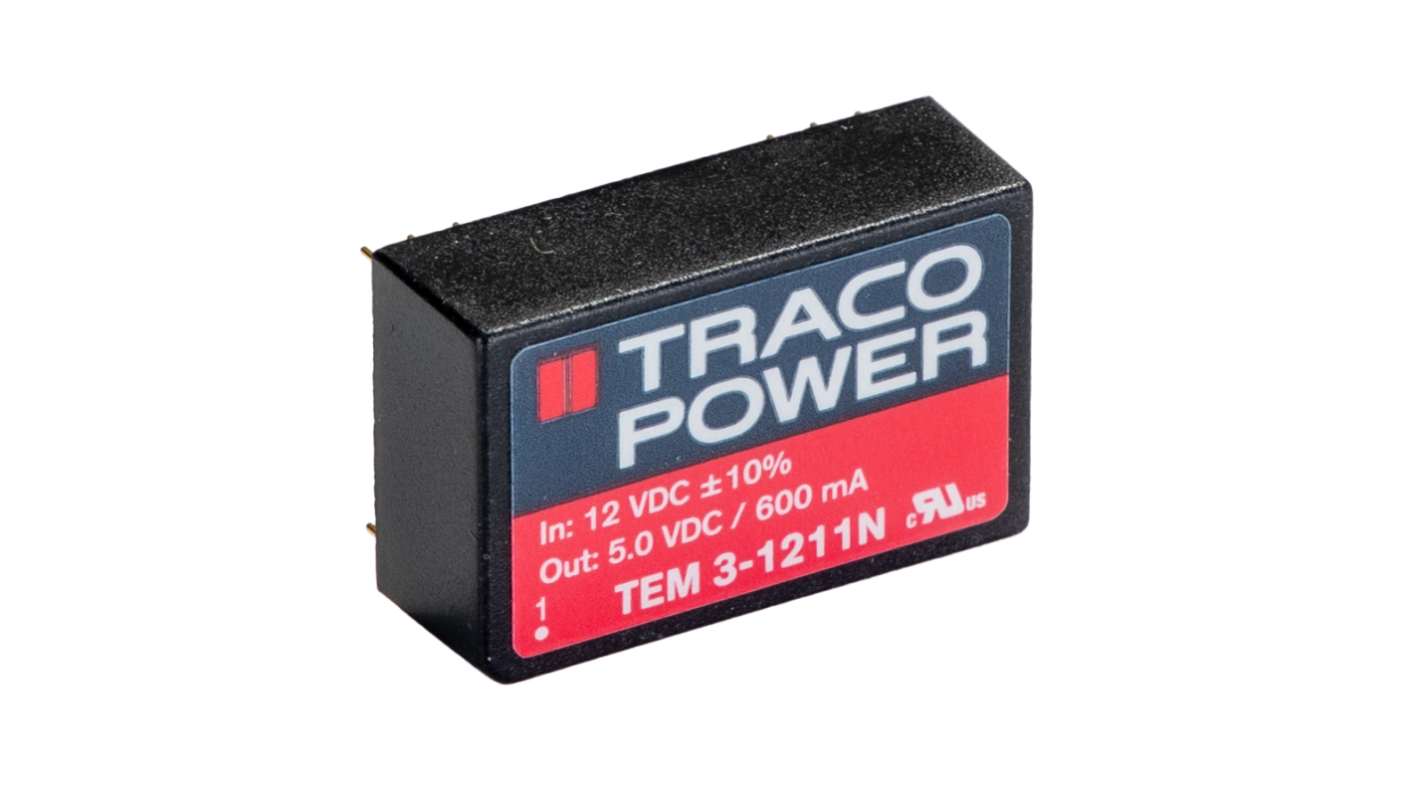

TRACOPOWER TEM 3N DC-DC Converter, 5V dc/ 600mA Output, 10.8 → 13.2 V dc Input, 3W, Through Hole, +85°C Max Temp

RS Stock No.:: 788-0645
Mfr. Part No.:: TEM 3-1211N
Brand:: TRACOPOWER

TRACOPOWER TEM 3N DC-DC Converter, 5V dc/ 600mA Output, 10.8 → 13.2 V dc Input, 3W, Through Hole, +85°C Max Temp

1 In stock - FREE next working day delivery available

4 available from Europe for delivery within 2 working day(s).

Price Each

£10.44

(exc. VAT)

£12.53

(inc. VAT)

Units	Per unit
1 - 4	£10.44
5 - 9	£10.13
10 - 24	£9.81
25 - 49	£9.40
50 +	£8.98

RS Stock No.:: 788-0645
Mfr. Part No.:: TEM 3-1211N
Brand:: TRACOPOWER

Technical Reference

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

Traco 3W DIP Fully Regulated Isolated DC-DC Converter - TEM 3N Series

The Traco Power TEM 3N series is a range of isolated DC/DC converters in a DIP-24 package.
The offer tight output regulation and very low output noise. The TEM 3N series provides a cost effective solution for many industrial or consumer electronics applications.

Cost optimized design in DIP-24 package
Fully regulated output
Output ripple & noise 30 mVpp
Short circuit protection
Operating temperature range –40C to +75C at full load
I/O isolation 1’000 VDC
Input filter meet EN 55022, class A
No minimum load required
Industry standard pin out
3-year product warranty

Standards

EN 60950-1, UL60950-1

Approvals

CSA File No. 226037

Specifications

Attribute	Value
Output Voltage	5V dc
Input Voltage Range	10.8 → 13.2 V dc
Power Rating	3W
Input Voltage Nominal	12 V dc
Output Current	600mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	DIP 24
Isolation Voltage	1.5kV dc
Length	32mm
Depth	10mm
Series	TEM 3N
Load Regulation	±0.5%
Minimum Temperature	-40°C
Efficiency	74%
Maximum Temperature	+85°C
