TRACOPOWER DC/DC Converter, 15V/ 13000 mA, 75V Input, 33V Input 195 W, Through Hole, 75 °C Max Temp -40 °C Min Temp Half
- RS Stock No.:
- 781-6981
- Mfr. Part No.:
- TEP 160-4813
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
£190.72
(exc. VAT)
£228.86
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 28 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £190.72 |
| 5 - 9 | £184.99 |
| 10 - 24 | £179.27 |
| 25 - 49 | £171.64 |
| 50 + | £164.02 |
*price indicative
- RS Stock No.:
- 781-6981
- Mfr. Part No.:
- TEP 160-4813
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage 1 | 15V | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 33V | |
| Maximum Input Voltage | 75V | |
| Output Current 1 | 13000mA | |
| Mount Type | Through Hole | |
| Input Ratio | 2:1 | |
| MTBF | 495000h | |
| Number of Outputs | 5 | |
| Isolation Voltage | 2.25kV | |
| Package Type | Half Brick | |
| Maximum Output Power | 195W | |
| Standards/Approvals | No | |
| Length | 61mm | |
| Depth | 12.7mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 75°C | |
| Efficiency | 93% | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 1 15V | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 33V | ||
Maximum Input Voltage 75V | ||
Output Current 1 13000mA | ||
Mount Type Through Hole | ||
Input Ratio 2:1 | ||
MTBF 495000h | ||
Number of Outputs 5 | ||
Isolation Voltage 2.25kV | ||
Package Type Half Brick | ||
Maximum Output Power 195W | ||
Standards/Approvals No | ||
Length 61mm | ||
Depth 12.7mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 75°C | ||
Efficiency 93% | ||

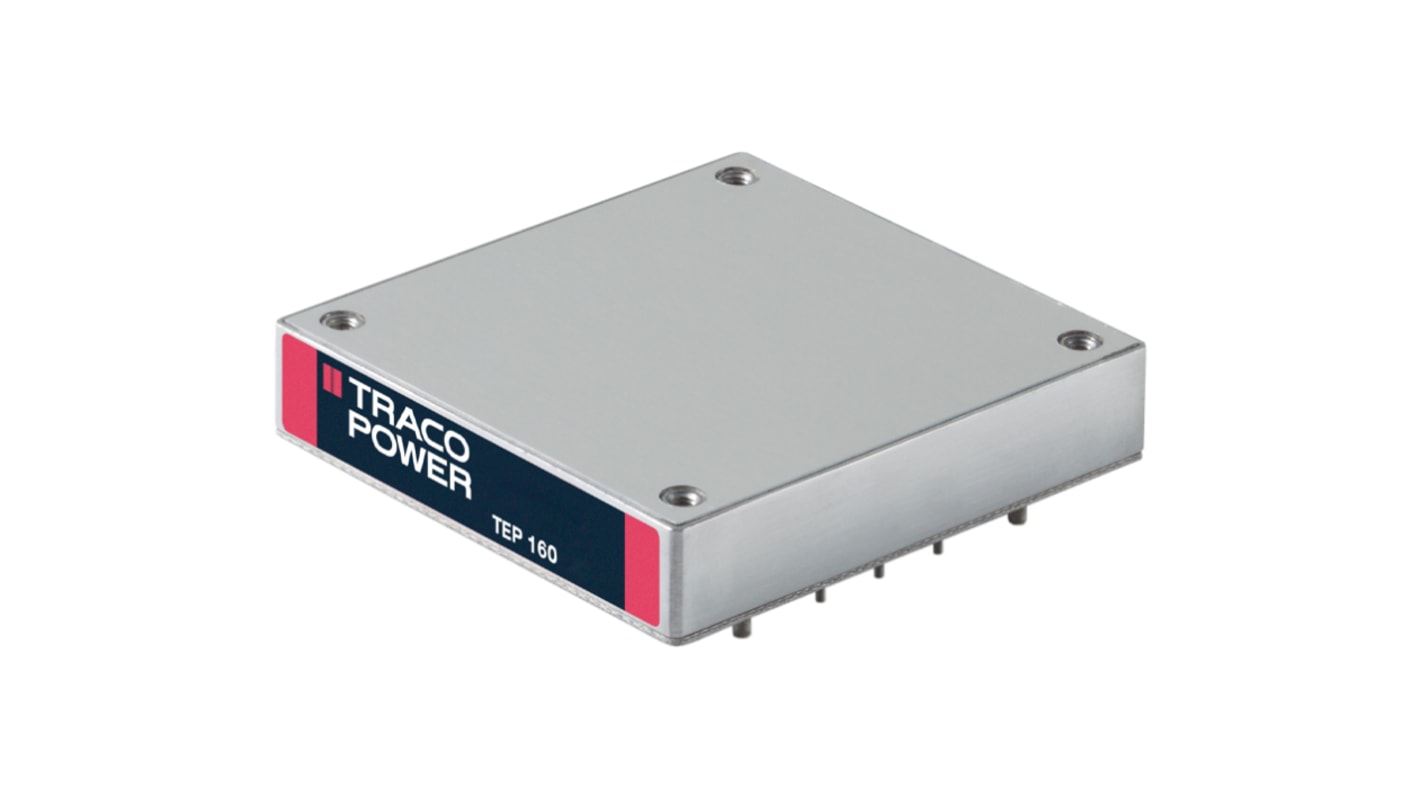

Traco 156W Isolated PCB Mount Railway Compliant DC-DC Converter - TEP-160
The Tracopower TEP 160 Series is a family of isolated, high performance, DC-DC converter modules with wide 2:1 input voltage ranges, which come in a rugged, sealed industry stan¬dard half brick package.
The very high efficiency of the TEP 160 allows full power operation without forced air cooling at 25C, The temperature of this DC-DC converter can be increased to 40C with optional mounted heatsink, or up to 60C when mounted on an iron base plate. The very wide input voltage range and reverse input voltage protection make the TEP 160 a good solution for battery operated systems. Typical applications are in telecom/datacom, industry control and railway systems for on board power distribution.
Compact metal package
Wide 2:1 input voltage
Very high efficiency up to 93%
No minimum load
Soft start
Ajustable output voltage +10/-20%
Sense line
Remote On/Off input
Reverse input voltage protection
Over temperature protection
3-year product warranty
Traco - 75W to 240W - TEP Series
Standards
UL 60950-1, IEC 60950-1, EN 60950-1
