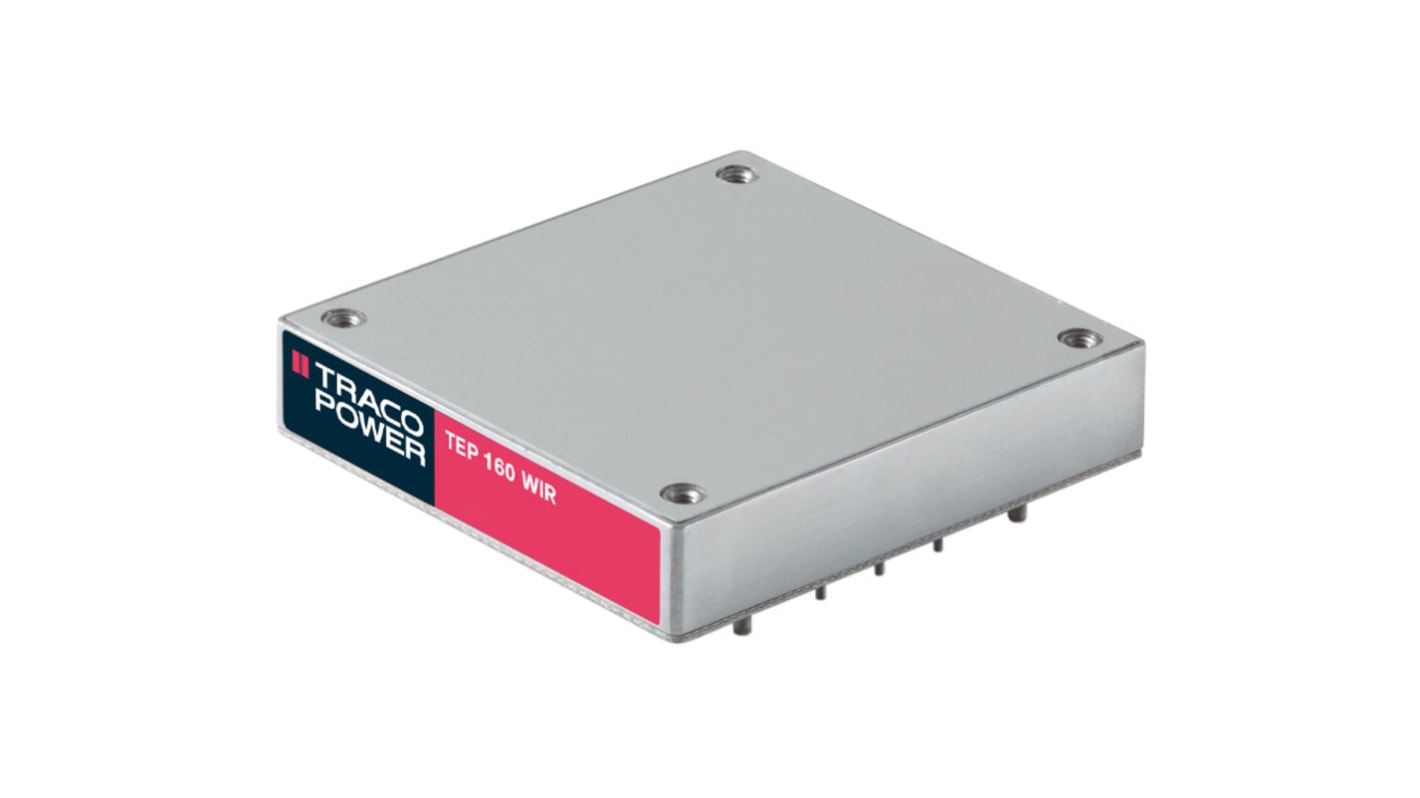

TRACOPOWER TEP 160WIR DC-DC Converter, 48V dc/ 3.8A Output, 43 → 160 V dc Input, 142 → 182W, Through
- RS Stock No.:
- 754-1435
- Mfr. Part No.:
- TEP 160-7218WIR
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
£223.19
(exc. VAT)
£267.83
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 19 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £223.19 |
| 5 - 9 | £216.49 |
| 10 - 24 | £209.80 |
| 25 - 49 | £200.87 |
| 50 + | £191.94 |
*price indicative
- RS Stock No.:
- 754-1435
- Mfr. Part No.:
- TEP 160-7218WIR
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 48V dc | |
| Input Voltage Range | 43 → 160 V dc | |
| Power Rating | 142 → 182W | |
| Input Voltage Nominal | 72 V dc | |
| Output Current | 3.8A | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Isolation Voltage | 2.25kV dc | |
| Length | 61mm | |
| Depth | 12.7mm | |
| Railway Approved | Yes | |
| Series | TEP 160WIR | |
| Load Regulation | ±0.2% | |
| Maximum Temperature | +75°C | |
| Minimum Temperature | -40°C | |
| Medical Approved | No | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 48V dc | ||
Input Voltage Range 43 → 160 V dc | ||
Power Rating 142 → 182W | ||
Input Voltage Nominal 72 V dc | ||
Output Current 3.8A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Isolation Voltage 2.25kV dc | ||
Length 61mm | ||
Depth 12.7mm | ||
Railway Approved Yes | ||
Series TEP 160WIR | ||
Load Regulation ±0.2% | ||
Maximum Temperature +75°C | ||
Minimum Temperature -40°C | ||
Medical Approved No | ||
- COO (Country of Origin):
- TW
Traco 142-182W Isolated PCB Mount Railway Compliant DC-DC Converter - TEP-160WIR
142-182W single output isolated PCB mount DC-DC converters in a sealed metal half brick package. These isolated railway compliant DC-DC converters have a wide 4:1 input voltage range, adjustable output voltage and a high efficiency of up to 91% allowing full power operation without forced air cooling at 25°C. When used with a heatsink (stock number 706-6420) this temperature can be increased up to 60°C.
Compact half brick design
Wide 4:1 input voltage range
Adjustable output voltage
EN50155 approval for railway applications
High efficiency
No minumum load
Soft start
Sense line
Remote On/Off input
Reverse input voltage, overtemperature, short circuit and over voltage protection
EMC compliance: EN 55022 class A/B with external components
Wide 4:1 input voltage range
Adjustable output voltage
EN50155 approval for railway applications
High efficiency
No minumum load
Soft start
Sense line
Remote On/Off input
Reverse input voltage, overtemperature, short circuit and over voltage protection
EMC compliance: EN 55022 class A/B with external components
Note
For suitable heatsink see stock number 706-6420
MTBF to MIL-HDBK-217F, at +25°C
Derate 1.5%/K above +25°C without heatsink
Derate 1.5%/K above +40°C with heatsink
MTBF to MIL-HDBK-217F, at +25°C
Derate 1.5%/K above +25°C without heatsink
Derate 1.5%/K above +40°C with heatsink
Standards
EN 50155, UL 60950-1, IEC/EN 60950-1
Traco - 75W to 240W - TEP Series
