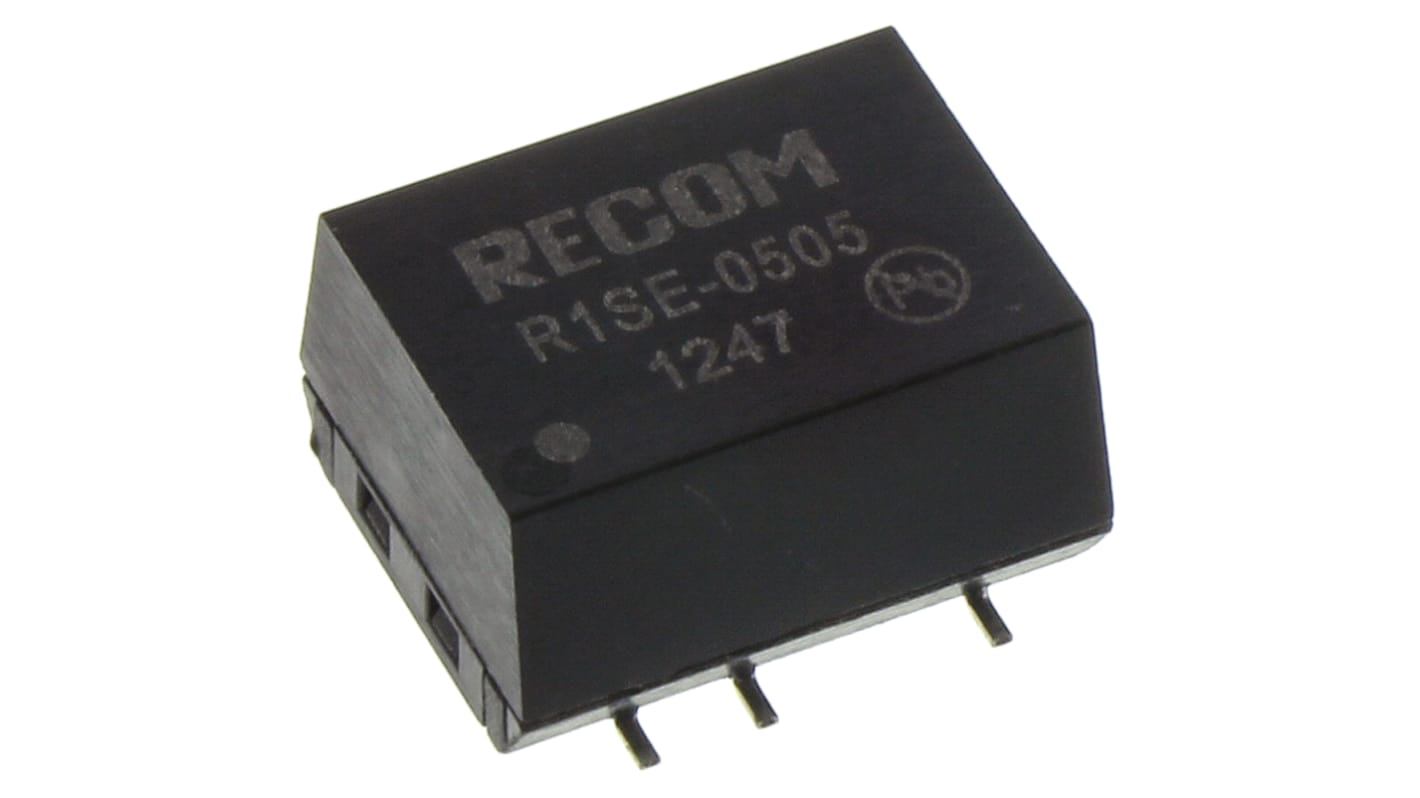

Recom R1SE DC/DC Converter, 5V dc/ 200 mA, 5V dc Input, 4.5V Input 1 W, 85 °C Max Temp -40 °C Min Temp, 8-Pin Surface
- RS Stock No.:
- 770-4302
- Mfr. Part No.:
- R1SE-0505
- Brand:
- Recom
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£2.69
(exc. VAT)
£3.23
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 62 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £2.69 |
| 5 - 9 | £2.61 |
| 10 - 24 | £2.53 |
| 25 - 49 | £2.45 |
| 50 + | £2.37 |
*price indicative
- RS Stock No.:
- 770-4302
- Mfr. Part No.:
- R1SE-0505
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 5V dc | |
| Maximum Input Voltage | 5V dc | |
| Minimum Input Voltage | 4.5V | |
| Output Current 1 | 200mA | |
| MTBF | 1022000h | |
| Number of Outputs | 1 | |
| Ripple and Noise | 100mV Pk-Pk | |
| Number of Pins | 8 | |
| Isolation Voltage | 1kV dc | |
| Maximum Output Power | 1W | |
| Package Type | Surface Mount | |
| Length | 12.75mm | |
| Depth | 6.7mm | |
| Series | R1SE | |
| Weight | 1g | |
| Standards/Approvals | EN, UL, CSA, EAC | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Efficiency | 75% | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Product Type DC/DC Converter | ||
Output Voltage 1 5V dc | ||
Maximum Input Voltage 5V dc | ||
Minimum Input Voltage 4.5V | ||
Output Current 1 200mA | ||
MTBF 1022000h | ||
Number of Outputs 1 | ||
Ripple and Noise 100mV Pk-Pk | ||
Number of Pins 8 | ||
Isolation Voltage 1kV dc | ||
Maximum Output Power 1W | ||
Package Type Surface Mount | ||
Length 12.75mm | ||
Depth 6.7mm | ||
Series R1SE | ||
Weight 1g | ||
Standards/Approvals EN, UL, CSA, EAC | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Efficiency 75% | ||
- COO (Country of Origin):
- TW
Recom ECONOLINE 1W SMD Unregulated DC/DC Converter - R1SE Series
The Recom R1SE Series is an economic E class DC/DC converter with no compromise in quality. These unregulated DC/DC converters have 1W power, 1000V dc isolation and 5V input output. The R1SE is used mainly in isolation for interfaces of bus systems, where an operating temperature of+85°C without de-rating is sufficient
The R1SE Series of DC/DC converters weights only 1 gram and can be positioned precisely and quickly with automatic placement equipment. The case has been designed so that potting is not necessary, although not potted the 100% lead free design enables this DC/DC converter to withstand all thermal cycling in the vapour phase solder processes.
1 : 1 input range
SMD package
Efficiency up to 75%
1k V dc isolation
Operating temperature from -40°C to +85°C
