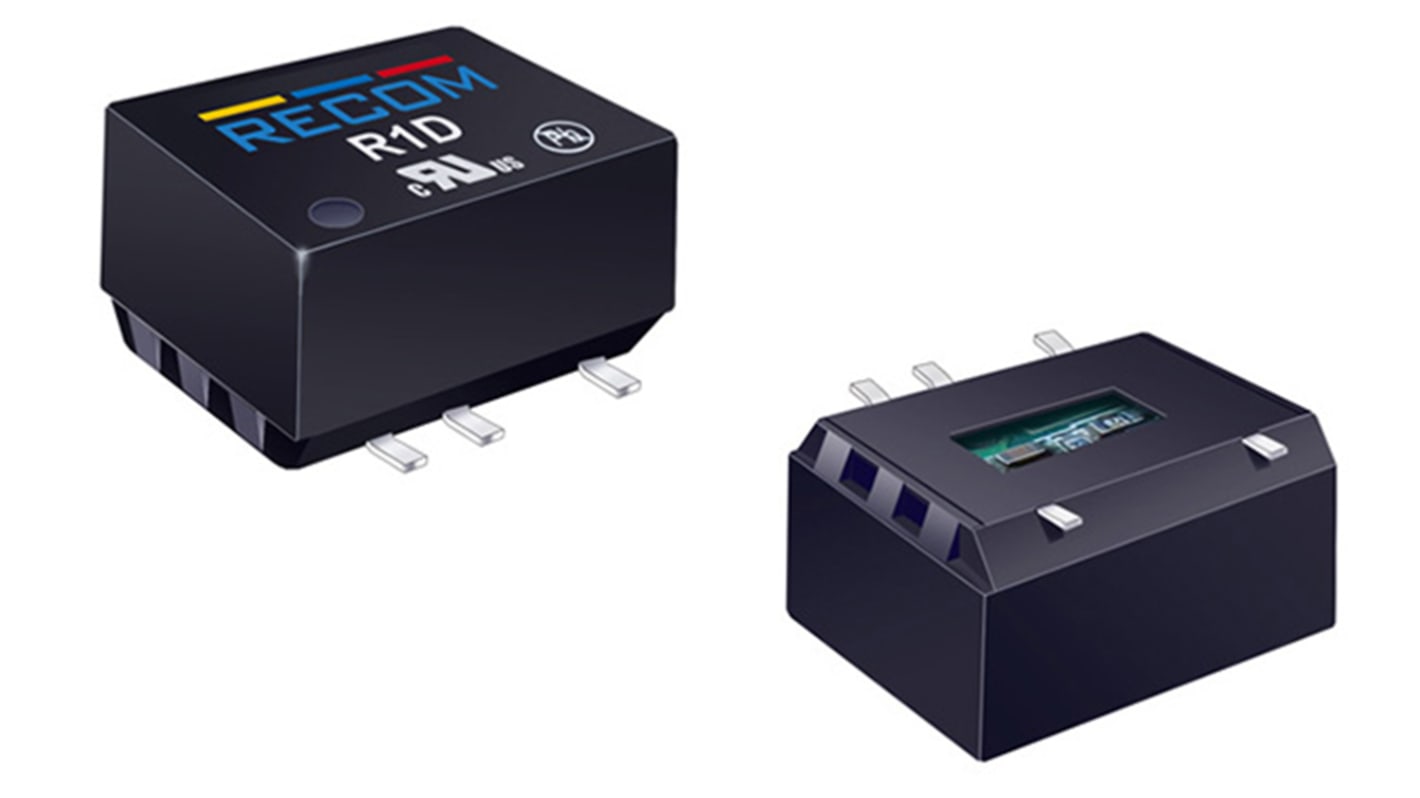

Recom R1D DC-DC Converter, ±5V dc/ ±100mA Output, 4.5 → 5.5 V dc Input, 1W, Surface Mount, +100°C Max Temp -40°C

RS Stock No.:: 843-9620
Mfr. Part No.:: R1D-0505
Brand:: Recom

Technical Reference (1)

Recom R1D DC-DC Converter, ±5V dc/ ±100mA Output, 4.5 → 5.5 V dc Input, 1W, Surface Mount, +100°C Max Temp -40°C

View this category

Available to back order for despatch 08/11/2024

Price Each (In a Pack of 33)

£6.637

(exc. VAT)

£7.964

(inc. VAT)

Units	Per unit	Per Pack*
33 - 132	£6.637	£219.021
165 - 297	£6.438	£212.454
330 - 792	£6.239	£205.887
825 - 1617	£6.04	£199.32
1650 +	£5.841	£192.753

*price indicative

RS Stock No.:: 843-9620
Mfr. Part No.:: R1D-0505
Brand:: Recom

COO (Country of Origin):: TW

Attribute	Value
Output Voltage	±5V dc
Input Voltage Range	4.5 → 5.5 V dc
Power Rating	1W
Input Voltage Nominal	5 V dc
Output Current	±100mA
Mounting Type	Surface Mount
Isolated	Yes
Number of Outputs	2
Package	SMD
Isolation Voltage	3kV dc
Length	15.24mm
Width	10.7mm
Depth	6.7mm
Series	R1D
Load Regulation	0.15
Efficiency	72 → 78%
Maximum Temperature	+100°C
Minimum Temperature	-40°C

Recom R1D DC-DC Converter, ±5V dc/ ±100mA Output, 4.5 → 5.5 V dc Input, 1W, Surface Mount, +100°C Max Temp -40°C

Technical Reference (1)

Recom 1W SMD Single/Dual Output Unregulated Isolated DC-DC Converter - R1S & R1D Series
