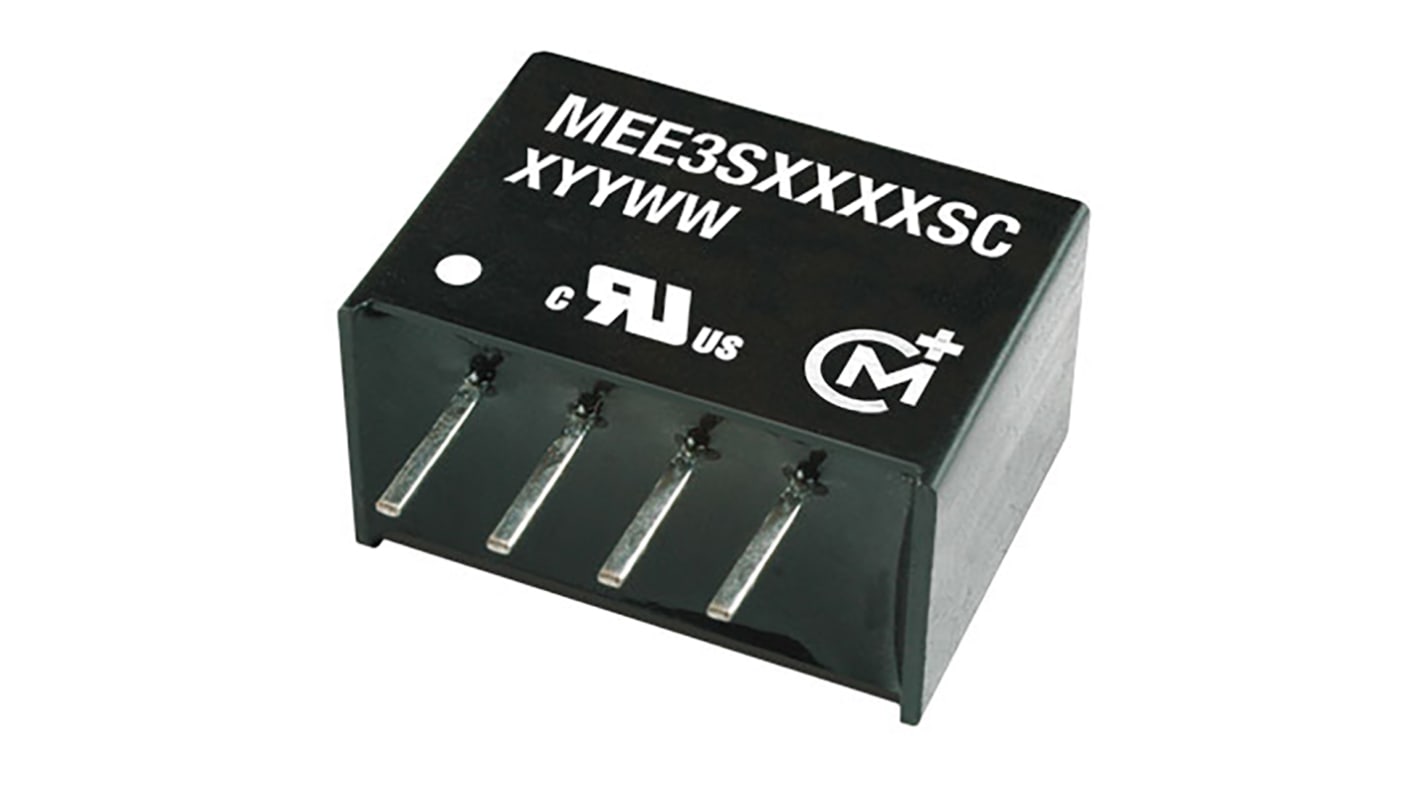

Murata Power Solutions MEE3 Isolated DC-DC Converter, 15V dc/ 200mA Output, 10.8 → 13.2 V dc Input, 3W, Through

View all DC-DC Converters
Bulk discount available

Subtotal (1 unit)*

£9.27

(exc. VAT)

£11.12

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible
Units
Per unit
1 - 4£9.27
5 - 9£8.81
10 - 24£8.34
25 - 49£7.88
50 +£7.42

*price indicative

Packaging Options:
RS Stock No.:
751-1465
Mfr. Part No.:
MEE3S1215SC
Brand:
Murata Power Solutions
Find similar products by selecting one or more attributes.
Select all

Brand

Murata Power Solutions

Output Voltage

15V dc

Input Voltage Range

10.8 → 13.2 V dc

Power Rating

3W

Input Voltage Nominal

12 V dc

Output Current

200mA

Mounting Type

Through Hole

Number of Outputs

1

Package

SIP

Isolation Voltage

1kV dc

Length

14.15mm

Depth

10.15mm

Series

MEE3

Load Regulation

±4%

Maximum Temperature

+85°C

Efficiency

89%

Minimum Temperature

-40°C

COO (Country of Origin):
CN

Murata Isolated 3W Single Output DC/DC Converter - MEE3 Series


MEE3 series isolated 3W single output DC/DC converters with an industry standard SIP package. These 3W single output isolated DC/DC converters have a high efficiency and power density and offer a full 3W load performance under a wide temperature range. Typical applications this MEE3 series of DC/DC converters include providing local supplies on control system boards with the added benefit of 1kVDC galvanic isolation.

High efficiency of up to 89% typically
High power density of 2.68W/cm3
Industry standard pinout
Performance at full load at wide temperature range of -40°C to 85°C
Fully encapsulated with toroidal magnetics
No heatsink or external components required
No electrolytic or tantalum capacitors
UL 94V-0 package material

Note

MTBF to MIL-HDBK-217F FN2 with nominal input voltage at full load

Standards

UL 60950

Approvals

cULus
