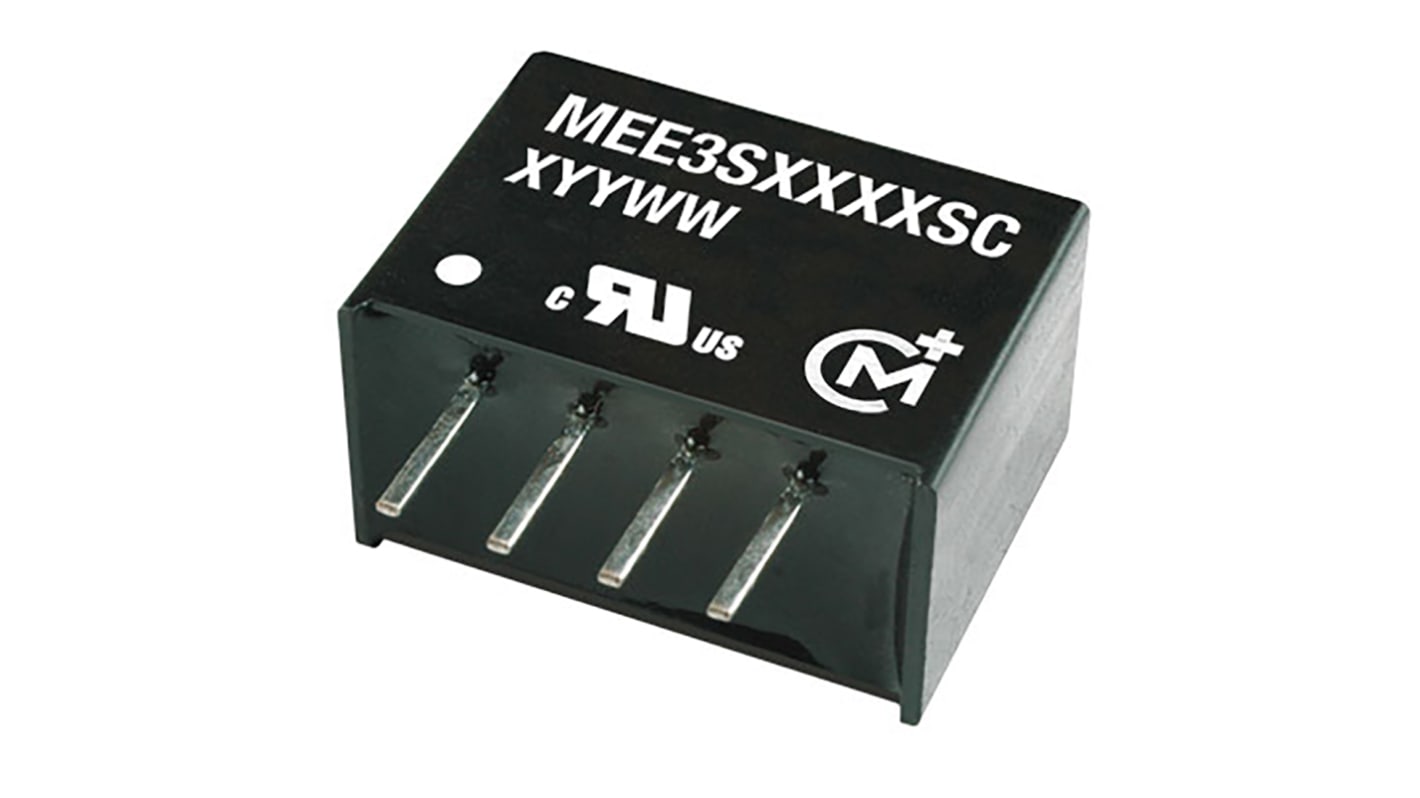

Murata Power Solutions MEE3 DC-DC Converter, 9V dc/ 333mA Output, 10.8 → 13.2 V dc Input, 3W, Through Hole,

View all DC-DC Converters
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
751-1453
Mfr. Part No.:
MEE3S1209SC
Brand:
Murata Power Solutions
Find similar products by selecting one or more attributes.
Select all

Brand

Murata Power Solutions

Output Voltage

9V dc

Input Voltage Range

10.8 → 13.2 V dc

Power Rating

3W

Input Voltage Nominal

12 V dc

Output Current

333mA

Mounting Type

Through Hole

Isolated

Yes

Number of Outputs

1

Package

SIP

Isolation Voltage

1kV dc

Depth

10.15mm

Length

14.15mm

Series

MEE3

Load Regulation

±5%

Minimum Temperature

-40°C

Maximum Temperature

+85°C

Efficiency

88%

COO (Country of Origin):
CN

Murata Isolated 3W Single Output DC/DC Converter - MEE3 Series


MEE3 series isolated 3W single output DC/DC converters with an industry standard SIP package. These 3W single output isolated DC/DC converters have a high efficiency and power density and offer a full 3W load performance under a wide temperature range. Typical applications this MEE3 series of DC/DC converters include providing local supplies on control system boards with the added benefit of 1kVDC galvanic isolation.

High efficiency of up to 89% typically
High power density of 2.68W/cm3
Industry standard pinout
Performance at full load at wide temperature range of -40°C to 85°C
Fully encapsulated with toroidal magnetics
No heatsink or external components required
No electrolytic or tantalum capacitors
UL 94V-0 package material

Note

MTBF to MIL-HDBK-217F FN2 with nominal input voltage at full load

Standards

UL 60950

Approvals

cULus
