Recom RO DC/DC Converter, 5V dc/ 200 mA, 24V dc Input, 0V Input 1 W, Through Hole, 85 °C Max Temp -40 °C Min Temp, 6-Pin
- RS Stock No.:
- 672-8795
- Mfr. Part No.:
- RO-2405S
- Brand:
- Recom
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£6.35
(exc. VAT)
£7.62
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship
- Plus 7 unit(s) shipping from 16 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £6.35 |
| 5 - 9 | £6.17 |
| 10 - 24 | £5.98 |
| 25 - 49 | £5.79 |
| 50 + | £5.59 |
*price indicative
- RS Stock No.:
- 672-8795
- Mfr. Part No.:
- RO-2405S
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage 1 | 5V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 0V | |
| Maximum Input Voltage | 24V dc | |
| Output Current 1 | 200mA | |
| Output Current 2 | 200mA | |
| Mount Type | Through Hole | |
| Number of Outputs | 1 | |
| MTBF | 200000h | |
| Output Voltage Adjustment Range | 0/24 V | |
| Ripple and Noise | 100mV Pk-Pk | |
| Number of Pins | 6 | |
| Isolation Voltage | 1kV dc | |
| Package Type | SIP | |
| Maximum Output Power | 1W | |
| Series | RO | |
| Width | 6mm | |
| Weight | 1.4g | |
| Standards/Approvals | REACH | |
| Length | 11.5mm | |
| Depth | 10mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Efficiency | 80% | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 1 5V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 0V | ||
Maximum Input Voltage 24V dc | ||
Output Current 1 200mA | ||
Output Current 2 200mA | ||
Mount Type Through Hole | ||
Number of Outputs 1 | ||
MTBF 200000h | ||
Output Voltage Adjustment Range 0/24 V | ||
Ripple and Noise 100mV Pk-Pk | ||
Number of Pins 6 | ||
Isolation Voltage 1kV dc | ||
Package Type SIP | ||
Maximum Output Power 1W | ||
Series RO | ||
Width 6mm | ||
Weight 1.4g | ||
Standards/Approvals REACH | ||
Length 11.5mm | ||
Depth 10mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Efficiency 80% | ||
- COO (Country of Origin):
- TW

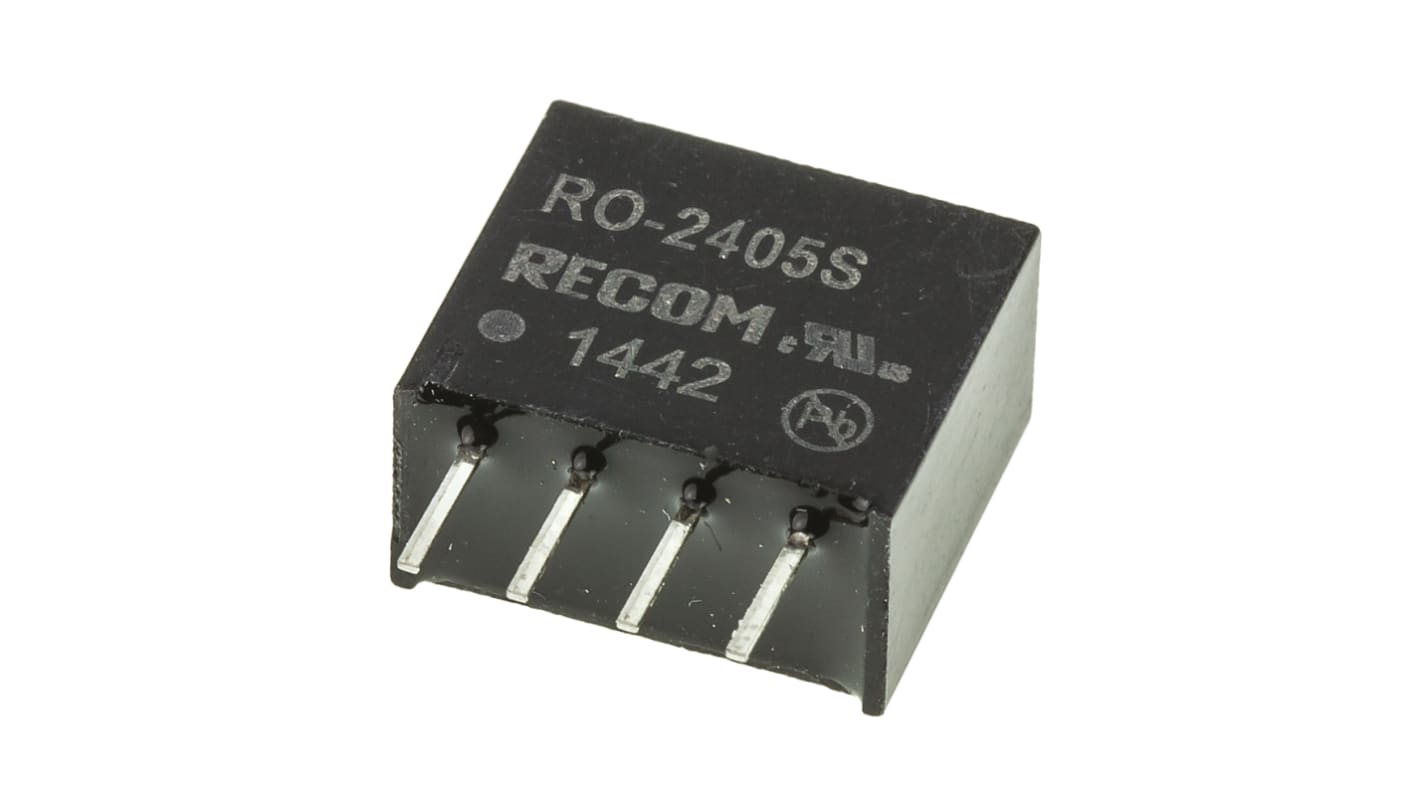

RECOM DC-DC Converter, Short-Circuit Protection, Plastic Housing - RO Series - RO-2405S
To send smooth and steady power to your PCB-linked parts, go for this DC-DC converter from RECOM. It steps down 24V DC input signals to deliver a 5V DC output, so offers a stable and noiseless supply to components like sensors and LED indicators. Thanks to its non-conductive plastic housing, this unit withstands impact and cuts electric shocks out of the equation, making it a safe choice for harsh industrial environments. Compact dimensions of 11.5 (L) x 6 (W) x 10mm (H) mean squeezing it into a busy setup is no problem.
Features & Benefits
• Resists temperatures between -40°C and +85°C, making it safe for use in challenging settings
• Standard SIP-4 unit for easy integration with other components on the circuit board
• Stops burning in 10 seconds or less in the event of a fire, making it suitable for use in volatile areas
• Through-hole mounting style achieves a permanent, vibration-proof connection to your circuit board
Applications
• Telecommunications industry
• Oil and gas plants
• Measurement and instrumentation devices
How long will this DC-DC converter last?
Expect long-lasting performance from this unit, as it has a mean time between failures of 11,800,000 hours at +25°C.
