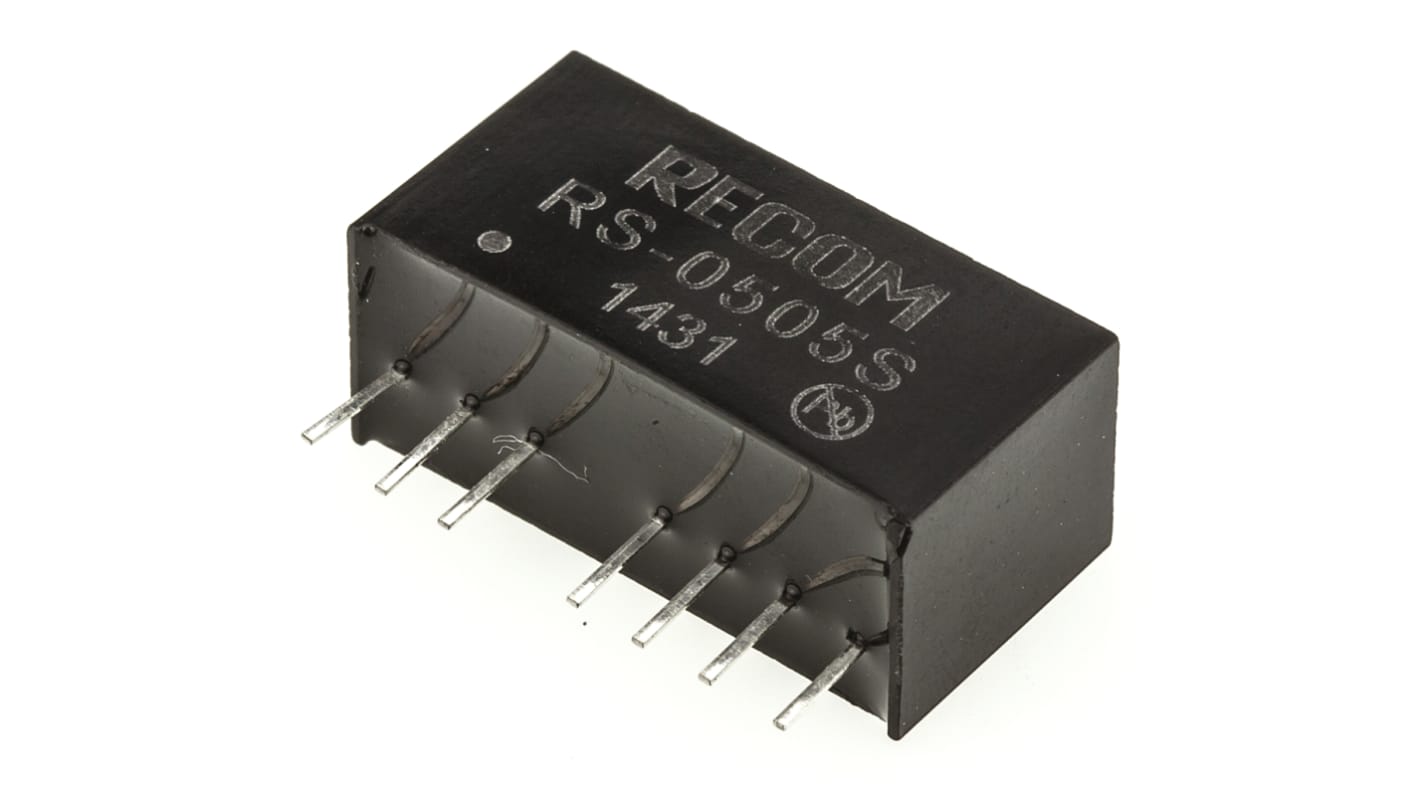

Recom RS DC-DC Converter, 5V dc/ 400mA Output, 4.5 → 9 V dc Input, 2W, Through Hole, +85°C Max Temp -40°C Min
- RS Stock No.:
- 473-5160
- Mfr. Part No.:
- RS-0505S
- Brand:
- Recom
6 In stock - FREE next working day delivery available
Added
Price Each
£12.87
(exc. VAT)
£15.44
(inc. VAT)
Units | Per unit |
1 - 4 | £12.87 |
5 - 9 | £12.51 |
10 - 24 | £12.18 |
25 - 49 | £11.86 |
50 + | £11.55 |
- RS Stock No.:
- 473-5160
- Mfr. Part No.:
- RS-0505S
- Brand:
- Recom
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Recom 2W SIP Single/Dual Output Regulated Isolated DC-DC Converter - RS Series
High power-density, an industrial temperature range of -40° to +85°C.
Additional features such as Remote-On-Off control make these converters ideal for highly sophisticated industrial designs.
Additional features such as Remote-On-Off control make these converters ideal for highly sophisticated industrial designs.
2:1 wide input range
Regulated outputs
1kVdc isolation
Continuous short circuit protection
Low noise
UL94V-0 package material
83% efficiency
SIP 8 package
Regulated outputs
1kVdc isolation
Continuous short circuit protection
Low noise
UL94V-0 package material
83% efficiency
SIP 8 package
Note
Operating temperature is without derating.
Standards
EN60950-1
RECOM DC-DC Converter, 1kV DC Isolation, 73 to 75% Efficiency - RS Series - RS-0505S
Need regulated voltage to suit sensitive battery-powered devices? Trust this DC-DC converter from RECOM to deliver the goods. It accepts inputs across a broad 2:1 range (4.5 to 9V DC) and outputs a stable 5V DC to power connected components safely. Tight line and load regulation of ±0.5% means you can count on close control of these values, so making adjustments for specific applications is a breeze. By delivering 2W from a SIP8 module, this small package provides high energy density and packs a powerful punch.
Features & Benefits
• Mean time between failures of 1,398,000 hours, so it's with you for the long haul
• Flame-retardant epoxy potting combines insulation with fire safety
• 73 to 75% efficiency means it produces little waste energy as heat, so there's no need for a heatsink
• 1kV DC isolation for effective protection against electrical surges
• Flame-retardant epoxy potting combines insulation with fire safety
• 73 to 75% efficiency means it produces little waste energy as heat, so there's no need for a heatsink
• 1kV DC isolation for effective protection against electrical surges
Applications
• Telecommunications networks
• Manufacturing equipment
• Consumer electronics
• Manufacturing equipment
• Consumer electronics
What's the benefit of this unit's low ripple and noise?
This converter has a low noise rating of 50mVp-p, so you can count on stable output voltages and less risk of damage caused by voltage spikes.
Specifications
Attribute | Value |
---|---|
Output Voltage | 5V dc |
Input Voltage Range | 4.5 → 9 V dc |
Power Rating | 2W |
Input Voltage Nominal | 5 V dc |
Output Current | 400mA |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 1 |
Package | SIP |
Isolation Voltage | 500V ac |
Depth | 11.1mm |
Length | 21.8mm |
Series | RS |
Minimum Temperature | -40°C |
Maximum Temperature | +85°C |
