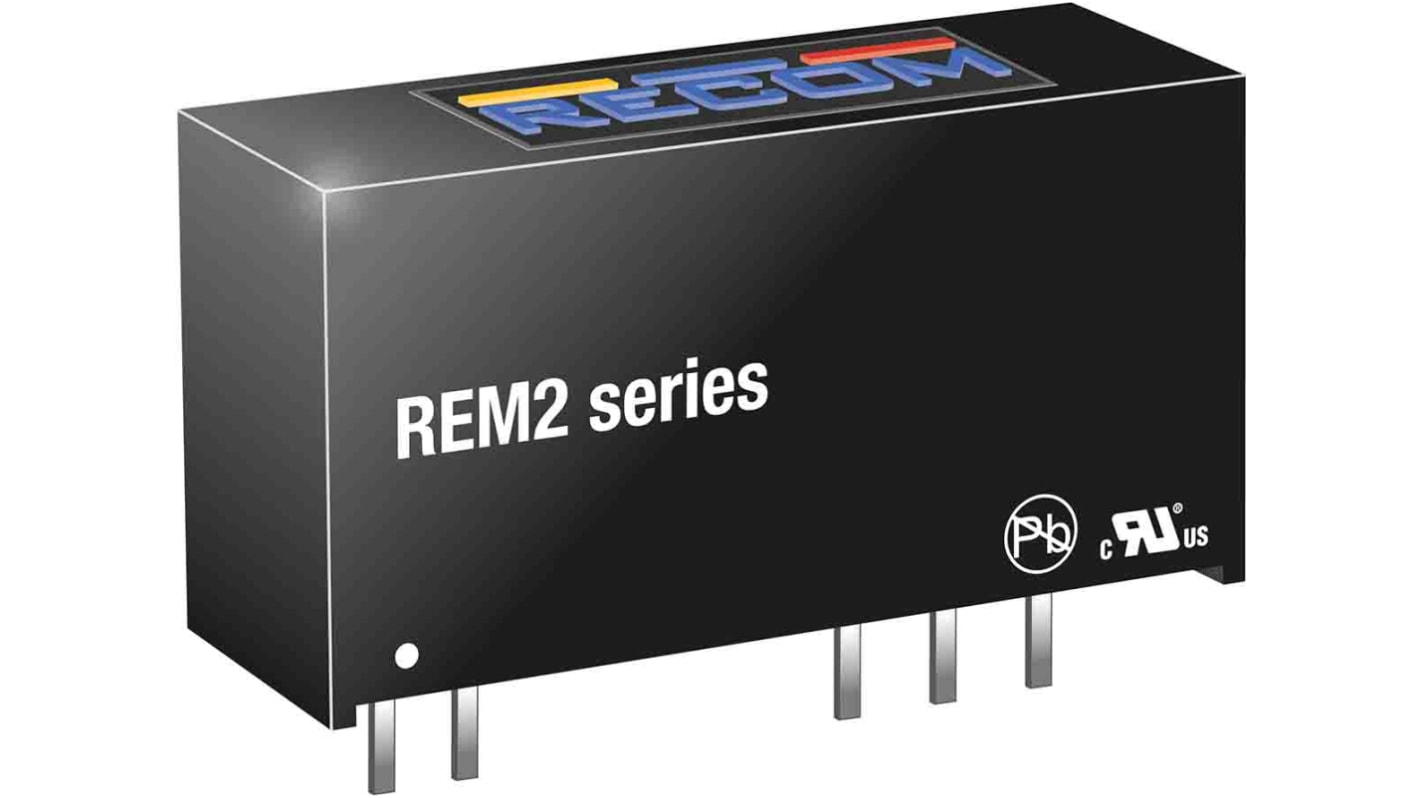

Recom REM2 DC-DC Converter, 5V dc/ 400mA Output, 4.5 → 5.5 V dc Input, 2W, Through Hole, +95°C Max Temp -40°C
- RS Stock No.:
- 185-5398
- Mfr. Part No.:
- REM2-0505S
- Brand:
- Recom
1 In stock - FREE next working day delivery available
Price 1 Tube of 20
£224.83
(exc. VAT)
£269.80
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 + | £224.83 | £11.242 |
*price indicative
- RS Stock No.:
- 185-5398
- Mfr. Part No.:
- REM2-0505S
- Brand:
- Recom
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
RECOM DC-DC Converter, 23 (L) x 8 (W) 12.2mm (D), 5.2kV DC Isolation Voltage - REM2 Series - REM2-0505S
Want to keep your applications on top of their game? This medical-grade DC-DC converter from RECOM tames incoming voltages between 4.5 and 5.5V DC to produce a 5V DC feed for optimal performance. It has 5.2kV DC per minute isolation to keep input and output flows separate, improving safety in the workplace. With up to 79% efficiency, this unit saves energy when it counts and doesn't generate excessive heat. Its compact dimensions of 23 (L) x 8 (W) 12.2mm (D) mean it slips easily into tight spaces.
Features & Benefits
• Through-hole mounting pins for speedy installation on a PCB
• Insulated SIP8 package protects users from direct contact with live components
• Broad operating temperature range between -40°C and +95°C for use in tough conditions
• Insulated SIP8 package protects users from direct contact with live components
• Broad operating temperature range between -40°C and +95°C for use in tough conditions
Applications
• Medical power supplies
• Gaming consoles
• Laptops and tablets
• Renewable energy integration
• Gaming consoles
• Laptops and tablets
• Renewable energy integration
How do I test my DC-DC converter?
Testing your DC-DC converter gives you peace of mind and stops faulty currents from damaging linked equipment. Simply use one channel as input voltage and monitor the current. Configure another channel and measure the outgoing voltage.
Specifications
Attribute | Value |
---|---|
Output Voltage | 5V dc |
Input Voltage Range | 4.5 → 5.5 V dc |
Power Rating | 2W |
Input Voltage Nominal | 5 V dc |
Output Current | 400mA |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 1 |
Package | SIP |
Isolation Voltage | 5.2kV dc |
Depth | 12.2mm |
Width | 8mm |
Length | 23mm |
Series | REM2 |
Load Regulation | 0.15 |
Standards Met | 2MOPP, ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No.60601-1:14, CB, cURus, EN55011, EN60601-1-2, IEC/EN60601-1, IEC/EN62368-1 |
Minimum Temperature | -40°C |
Maximum Temperature | +95°C |
Efficiency | 79% |
Medical Approved | Yes |
