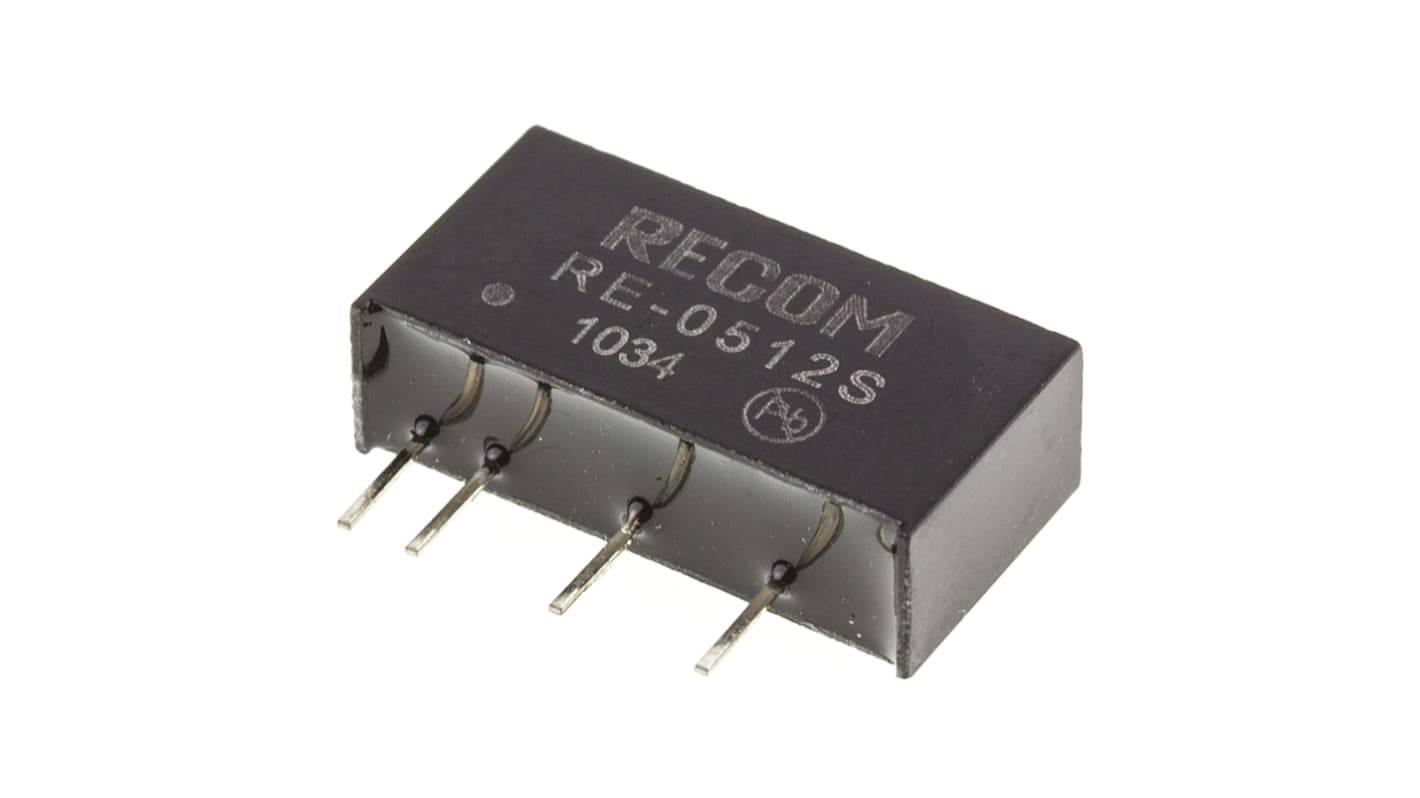

Recom RE DC/DC Converter, 12V dc/ 84 mA, 5V dc Input, 4.5V Input 1 W, Through Hole, 85 °C Max Temp -40 °C Min Temp,

View all DC-DC Converters
Bulk discount available

Subtotal (1 unit)*

£5.47

(exc. VAT)

£6.56

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 1 unit(s) shipping from 27 April 2026
  • Plus 9 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4£5.47
5 - 9£5.31
10 - 24£5.15
25 - 49£4.98
50 +£4.82

*price indicative

RS Stock No.:
473-5019
Mfr. Part No.:
RE-0512S
Brand:
Recom
Find similar products by selecting one or more attributes.
Select all

Brand

Recom

Output Voltage 1

12V dc

Product Type

DC/DC Converter

Maximum Input Voltage

5V dc

Minimum Input Voltage

4.5V

Output Current 1

84mA

Output Current 2

84mA

Mount Type

Through Hole

Number of Outputs

1

MTBF

151000h

Output Voltage Adjustment Range

3.3/24 V

Ripple and Noise

100mV Pk-Pk

Number of Pins

4

Isolation Voltage

1kV dc

Maximum Output Power

1W

Package Type

SIP

Depth

10.2mm

Series

RE

Width

10.2mm

Standards/Approvals

UR, RoHS

Length

19.6mm

Weight

2.2g

Maximum Operating Temperature

85°C

Minimum Operating Temperature

-40°C

Efficiency

84%

COO (Country of Origin):
TW

Recom 1W SIP Single/Dual Output Unregulated Isolated DC-DC Converter - RE/RB Series


Single & dual output options

1kVdc isolation

UL94V-0 package material

SIP7 package with industry standard pin-outs

Note

Operating temperature is without derating.
