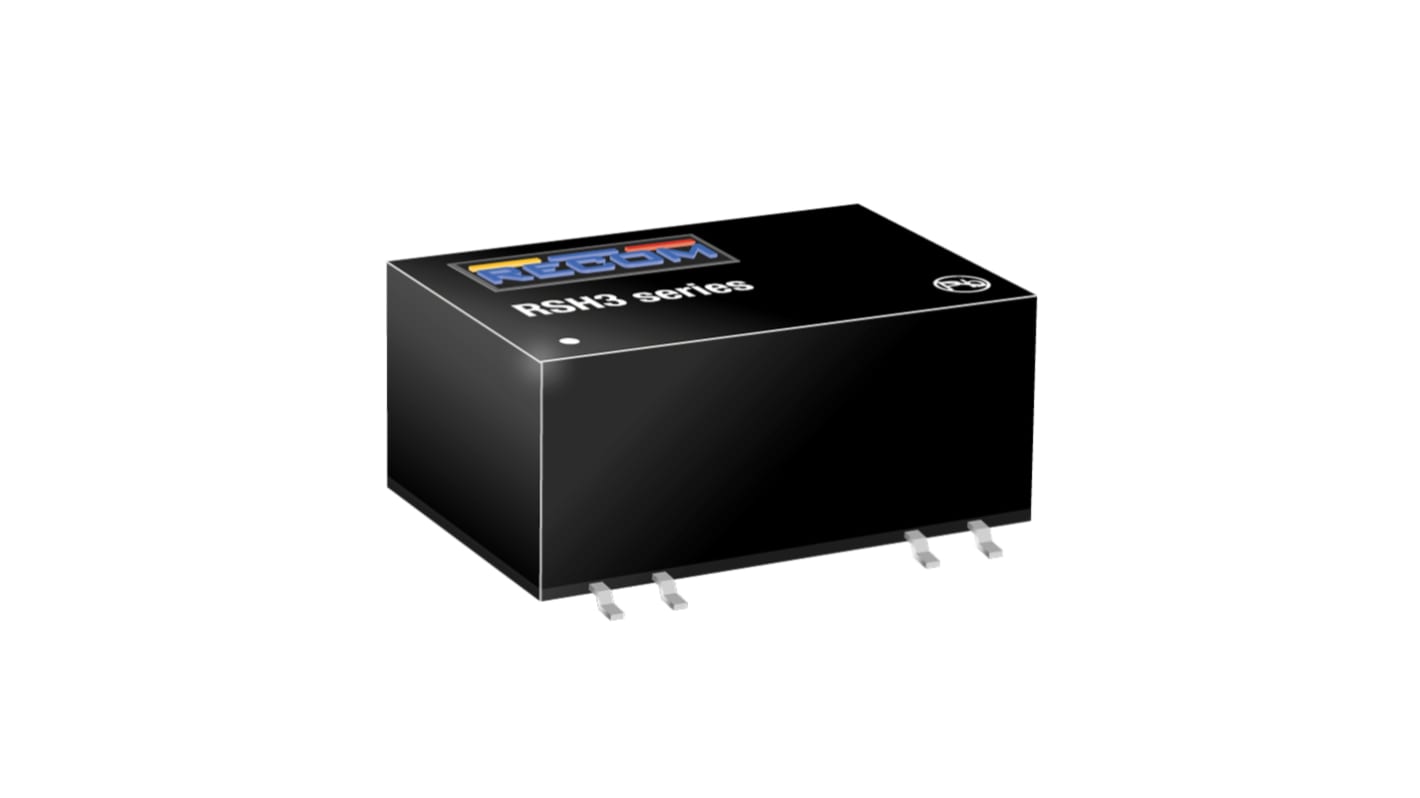

Recom RSH3 DC/DC Converter, 15V dc/ 200 mA, 36V dc Input, 24V dc Input 3 W, Surface, 81 °C Max Temp -40 °C Min Temp,
- RS Stock No.:
- 274-5508
- Mfr. Part No.:
- RSH3-2415S/H2
- Brand:
- Recom
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 25 units)*
£216.19
(exc. VAT)
£259.43
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 02 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 3 | £216.19 | £8.648 |
| 4 + | £189.38 | £7.575 |
*price indicative
- RS Stock No.:
- 274-5508
- Mfr. Part No.:
- RSH3-2415S/H2
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage 1 | 15V dc | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 36V dc | |
| Minimum Input Voltage | 24V dc | |
| Output Current 1 | 200mA | |
| Mount Type | Surface | |
| MTBF | 2872000h | |
| Number of Outputs | 2 | |
| Ripple and Noise | 75mV Pk-Pk | |
| Isolation Voltage | 2kV ac | |
| Number of Pins | 7 | |
| Package Type | Surface Mount | |
| Maximum Output Power | 3W | |
| Width | 17.2mm | |
| Weight | 2.5g | |
| Length | 18.9mm | |
| Depth | 8.7mm | |
| Series | RSH3 | |
| Standards/Approvals | IEC/EN/UL62368, RoHS 2+ compliant, UL62368-1, IEC/EN62368-1 | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 82% | |
| Maximum Operating Temperature | 81°C | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 1 15V dc | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 36V dc | ||
Minimum Input Voltage 24V dc | ||
Output Current 1 200mA | ||
Mount Type Surface | ||
MTBF 2872000h | ||
Number of Outputs 2 | ||
Ripple and Noise 75mV Pk-Pk | ||
Isolation Voltage 2kV ac | ||
Number of Pins 7 | ||
Package Type Surface Mount | ||
Maximum Output Power 3W | ||
Width 17.2mm | ||
Weight 2.5g | ||
Length 18.9mm | ||
Depth 8.7mm | ||
Series RSH3 | ||
Standards/Approvals IEC/EN/UL62368, RoHS 2+ compliant, UL62368-1, IEC/EN62368-1 | ||
Minimum Operating Temperature -40°C | ||
Efficiency 82% | ||
Maximum Operating Temperature 81°C | ||
- COO (Country of Origin):
- TW
The Recom DC/DC Converter is a high power density converter with single and dual outputs. The RSH3 is available with three different input ranges and offers regulated output with no minimum load requirement.
Equipped with ON or OFF control
Short circuit protection
Over current protection
