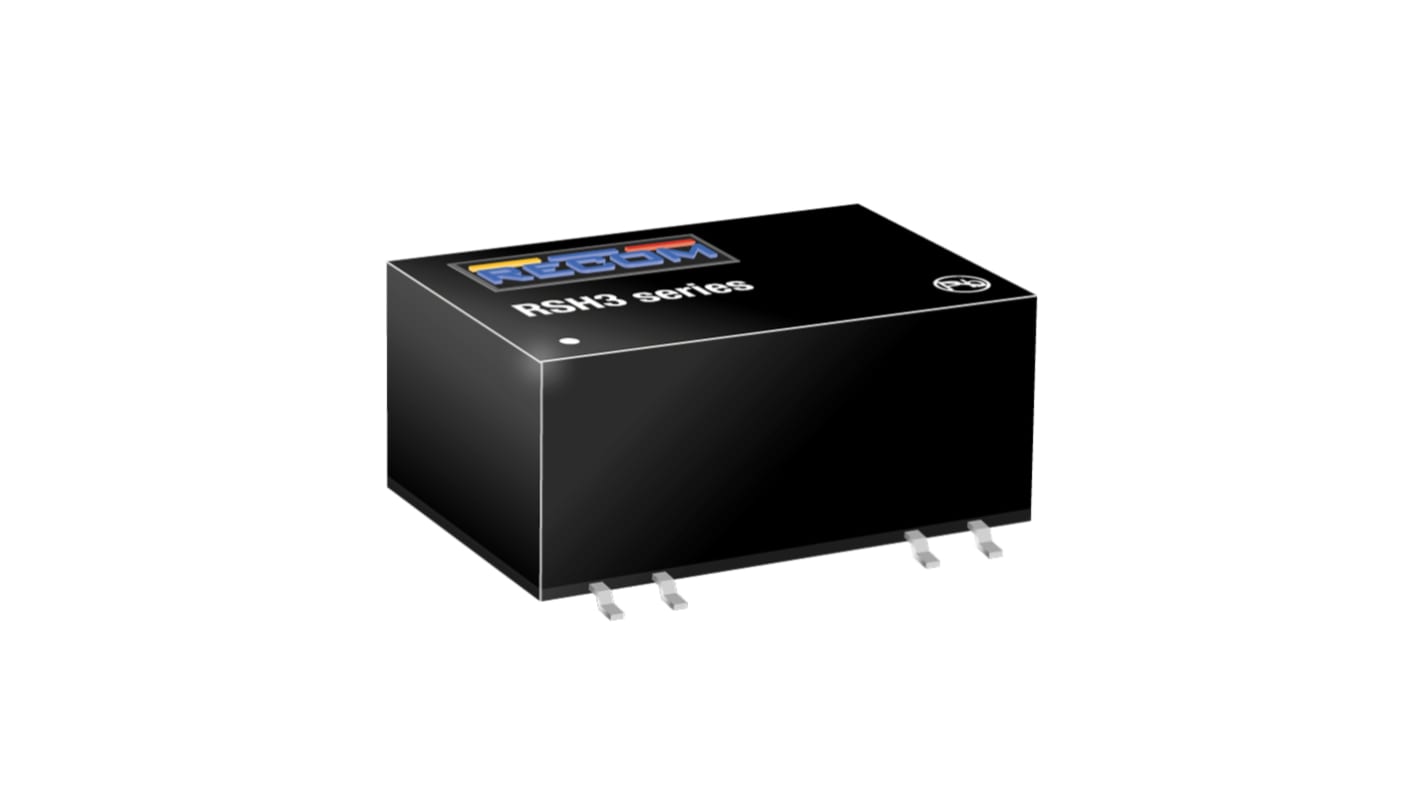

Recom RSH3 DC-DC Converter, 24V dc/ 125mA Output, 18 → 36 V dc Input, 3W, Surface Mount, +81°C Max Temp -40°C
- RS Stock No.:
- 274-5510
- Mfr. Part No.:
- RSH3-2424S/H2
- Brand:
- Recom
Bulk discount available
Subtotal (1 tube of 25 units)*
£297.01
(exc. VAT)
£356.41
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 15 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 3 | £297.01 | £11.88 |
4 + | £269.18 | £10.767 |
*price indicative
- RS Stock No.:
- 274-5510
- Mfr. Part No.:
- RSH3-2424S/H2
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Recom | |
Output Voltage | 24V dc | |
Input Voltage Range | 18 → 36 V dc | |
Power Rating | 3W | |
Input Voltage Nominal | 24 V dc | |
Output Current | 125mA | |
Mounting Type | Surface Mount | |
Series | RSH3 | |
Maximum Temperature | +81°C | |
Minimum Temperature | -40°C | |
Select all | ||
---|---|---|
Brand Recom | ||
Output Voltage 24V dc | ||
Input Voltage Range 18 → 36 V dc | ||
Power Rating 3W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 125mA | ||
Mounting Type Surface Mount | ||
Series RSH3 | ||
Maximum Temperature +81°C | ||
Minimum Temperature -40°C | ||
- COO (Country of Origin):
- TW
The Recom DC/DC Converter is a high power density converter with single and dual outputs. The RSH3 is available with three different input ranges and offers regulated output with no minimum load requirement.
Equipped with ON or OFF control
Short circuit protection
Over current protection
Short circuit protection
Over current protection
