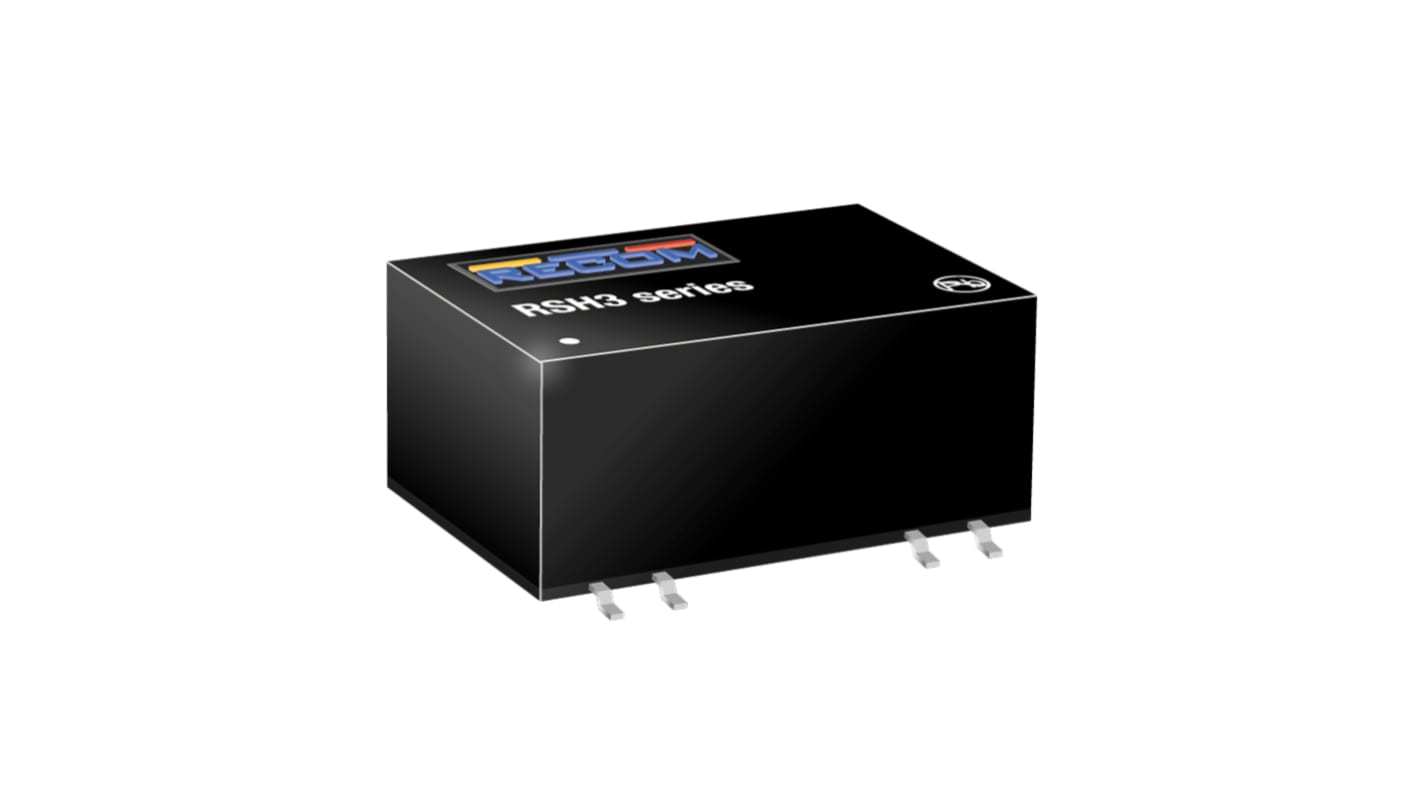

Recom RSH3 DC/DC Converter, 12V dc, -12 V dc/ 125 mA, 18V dc Input, 12V dc Input 3 W, Surface, 81 °C Max Temp -40 °C Min
- RS Stock No.:
- 274-5501
- Mfr. Part No.:
- RSH3-1212D/H2
- Brand:
- Recom
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 25 units)*
£319.23
(exc. VAT)
£383.08
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 22 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 3 | £319.23 | £12.769 |
| 4 + | £289.86 | £11.594 |
*price indicative
- RS Stock No.:
- 274-5501
- Mfr. Part No.:
- RSH3-1212D/H2
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 12, -12V dc | |
| Minimum Input Voltage | 12V dc | |
| Maximum Input Voltage | 18V dc | |
| Output Current 1 | 125mA | |
| Output Current 2 | -125mA | |
| Output Voltage 2 | -12V dc | |
| Mount Type | Surface | |
| Number of Outputs | 2 | |
| Ripple and Noise | 75mV Pk-Pk | |
| Number of Pins | 7 | |
| Isolation Voltage | 2kV ac | |
| Package Type | Encapsulated Plastic SMD | |
| Maximum Output Power | 3W | |
| Depth | 8.7mm | |
| Length | 18.9mm | |
| Series | RSH3 | |
| Width | 17.2mm | |
| Standards/Approvals | UL62368-1, RoHS 2+ compliant, IEC/EN/UL62368, IEC/EN62368-1 | |
| Weight | 2.5g | |
| Maximum Operating Temperature | 81°C | |
| Efficiency | 82% | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Product Type DC/DC Converter | ||
Output Voltage 1 12, -12V dc | ||
Minimum Input Voltage 12V dc | ||
Maximum Input Voltage 18V dc | ||
Output Current 1 125mA | ||
Output Current 2 -125mA | ||
Output Voltage 2 -12V dc | ||
Mount Type Surface | ||
Number of Outputs 2 | ||
Ripple and Noise 75mV Pk-Pk | ||
Number of Pins 7 | ||
Isolation Voltage 2kV ac | ||
Package Type Encapsulated Plastic SMD | ||
Maximum Output Power 3W | ||
Depth 8.7mm | ||
Length 18.9mm | ||
Series RSH3 | ||
Width 17.2mm | ||
Standards/Approvals UL62368-1, RoHS 2+ compliant, IEC/EN/UL62368, IEC/EN62368-1 | ||
Weight 2.5g | ||
Maximum Operating Temperature 81°C | ||
Efficiency 82% | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- TW
The Recom DC/DC Converter is a high power density converter with single and dual outputs. The RSH3 is available with three different input ranges and offers regulated output with no minimum load requirement.
Equipped with ON or OFF control
Short circuit protection
Over current protection
