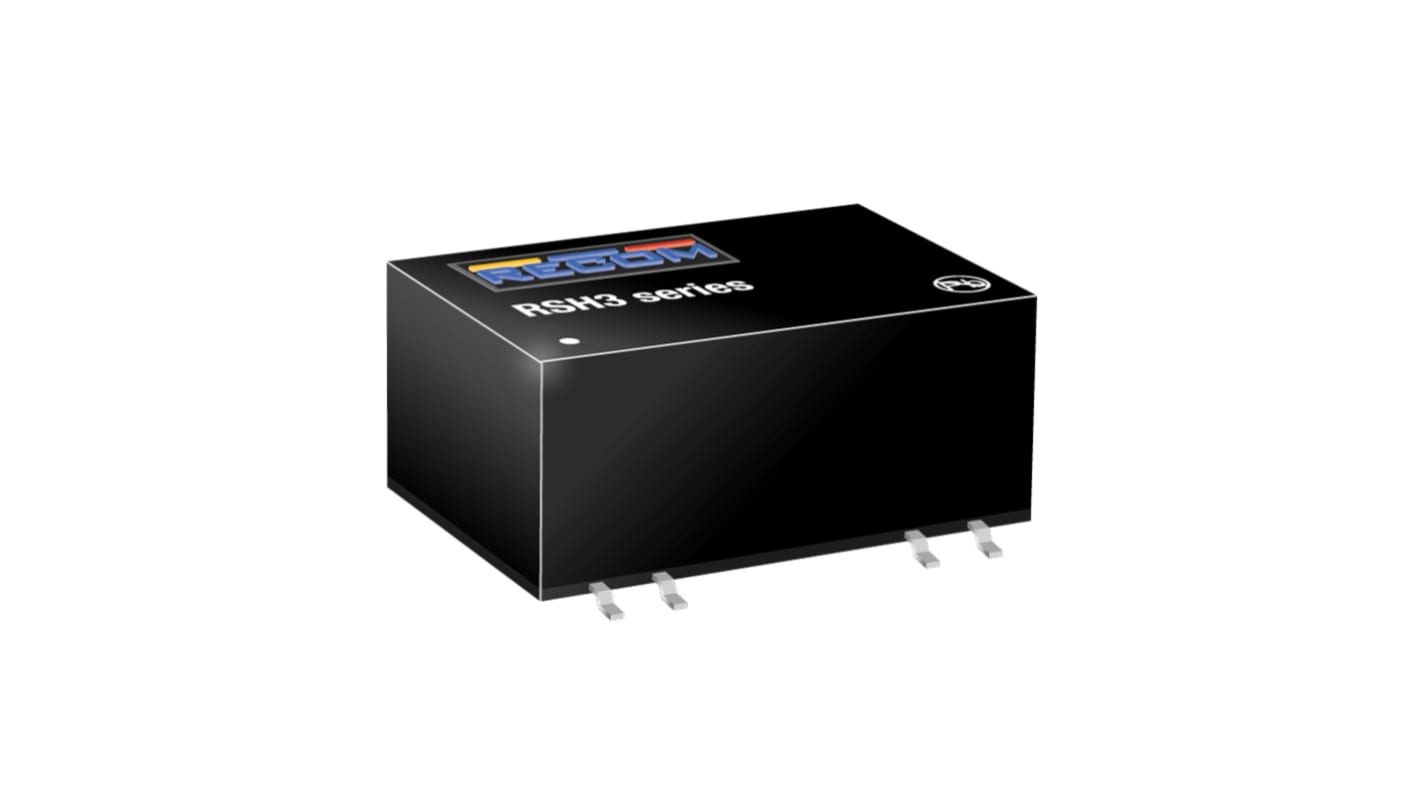

Recom RSH3 DC/DC Converter, 12V dc/ 250 mA, 18V dc Input, 12V dc Input 3 W, Surface, 81 °C Max Temp -40 °C Min Temp,
- RS Stock No.:
- 274-5504
- Mfr. Part No.:
- RSH3-1212S/H2
- Brand:
- Recom
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 25 units)*
£303.29
(exc. VAT)
£363.95
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 02 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 3 | £303.29 | £12.132 |
| 4 + | £274.78 | £10.991 |
*price indicative
- RS Stock No.:
- 274-5504
- Mfr. Part No.:
- RSH3-1212S/H2
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 12V dc | |
| Maximum Input Voltage | 18V dc | |
| Minimum Input Voltage | 12V dc | |
| Output Current 1 | 250mA | |
| Mount Type | Surface | |
| Number of Outputs | 2 | |
| MTBF | 2872000h | |
| Ripple and Noise | 75mV Pk-Pk | |
| Isolation Voltage | 2kV ac | |
| Number of Pins | 7 | |
| Maximum Output Power | 3W | |
| Package Type | Surface Mount | |
| Length | 18.9mm | |
| Depth | 8.7mm | |
| Width | 17.2mm | |
| Series | RSH3 | |
| Standards/Approvals | IEC/EN62368-1, IEC/EN/UL62368, RoHS 2+ compliant, UL62368-1 | |
| Weight | 2.5g | |
| Efficiency | 81% | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 81°C | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Product Type DC/DC Converter | ||
Output Voltage 1 12V dc | ||
Maximum Input Voltage 18V dc | ||
Minimum Input Voltage 12V dc | ||
Output Current 1 250mA | ||
Mount Type Surface | ||
Number of Outputs 2 | ||
MTBF 2872000h | ||
Ripple and Noise 75mV Pk-Pk | ||
Isolation Voltage 2kV ac | ||
Number of Pins 7 | ||
Maximum Output Power 3W | ||
Package Type Surface Mount | ||
Length 18.9mm | ||
Depth 8.7mm | ||
Width 17.2mm | ||
Series RSH3 | ||
Standards/Approvals IEC/EN62368-1, IEC/EN/UL62368, RoHS 2+ compliant, UL62368-1 | ||
Weight 2.5g | ||
Efficiency 81% | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 81°C | ||
- COO (Country of Origin):
- TW
The Recom DC/DC Converter is a high power density converter with single and dual outputs. The RSH3 is available with three different input ranges and offers regulated output with no minimum load requirement.
Equipped with ON or OFF control
Short circuit protection
Over current protection
