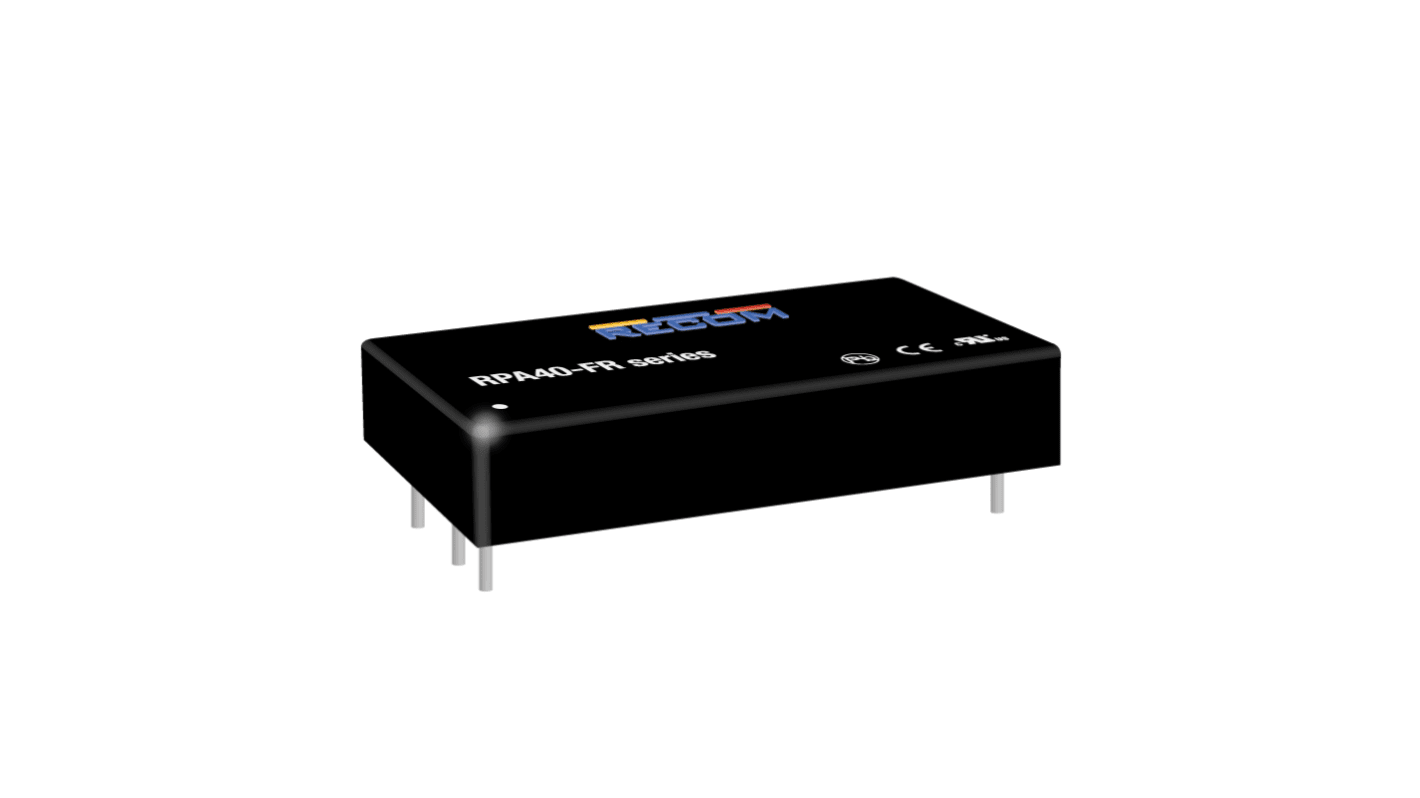

Recom RPA40-FR DC/DC Converter, 12V dc, -12 V dc/ 1666 mA, 160V dc Input, 110V dc Input 40 W, Through Hole, 105 °C Max
- RS Stock No.:
- 274-5482
- Mfr. Part No.:
- RPA40-11012DFR
- Brand:
- Recom
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 9 units)*
£740.19
(exc. VAT)
£888.23
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1 unit(s) shipping from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £740.19 | £82.243 |
| 5 - 9 | £717.98 | £79.776 |
| 10 - 24 | £695.78 | £77.309 |
| 25 - 49 | £673.57 | £74.841 |
| 50 + | £651.37 | £72.374 |
*price indicative
- RS Stock No.:
- 274-5482
- Mfr. Part No.:
- RPA40-11012DFR
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage 1 | 12, -12V dc | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 160V dc | |
| Minimum Input Voltage | 110V dc | |
| Output Current 1 | 1666mA | |
| Output Current 2 | 1.666A | |
| Output Voltage 2 | 15V | |
| Mount Type | Through Hole | |
| Number of Outputs | 2 | |
| MTBF | 1253000h | |
| Output Voltage Adjustment Range | ±10 % | |
| Ripple and Noise | 150mV Pk-Pk | |
| Isolation Voltage | 3kV ac | |
| Number of Pins | 6 | |
| Maximum Output Power | 40W | |
| Width | 36.83mm | |
| Series | RPA40-FR | |
| Standards/Approvals | EN50155, UL/IEC/EN62368-1, EN45545-2 | |
| Weight | 32g | |
| Length | 56.4mm | |
| Depth | 15mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Efficiency | 88% | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 1 12, -12V dc | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 160V dc | ||
Minimum Input Voltage 110V dc | ||
Output Current 1 1666mA | ||
Output Current 2 1.666A | ||
Output Voltage 2 15V | ||
Mount Type Through Hole | ||
Number of Outputs 2 | ||
MTBF 1253000h | ||
Output Voltage Adjustment Range ±10 % | ||
Ripple and Noise 150mV Pk-Pk | ||
Isolation Voltage 3kV ac | ||
Number of Pins 6 | ||
Maximum Output Power 40W | ||
Width 36.83mm | ||
Series RPA40-FR | ||
Standards/Approvals EN50155, UL/IEC/EN62368-1, EN45545-2 | ||
Weight 32g | ||
Length 56.4mm | ||
Depth 15mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Efficiency 88% | ||
- COO (Country of Origin):
- TW
The Recom DC/DC converters have been especially designed for railway applications. With an wide input voltage range, this high power density converter is particularly suited for rolling stock rail applications. The trimmable outputs are also fully protect
Typical efficiency up to 90 percent
Six sided continuous shield
