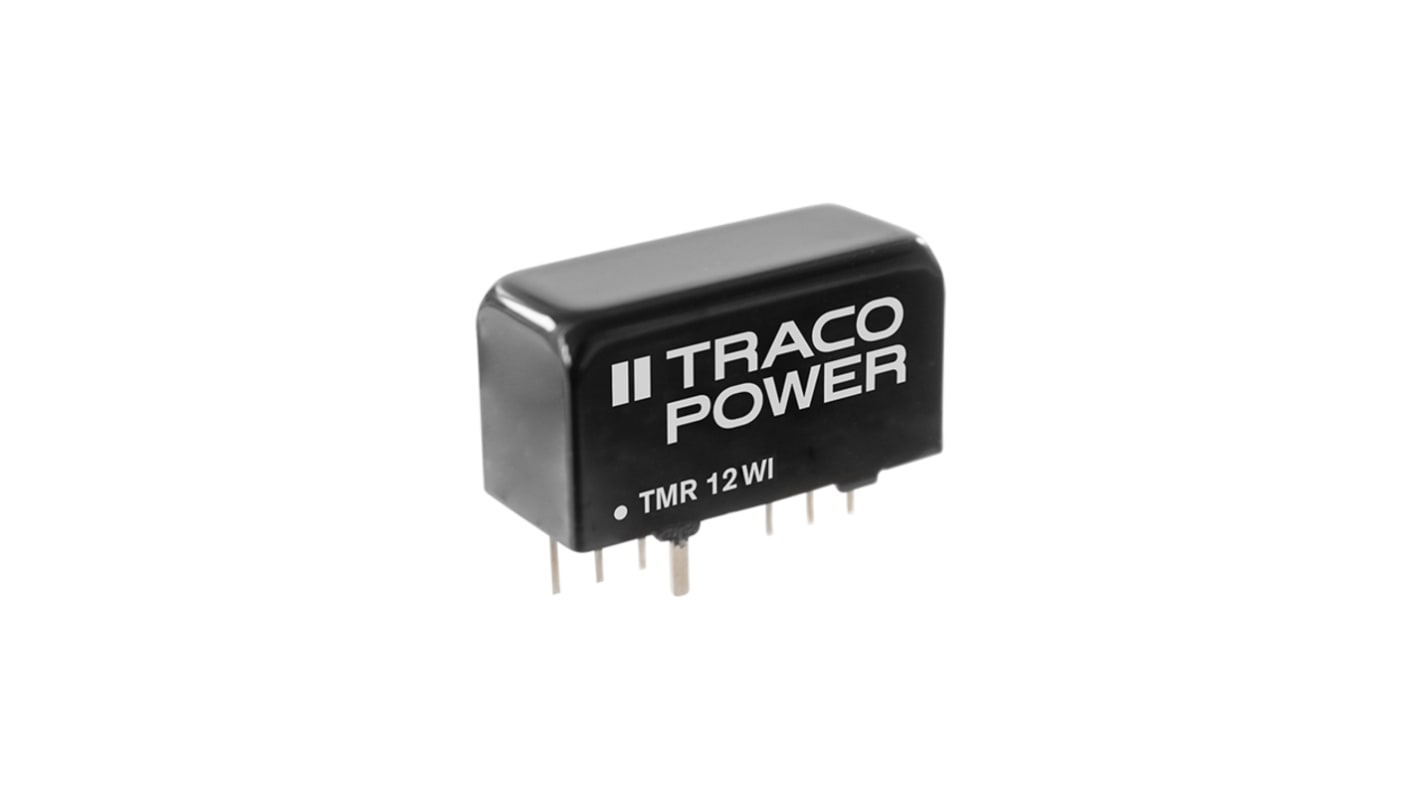

TRACOPOWER TMR 12WI DC-DC Converter, 15V dc/ 400mA Output, 9 → 36 V dc Input, 12W, PCB Mount, +85°C Max Temp
- RS Stock No.:
- 251-7291
- Mfr. Part No.:
- TMR 12-2423WI
- Brand:
- TRACOPOWER
1 In stock - FREE next working day delivery available
Added
Price Each (In a Tube of 10)
£317.89
(exc. VAT)
£381.47
(inc. VAT)
Units | Per unit | Per Tube* |
1 - 4 | £317.89 | £3,178.90 |
5 - 9 | £308.35 | £3,083.50 |
10 - 24 | £298.82 | £2,988.20 |
25 - 49 | £286.10 | £2,861.00 |
50 + | £273.39 | £2,733.90 |
*price indicative |
- RS Stock No.:
- 251-7291
- Mfr. Part No.:
- TMR 12-2423WI
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- TW
Product Details
The TRACOPOWER isolated 12 Watt DC/DC converter module with regulated output. The product offers a very high power density of 4.73W/cm³ in an ultra-compact SIP-8 metal package occupying only 2.0 cm² (0.3 square inch) of board space. The very compact dimensions of this converter make it an ideal solution for many space critical applications in communication equipment, instrumentation and industrial electronics.
Wide 4:1 input voltage ranges
I/O-isolation 1600 VDC
High efficiency (up to 90%) for low thermal loss
Operating temperature range -40°C to +85°C
Fully regulated outputs
Remote On/Off control
Indefinite short circuit protection
3-year product warranty
I/O-isolation 1600 VDC
High efficiency (up to 90%) for low thermal loss
Operating temperature range -40°C to +85°C
Fully regulated outputs
Remote On/Off control
Indefinite short circuit protection
3-year product warranty
Specifications
Attribute | Value |
---|---|
Output Voltage | 15V dc |
Input Voltage Range | 9 → 36 V dc |
Power Rating | 12W |
Input Voltage Nominal | 24 V DC |
Output Current | 400mA |
Mounting Type | PCB Mount |
Isolated | Yes |
Number of Outputs | 2 |
Output Voltage Adjustment Range | -15 → +15V dc |
Package | SIP 8 |
Isolation Voltage | 1.6kV dc |
Depth | 12mm |
Width | 9.6mm |
Length | 22mm |
Series | TMR 12WI |
Railway Approved | No |
Load Regulation | 1% |
Minimum Temperature | -40°C |
Standards Met | RoHS |
Medical Approved | No |
Maximum Temperature | +85°C |
Efficiency | 89% |
