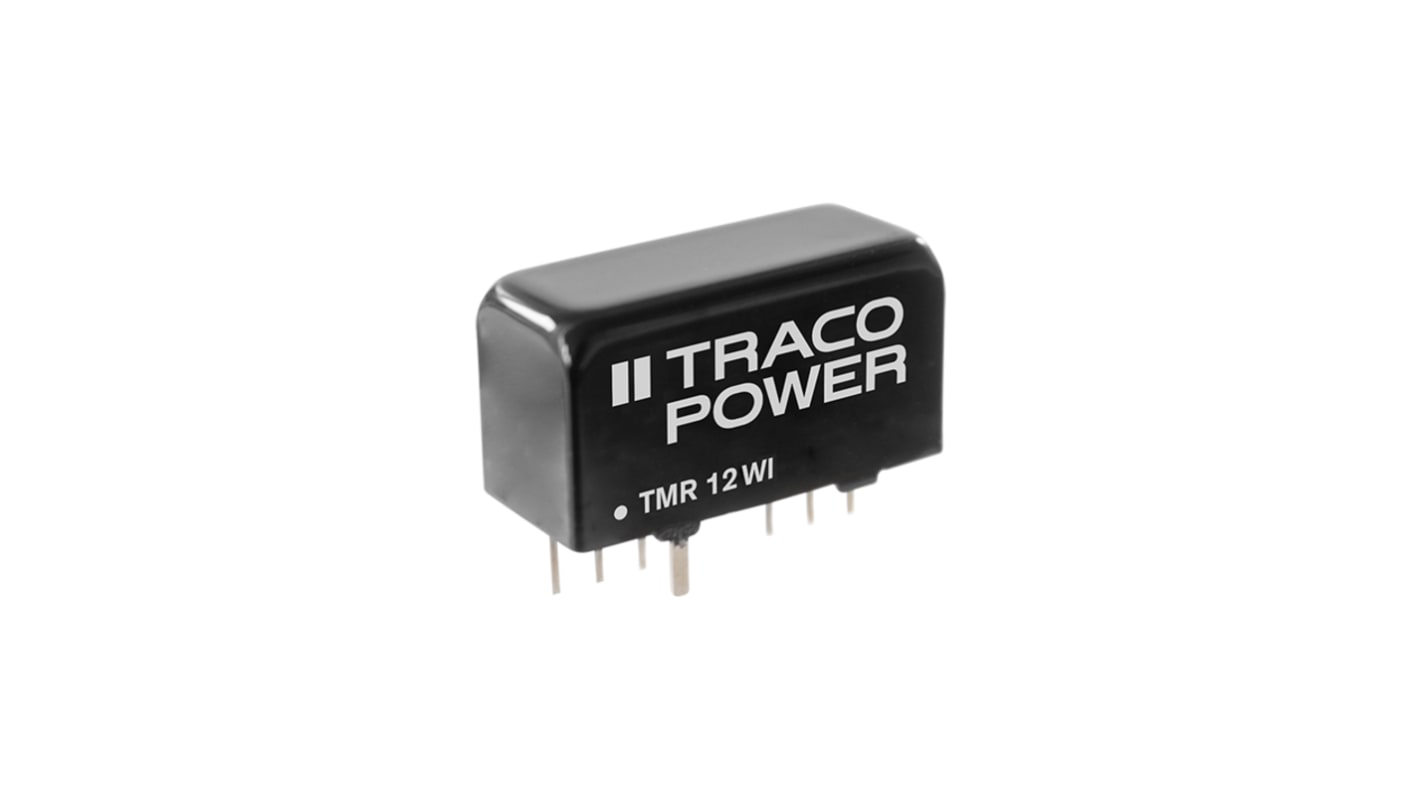

TRACOPOWER TMR 12WI DC/DC Converter, 24V dc/ 500 mA, 36V dc Input, 9V Input 12 W, Through Hole, 85 °C Max Temp -40 °C
- RS Stock No.:
- 251-7285
- Mfr. Part No.:
- TMR 12-2415WI
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£294.54
(exc. VAT)
£353.45
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 11 unit(s) ready to ship
- Plus 3 unit(s) shipping from 03 June 2026
- Plus 1 unit(s) shipping from 10 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 10 - 40 | £29.454 | £294.54 |
| 50 - 90 | £28.57 | £285.70 |
| 100 - 240 | £27.686 | £276.86 |
| 250 - 490 | £26.508 | £265.08 |
| 500 + | £25.33 | £253.30 |
*price indicative
- RS Stock No.:
- 251-7285
- Mfr. Part No.:
- TMR 12-2415WI
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage 1 | 24V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 9V | |
| Maximum Input Voltage | 36V dc | |
| Output Current 1 | 500mA | |
| Mount Type | Through Hole | |
| Input Ratio | 4:1 | |
| MTBF | 906000h | |
| Number of Outputs | 1 | |
| Number of Pins | 6 | |
| Isolation Voltage | 1.6kV dc | |
| Maximum Output Power | 12W | |
| Package Type | SIP-8 | |
| Depth | 12mm | |
| Standards/Approvals | No | |
| Width | 9.6mm | |
| Series | TMR 12WI | |
| Length | 22mm | |
| Maximum Operating Temperature | 85°C | |
| Efficiency | 90% | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 1 24V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 9V | ||
Maximum Input Voltage 36V dc | ||
Output Current 1 500mA | ||
Mount Type Through Hole | ||
Input Ratio 4:1 | ||
MTBF 906000h | ||
Number of Outputs 1 | ||
Number of Pins 6 | ||
Isolation Voltage 1.6kV dc | ||
Maximum Output Power 12W | ||
Package Type SIP-8 | ||
Depth 12mm | ||
Standards/Approvals No | ||
Width 9.6mm | ||
Series TMR 12WI | ||
Length 22mm | ||
Maximum Operating Temperature 85°C | ||
Efficiency 90% | ||
Minimum Operating Temperature -40°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TW
TRACOPOWER TMR 12WI Series DC-DC Converter, 9 to 36V DC Input Voltage Range, 12W Power Rating - TMR 12-2415WI
This DC-DC converter provides 12W of power with a regulated output of 24V DC in a compact SIP 8 package. It operates over an input voltage range of 9 to 36V, ensuring high efficiency and reliability.
Features & Benefits
• High power density of 4.73W/cm³ enhances space utilisation
• Wide input voltage range minimises system design constraints
• Efficiency of up to 90% reduces thermal loss
• Continuous short circuit protection ensures device safety
• I/O isolation voltage of 1600V increases operating reliability
Applications
• Used for communication equipment requiring stable power
• Ideal for instrumentation requiring compact power solutions
What is the operating temperature range?
It functions within -40 to +85°C.
Will it provide reliable power for sensitive electronics?
Yes, it features low load regulation for stable output.
