TRACOPOWER TEN 10WIRH Isolated DC-DC Converter, 5.1V dc/ 2 A, 160V dc Input, 36V Input 10 W, PCB, 75 °C Max Temp -40 °C

RS-stocknr.:: 249-7257
Fabrikantnummer:: TEN 10-11011WIRH
Fabrikant:: TRACOPOWER

TRACOPOWER TEN 10WIRH Isolated DC-DC Converter, 5.1V dc/ 2 A, 160V dc Input, 36V Input 10 W, PCB, 75 °C Max Temp -40 °C

Bulkkorting beschikbaar

Bekijk bulkkorting

Subtotaal (1 tube van 10 eenheden)*

€ 424,26

(excl. BTW)

€ 513,35

(incl. BTW)

GRATIS bezorging voor bestellingen vanaf € 90,00

Tijdelijk niet op voorraad

Verzending vanaf 11 februari 2027

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Tube(s)	Per tube	Per stuk*
1 - 4	€ 424,26	€ 42,426
5 - 9	€ 411,54	€ 41,154
10 - 24	€ 398,81	€ 39,881
25 - 49	€ 381,83	€ 38,183
50 +	€ 364,86	€ 36,486

*prijsindicatie

RS-stocknr.:: 249-7257
Fabrikantnummer:: TEN 10-11011WIRH
Fabrikant:: TRACOPOWER

Specificaties

Datasheets

Wetgeving en conformiteit

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	TRACOPOWER
	Output Voltage 1	5.1V dc
	Product Type	Isolated DC-DC Converter
	Minimum Input Voltage	36V
	Maximum Input Voltage	160V dc
	Output Current 1	2A
	Mount Type	PCB
	Input Ratio	4:1
	Number of Outputs	1
	MTBF	1648000h
	Number of Pins	10
	Isolation Voltage	3kV dc
	Maximum Output Power	10W
	Package Type	DIP-24
	Length	31.8mm
	Series	TEN 10WIRH
	Width	20.3mm
	Depth	10.6mm
	Standards/Approvals	No
	Minimum Operating Temperature	-40°C
	Efficiency	87%
	Maximum Operating Temperature	75°C

	Alles selecteren
	Merk TRACOPOWER
	Output Voltage 1 5.1V dc
	Product Type Isolated DC-DC Converter
	Minimum Input Voltage 36V
	Maximum Input Voltage 160V dc
	Output Current 1 2A
	Mount Type PCB
	Input Ratio 4:1
	Number of Outputs 1
	MTBF 1648000h
	Number of Pins 10
	Isolation Voltage 3kV dc
	Maximum Output Power 10W
	Package Type DIP-24
	Length 31.8mm
	Series TEN 10WIRH
	Width 20.3mm
	Depth 10.6mm
	Standards/Approvals No
	Minimum Operating Temperature -40°C
	Efficiency 87%
	Maximum Operating Temperature 75°C

Vrijgesteld

Land van herkomst:: TW

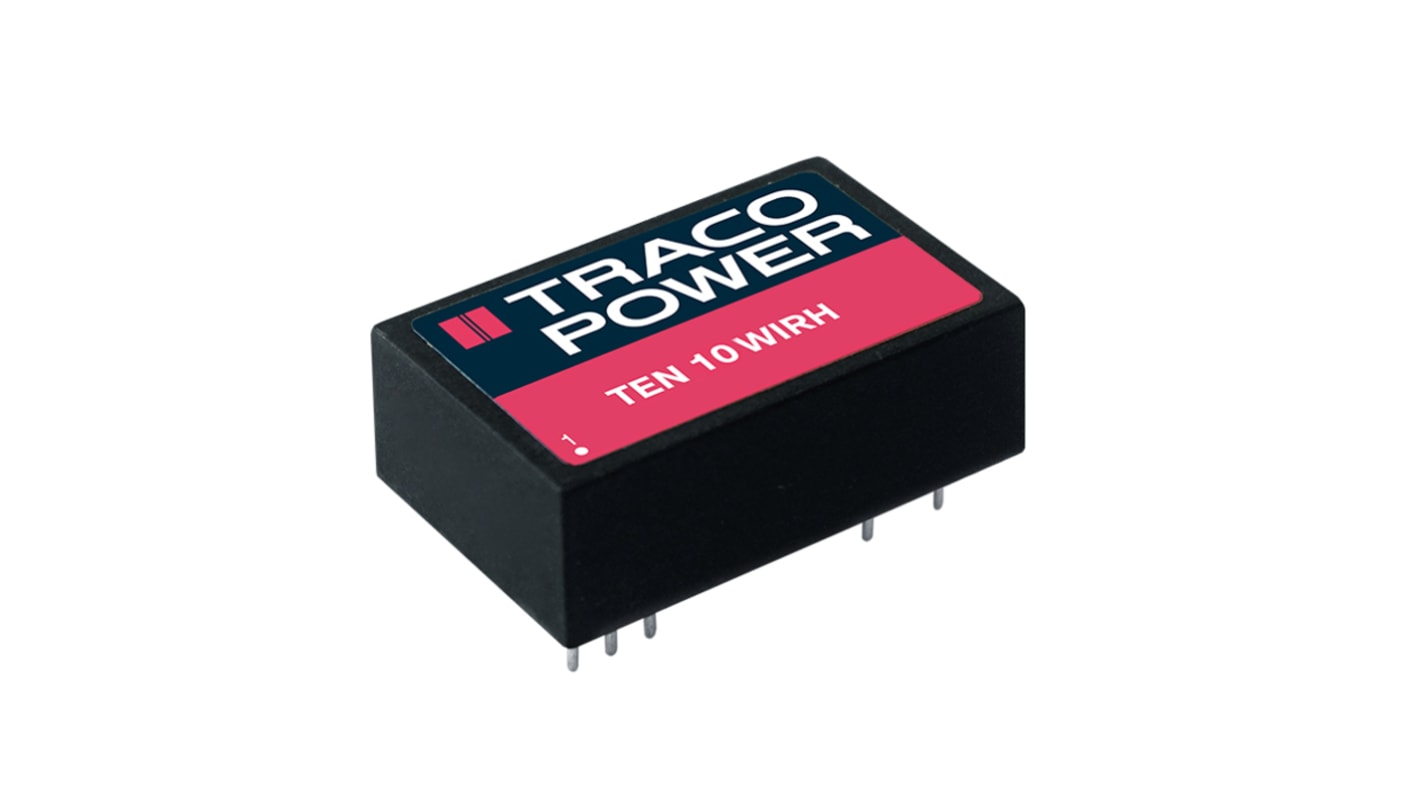

TRACOPOWER TEN 10WIRH Series Isolated DC-DC Converter, 5.1V DC Output Voltage, 10W Power Rating - TEN 10-11011WIRH

This isolated DC-DC converter offers dependable power conversion for various electronic circuits. With an input voltage range of 36 to 160V DC and a nominal output voltage of 5.1V DC, it suits multiple applications. Its solid construction provides consistent performance under challenging conditions, making it suitable for scenarios that require high dependability.

Features & Benefits

• Fully encapsulated DIP-24 package for improved protection

• 3000V isolation voltage enhances safety in critical situations

• 87% conversion efficiency to reduce energy loss

• Wide input voltage range accommodates different operating conditions

• Operates effectively from -40 to +75°C without derating

• Remote on/off functionality offers flexible control options

Applications

• Suitable for railway systems compliant with EN 50155

• Ideal for industrial automation requiring stable power

• Designed for high voltage settings necessitating reinforced isolation

• Useful in electronics requiring PCB mounting

What protection features does it include?

The design features undervoltage lockout, short-circuit protection, and overvoltage protection, ensuring safe operation and minimising damage during fault conditions.

Is it suitable for applications with high temperatures?

Yes, it operates effectively at temperatures up to +75°C, maintaining consistent performance in demanding environments without derating, according to the specifications.

What is the footprint for PCB mounting?

It has a DIP-24 footprint, compatible with various PCB designs while retaining a compact size.

Can this converter handle surge conditions?

The converter is built to endure surge voltages up to 200V DC for brief periods, enhancing its durability in fluctuating electrical environments.
