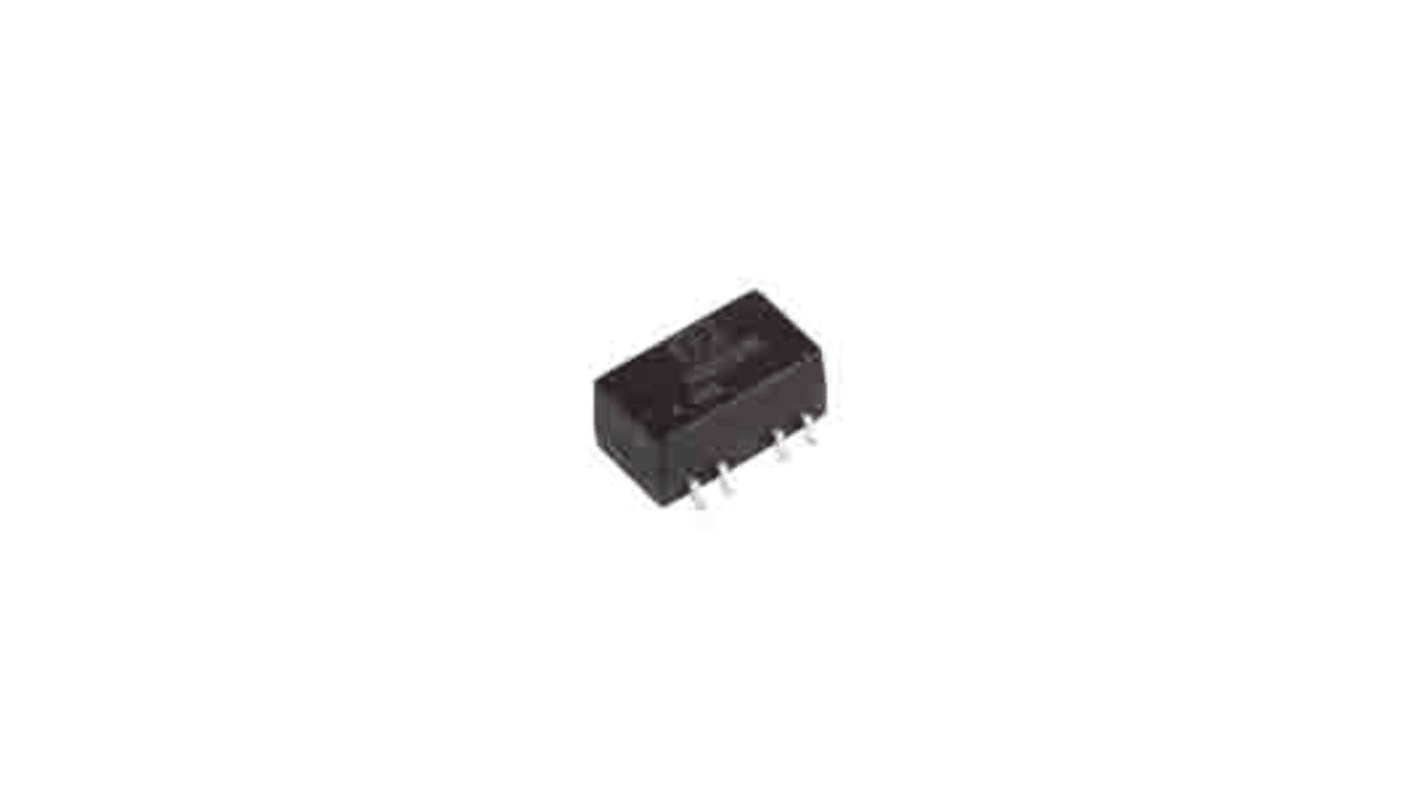

XP Power IAS01 DC-DC Converter, ±9V dc/ 56mA Output, 4.50 → 5.50 V dc Input, 1W, Surface Mount, +105°C Max Temp
- RS Stock No.:
- 213-4100
- Mfr. Part No.:
- IAS0105D09
- Brand:
- XP Power
Bulk discount available
Subtotal (1 unit)*
£3.60
(exc. VAT)
£4.32
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 7 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £3.60 |
| 5 - 9 | £3.48 |
| 10 - 24 | £3.38 |
| 25 - 49 | £3.27 |
| 50 + | £3.15 |
*price indicative
- RS Stock No.:
- 213-4100
- Mfr. Part No.:
- IAS0105D09
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Output Voltage | ±9V dc | |
| Input Voltage Range | 4.50 → 5.50 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 5 V dc | |
| Output Current | 56mA | |
| Mounting Type | Surface Mount | |
| Isolated | Yes | |
| Package | DIP | |
| Isolation Voltage | 1.5kV | |
| Length | 15.24mm | |
| Width | 8.5mm | |
| Series | IAS01 | |
| Load Regulation | 0.15 | |
| Maximum Temperature | +105°C | |
| Minimum Temperature | -40°C | |
| Efficiency | 0.83 | |
Select all | ||
|---|---|---|
Brand XP Power | ||
Output Voltage ±9V dc | ||
Input Voltage Range 4.50 → 5.50 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 5 V dc | ||
Output Current 56mA | ||
Mounting Type Surface Mount | ||
Isolated Yes | ||
Package DIP | ||
Isolation Voltage 1.5kV | ||
Length 15.24mm | ||
Width 8.5mm | ||
Series IAS01 | ||
Load Regulation 0.15 | ||
Maximum Temperature +105°C | ||
Minimum Temperature -40°C | ||
Efficiency 0.83 | ||
The XP Power IAS01 series is an ideal solution for isolating voltage rails in a distributed power supply architecture such as analogue, digital, data and relay circuits. It has single unregulated output voltage of ± 9 V. This product offers a compact design with high efficiency, 1.5kV isolation with 3.0kV optional.
Continuous short circuit protection
Operating temperature ranges from -40°C to +105°C
Operating temperature ranges from -40°C to +105°C
