TRACOPOWER TEP 60WIR DC/DC Converter, 12V dc/ 2.5 A, 36V dc Input, 9V Input 60 W, Through Hole, 90 °C Max Temp -40 °C
- RS Stock No.:
- 210-2520
- Distrelec Article No.:
- 302-24-782
- Mfr. Part No.:
- TEN 60-2422WIR
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
£105.71
(exc. VAT)
£126.85
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £105.71 |
| 5 - 9 | £102.54 |
| 10 - 24 | £99.36 |
| 25 - 49 | £95.14 |
| 50 + | £90.91 |
*price indicative
- RS Stock No.:
- 210-2520
- Distrelec Article No.:
- 302-24-782
- Mfr. Part No.:
- TEN 60-2422WIR
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage 1 | 12V dc | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 36V dc | |
| Minimum Input Voltage | 9V | |
| Output Current 1 | 2.5A | |
| Output Current 2 | 2.5A | |
| Output Voltage 2 | -12V dc | |
| Mount Type | Through Hole | |
| Input Ratio | 4:1 | |
| MTBF | 724500h | |
| Number of Outputs | 5 | |
| Output Voltage Adjustment Range | 10 % | |
| Ripple and Noise | 100mV Pk-Pk | |
| Number of Pins | 8 | |
| Isolation Voltage | 3kV | |
| Maximum Output Power | 60W | |
| Package Type | Encapsulated | |
| Weight | 66.9g | |
| Length | 50.8mm | |
| Width | 40.7mm | |
| Series | TEP 60WIR | |
| Standards/Approvals | No | |
| Depth | 25.4mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 90°C | |
| Efficiency | 0.91% | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 1 12V dc | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 36V dc | ||
Minimum Input Voltage 9V | ||
Output Current 1 2.5A | ||
Output Current 2 2.5A | ||
Output Voltage 2 -12V dc | ||
Mount Type Through Hole | ||
Input Ratio 4:1 | ||
MTBF 724500h | ||
Number of Outputs 5 | ||
Output Voltage Adjustment Range 10 % | ||
Ripple and Noise 100mV Pk-Pk | ||
Number of Pins 8 | ||
Isolation Voltage 3kV | ||
Maximum Output Power 60W | ||
Package Type Encapsulated | ||
Weight 66.9g | ||
Length 50.8mm | ||
Width 40.7mm | ||
Series TEP 60WIR | ||
Standards/Approvals No | ||
Depth 25.4mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 90°C | ||
Efficiency 0.91% | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TW

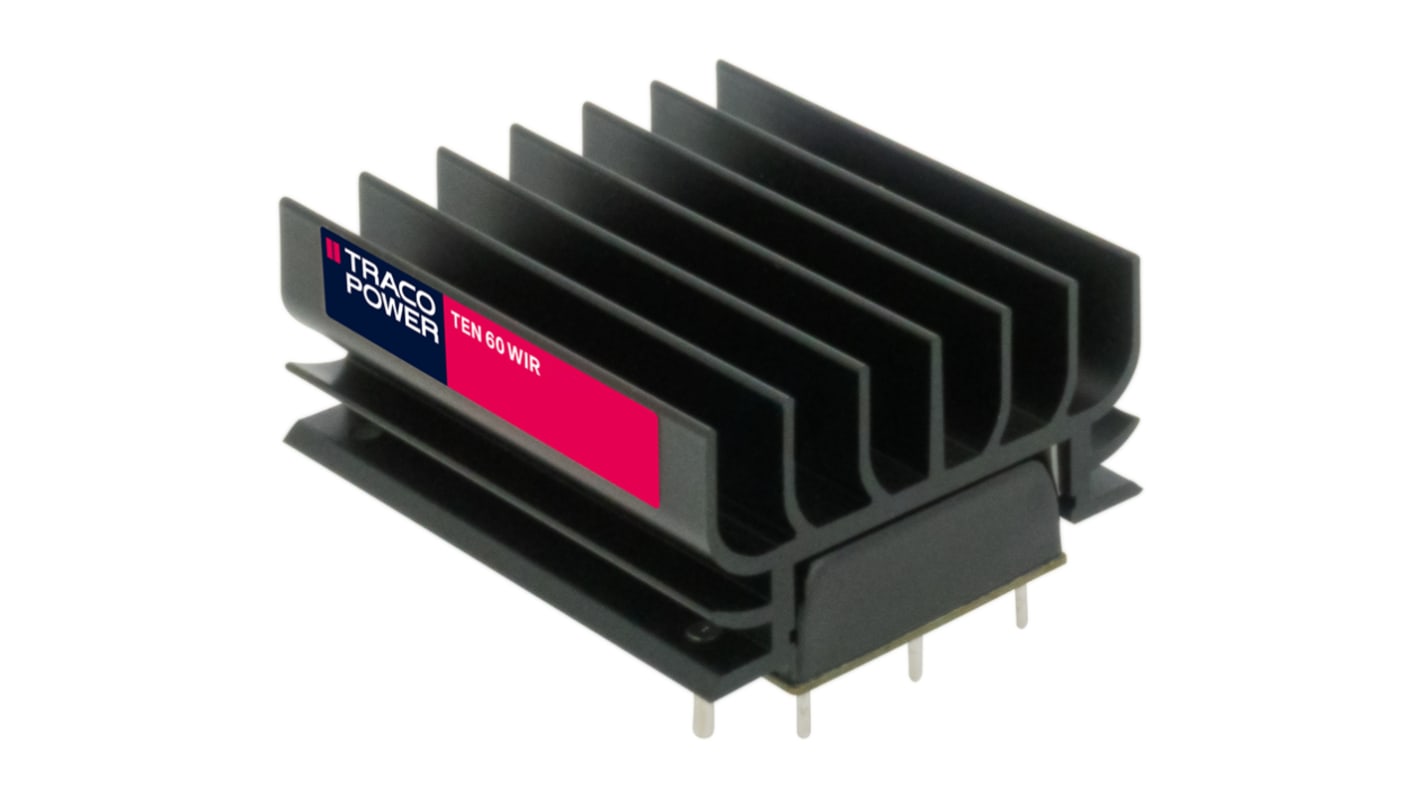

The TRACO POWER TEN 60WIR is a ruggedized 60 Watt railway approved DC/DC converter series with a wide 4:1 input voltage range and increased resistance against electromagnetic interference, shock/vibration and thermal shock. The standard version comes with a preassembled heatsink which was specifically designed for this 2” x 1” metal package converter. Together with a high efficiency of up to 92% this gives the converter an effective operating temperature range of -40° to +70°C without derating.
Operating temperature range –40°C to +90°C
I/O-isolation 3’000 VDC
Efficiency 92%
Under voltage lock out circuit
Adjustable output voltage and Remote On/Off
EN 50155 and EN 61373 approval for railway applications
Qualification for fire behaviour according to EN 45545-2
