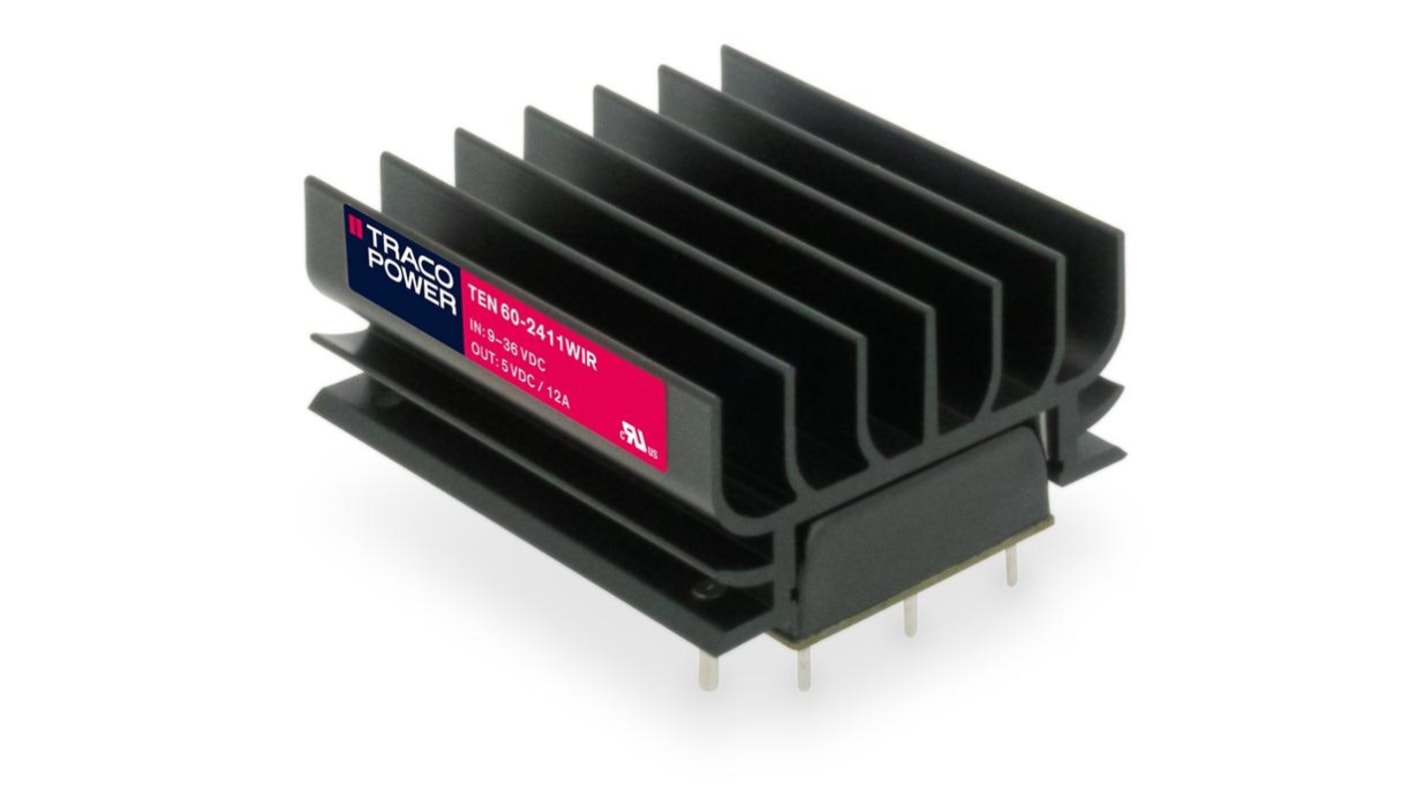

TRACOPOWER TEP 60WIR DC/DC Converter, 5V dc/ 12 A, 36V dc Input, 9V Input 60 W, PCB, 90 °C Max Temp -40 °C Min Temp,

RS Stock No.:: 210-2514
Distrelec Article No.:: 302-24-777
Mfr. Part No.:: TEN 60-2411WIR
Brand:: TRACOPOWER

TRACOPOWER TEP 60WIR DC/DC Converter, 5V dc/ 12 A, 36V dc Input, 9V Input 60 W, PCB, 90 °C Max Temp -40 °C Min Temp,

Subtotal (1 unit)*

£109.99

(exc. VAT)

£131.99

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

2 unit(s) shipping from 20 May 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£109.99

*price indicative

RS Stock No.:: 210-2514
Distrelec Article No.:: 302-24-777
Mfr. Part No.:: TEN 60-2411WIR
Brand:: TRACOPOWER

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TRACOPOWER
	Product Type	DC/DC Converter
	Output Voltage 1	5V dc
	Maximum Input Voltage	36V dc
	Minimum Input Voltage	9V
	Output Current 1	12A
	Output Current 2	12A
	Mount Type	PCB
	Input Ratio	4:1
	Number of Outputs	1
	MTBF	724500h
	Ripple and Noise	75mV Pk-Pk
	Output Voltage Adjustment Range	20 %
	Number of Pins	8
	Isolation Voltage	3kV
	Package Type	Encapsulated
	Maximum Output Power	60W
	Depth	25.4mm
	Series	TEP 60WIR
	Width	40.7mm
	Weight	66.9g
	Standards/Approvals	No
	Length	50.8mm
	Maximum Operating Temperature	90°C
	Efficiency	91%
	Minimum Operating Temperature	-40°C

	Select all
	Brand TRACOPOWER
	Product Type DC/DC Converter
	Output Voltage 1 5V dc
	Maximum Input Voltage 36V dc
	Minimum Input Voltage 9V
	Output Current 1 12A
	Output Current 2 12A
	Mount Type PCB
	Input Ratio 4:1
	Number of Outputs 1
	MTBF 724500h
	Ripple and Noise 75mV Pk-Pk
	Output Voltage Adjustment Range 20 %
	Number of Pins 8
	Isolation Voltage 3kV
	Package Type Encapsulated
	Maximum Output Power 60W
	Depth 25.4mm
	Series TEP 60WIR
	Width 40.7mm
	Weight 66.9g
	Standards/Approvals No
	Length 50.8mm
	Maximum Operating Temperature 90°C
	Efficiency 91%
	Minimum Operating Temperature -40°C

RoHS Status: Exempt

TRACOPOWER TEP 60WIR Series DC-DC Converter, 0.91 Efficiency, 3kV Isolation Voltage - TEN 60-2411WIR

This isolated DC-DC converter offers a solution for power supply requirements across various industrial sectors. It features a broad input voltage range and high efficiency, suitable for environments like railway systems. Its compact form factor enhances usability in space-restricted situations, ensuring effective operation in both standard and rugged applications.

Features & Benefits

• Provides a stable 5V DC output for critical systems

• Accepts a wide input voltage range of 9 to 36V DC

• Achieves efficiency up to 91% for reduced energy loss

• Designed for straightforward through-hole mounting

• Allows adjustable output voltage to meet specific needs

• Incorporates 3kV I/O isolation for enhanced operational safety

Applications

• Powers onboard systems in railway transport

• Suitable for automation and control systems requiring stability

• Ideal for telecommunications needing dependable power

• Utilised in harsh environments that demand high-performance equipment

What is the maximum input voltage this can handle?

It accommodates an input voltage range of up to 36V DC.

Can this be adjusted for different output voltages?

Yes, it allows for adjustable output voltage settings.

How does this perform in high-temperature environments?

It operates efficiently within a temperature range of -40°C to +85°C.

What type of mounting is recommended for this converter?

It is designed for through-hole mounting, facilitating easy installation.

Is there any special protection for electrical surges?

Yes, it incorporates under-voltage lockout and short circuit protection.
