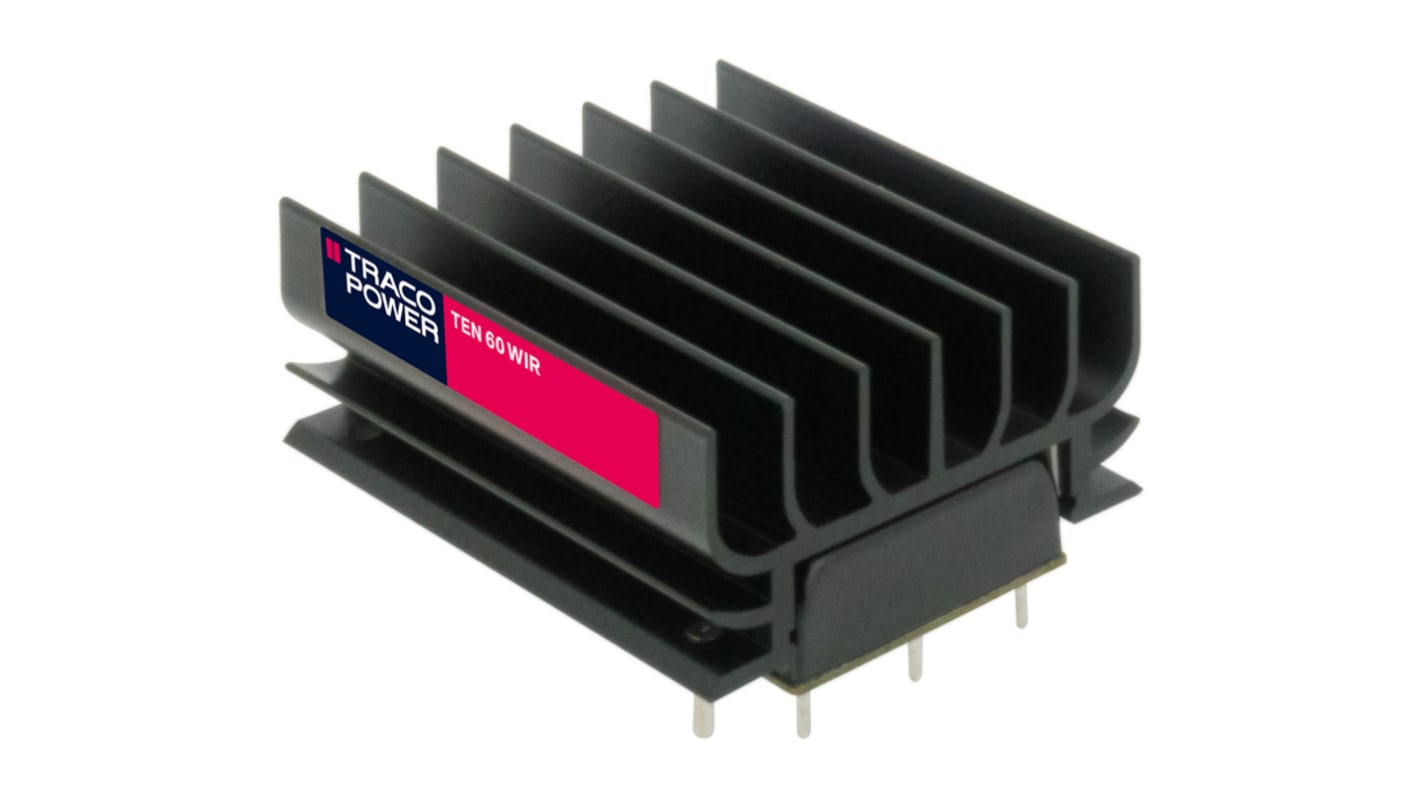

TRACOPOWER TEP 60WIR DC/DC Converter, 48V dc/ 1.25 A, 36V dc Input, 9V Input 60 W, PCB, 90 °C Max Temp -40 °C Min Temp,

RS Stock No.:: 210-2519
Distrelec Article No.:: 302-24-781
Mfr. Part No.:: TEN 60-2418WIR
Brand:: TRACOPOWER

TRACOPOWER TEP 60WIR DC/DC Converter, 48V dc/ 1.25 A, 36V dc Input, 9V Input 60 W, PCB, 90 °C Max Temp -40 °C Min Temp,

Subtotal (1 unit)*

£91.19

(exc. VAT)

£109.43

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

6 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£91.19

*price indicative

RS Stock No.:: 210-2519
Distrelec Article No.:: 302-24-781
Mfr. Part No.:: TEN 60-2418WIR
Brand:: TRACOPOWER

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TRACOPOWER
	Output Voltage 1	48V dc
	Product Type	DC/DC Converter
	Maximum Input Voltage	36V dc
	Minimum Input Voltage	9V
	Output Current 1	1.25A
	Output Current 2	1.25A
	Mount Type	PCB
	Input Ratio	4:1
	MTBF	724500h
	Number of Outputs	1
	Output Voltage Adjustment Range	10 %
	Ripple and Noise	300mV Pk-Pk
	Isolation Voltage	3kV
	Number of Pins	8
	Package Type	Encapsulated
	Maximum Output Power	60W
	Series	TEP 60WIR
	Width	40.7mm
	Standards/Approvals	No
	Weight	66.9g
	Length	50.8mm
	Depth	25.4mm
	Efficiency	92%
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	90°C

	Select all
	Brand TRACOPOWER
	Output Voltage 1 48V dc
	Product Type DC/DC Converter
	Maximum Input Voltage 36V dc
	Minimum Input Voltage 9V
	Output Current 1 1.25A
	Output Current 2 1.25A
	Mount Type PCB
	Input Ratio 4:1
	MTBF 724500h
	Number of Outputs 1
	Output Voltage Adjustment Range 10 %
	Ripple and Noise 300mV Pk-Pk
	Isolation Voltage 3kV
	Number of Pins 8
	Package Type Encapsulated
	Maximum Output Power 60W
	Series TEP 60WIR
	Width 40.7mm
	Standards/Approvals No
	Weight 66.9g
	Length 50.8mm
	Depth 25.4mm
	Efficiency 92%
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 90°C

RoHS Status: Exempt

COO (Country of Origin):: TW

TRACOPOWER TEP 60WIR Series DC-DC Converter, 0.92 Efficiency, 3kV Isolation Voltage - TEN 60-2418WIR

This DC-DC converter efficiently transforms an input voltage range of 9 to 36V DC into a stable output of 48V DC. It is suitable for applications that require dependable power supply solutions, particularly in the railway sector due to its robust design and adherence to strict electrical standards.

Features & Benefits

• Supports a wide input voltage range for various applications

• High efficiency minimises power loss during conversion

• Isolated design enhances safety in sensitive environments

• Adjustable output voltage meets different load requirements

• Compact design facilitates easy integration into limited spaces

• Railway approved, ensuring compliance with industry regulations

Applications

• Power conditioning in railway infrastructure

• Control systems in railway operations

• Automation processes in transportation vehicles

What is the maximum temperature limit for operation?

The converter can operate effectively up to +85°C for consistent performance.

How does the output voltage adjustment work?

The output voltage can be adjusted from -10% to +10% using an external trim resistor.

Is this suitable for outdoor use?

It is designed primarily for enclosed applications; outdoor suitability depends on housing.

What happens if I exceed the voltage input limit?

Exceeding the input voltage can damage the converter, leading to failure.

Can this be used in medical applications?

No, it is not approved for medical applications, only for railway use.
