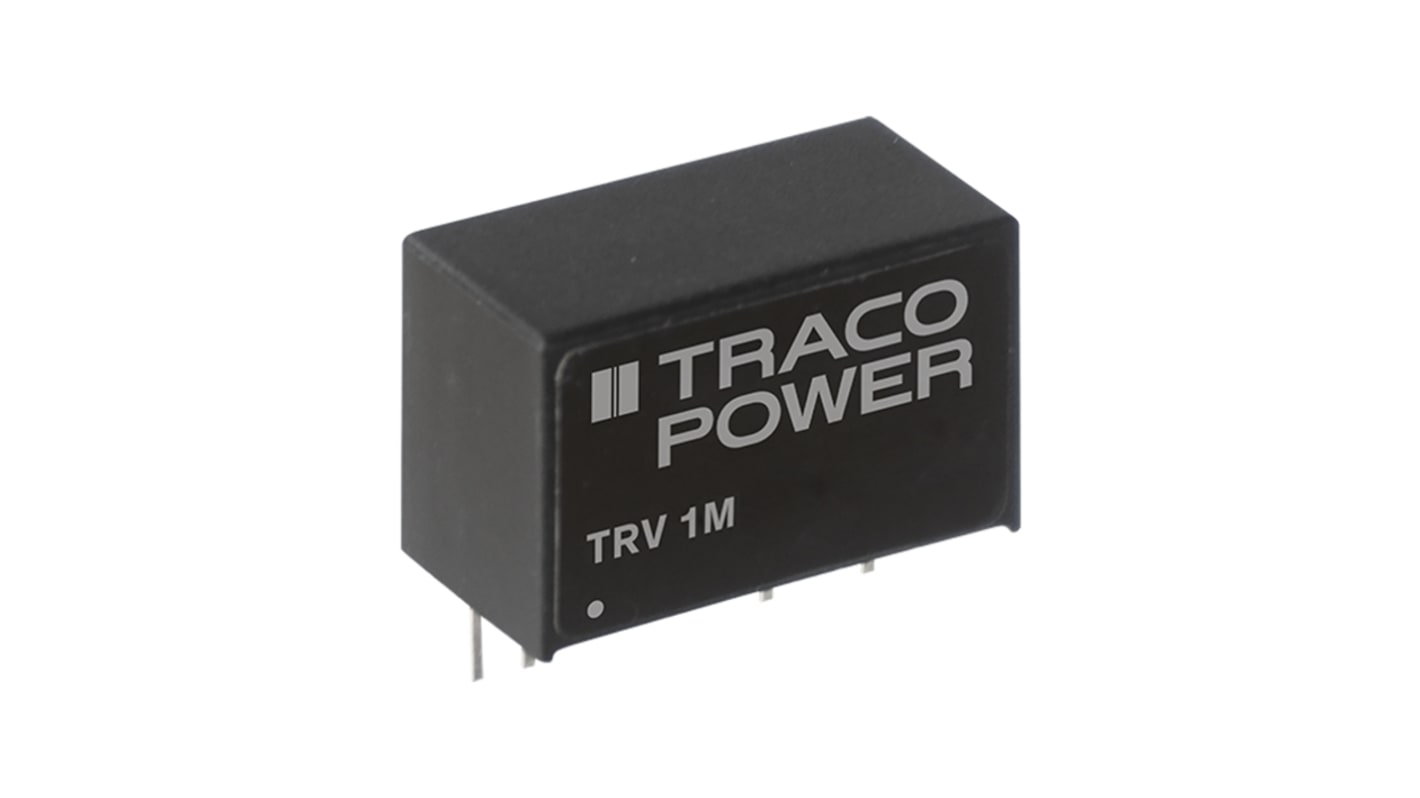

TRACOPOWER TRV 1M DC/DC Converter, 12V dc/ 83 mA, 14.4V dc Input, 9.6V Input 1 W, Through Hole, 85 °C Max Temp -40 °C
- RS Stock No.:
- 209-9876
- Mfr. Part No.:
- TRV 1-1212M
- Brand:
- TRACOPOWER
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 5 units)*
£56.55
(exc. VAT)
£67.86
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £56.55 | £11.31 |
| 5 - 9 | £54.86 | £10.972 |
| 10 - 24 | £53.18 | £10.636 |
| 25 - 49 | £50.90 | £10.18 |
| 50 + | £48.64 | £9.728 |
*price indicative
- RS Stock No.:
- 209-9876
- Mfr. Part No.:
- TRV 1-1212M
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 12V dc | |
| Minimum Input Voltage | 9.6V | |
| Maximum Input Voltage | 14.4V dc | |
| Output Current 1 | 83mA | |
| Mount Type | Through Hole | |
| Number of Outputs | 1 | |
| MTBF | 19360000h | |
| Ripple and Noise | 100mV Pk-Pk | |
| Output Voltage Adjustment Range | 12 V dc | |
| Isolation Voltage | 5kV | |
| Number of Pins | 5 | |
| Maximum Output Power | 1W | |
| Package Type | SIP | |
| Length | 19.6mm | |
| Weight | 4.8g | |
| Depth | 12.5mm | |
| Standards/Approvals | RoHS | |
| Width | 9.9mm | |
| Series | TRV 1M | |
| Maximum Operating Temperature | 85°C | |
| Efficiency | 84% | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type DC/DC Converter | ||
Output Voltage 1 12V dc | ||
Minimum Input Voltage 9.6V | ||
Maximum Input Voltage 14.4V dc | ||
Output Current 1 83mA | ||
Mount Type Through Hole | ||
Number of Outputs 1 | ||
MTBF 19360000h | ||
Ripple and Noise 100mV Pk-Pk | ||
Output Voltage Adjustment Range 12 V dc | ||
Isolation Voltage 5kV | ||
Number of Pins 5 | ||
Maximum Output Power 1W | ||
Package Type SIP | ||
Length 19.6mm | ||
Weight 4.8g | ||
Depth 12.5mm | ||
Standards/Approvals RoHS | ||
Width 9.9mm | ||
Series TRV 1M | ||
Maximum Operating Temperature 85°C | ||
Efficiency 84% | ||
Minimum Operating Temperature -40°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TW
TRACOPOWER TRV 1M Series DC-DC Converter, 9.6 to 14.4V DC Input Voltage Range, 1W Power Rating - TRV 1-1212M
This DC-DC converter is suitable for medical and industrial uses, providing an efficient power solution. It accepts an input voltage range of 9.6 to 14.4V DC and outputs a steady 12V DC with a power rating of 1W. Its compact SIP 9 package makes it ideal for installations where space is limited.
Features & Benefits
• Offers reinforced isolation of 5000V AC for safety
• Continuous short circuit protection for enhanced reliability
• Efficiency of 84% optimises energy usage
• Low leakage current below 2μA protects sensitive devices
• Complies with IEC/EN/UL 62368-1 standards
Applications
• Suitable for medical devices that require strict safety standards
• Ideal for automation systems needing regulated power supply
• Fit for sensitive equipment in industrial settings
• Useful in electronic projects where space and reliability are crucial
Can it operate at extreme temperatures?
Yes, it operates between -40°C and +95°C without derating.
Will it protect connected devices during a fault condition?
Yes, it includes continuous short circuit protection for safety.
Can I use it in low-power electronic projects?
It is suitable for projects with power requirements up to 1W.
