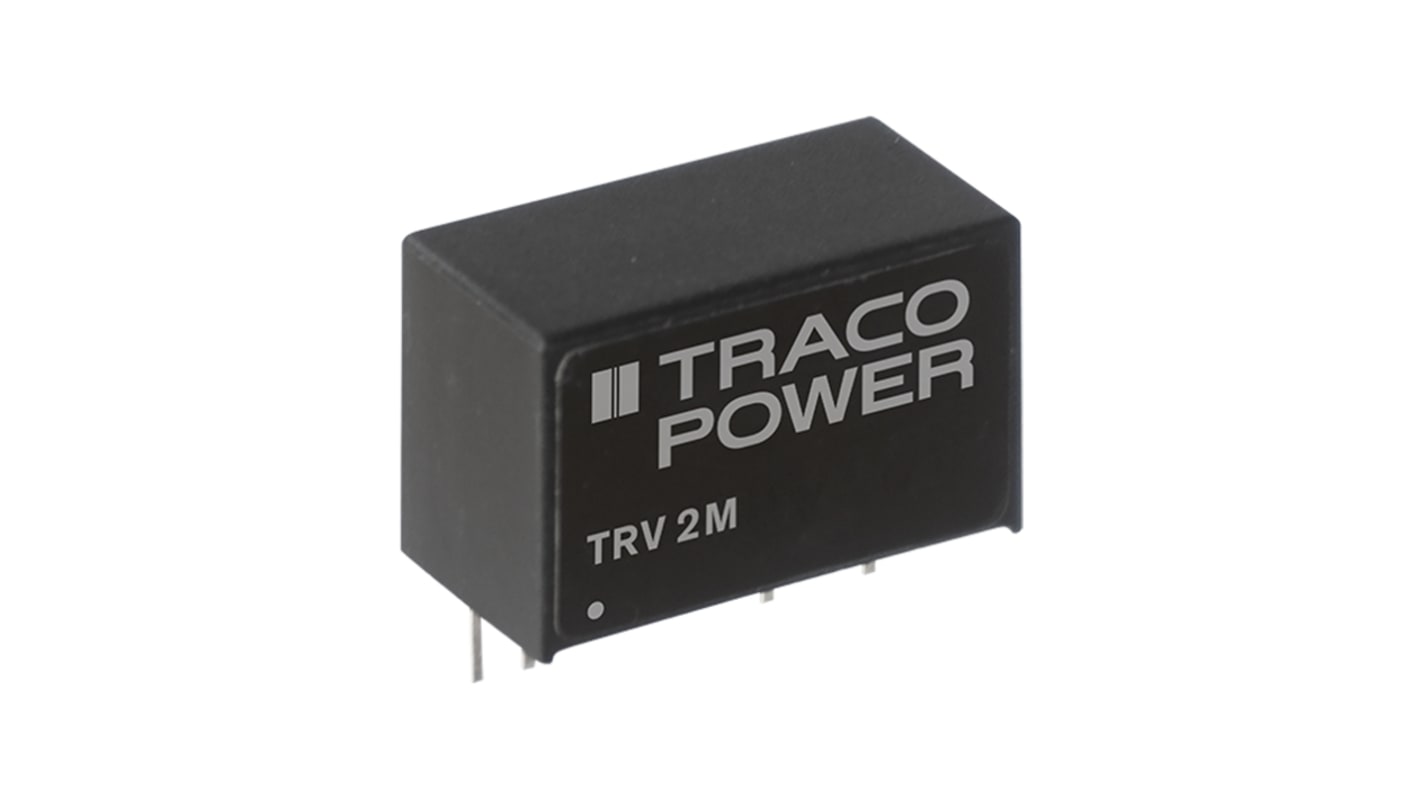

TRACOPOWER TRV 2M DC-DC Converter, 12V dc/ 167mA Output, 9.6 → 14.4 V dc Input, 2W, PCB Mount, +80°C Max Temp
- RS Stock No.:
- 252-6509
- Mfr. Part No.:
- TRV 2-1212M
- Brand:
- TRACOPOWER
Subtotal (1 unit)*
£14.25
(exc. VAT)
£17.10
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
- Plus 999,999,993 unit(s) shipping from 20 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £14.25 |
*price indicative
- RS Stock No.:
- 252-6509
- Mfr. Part No.:
- TRV 2-1212M
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 12V dc | |
| Input Voltage Range | 9.6 → 14.4 V dc | |
| Power Rating | 2W | |
| Input Voltage Nominal | 12 V dc | |
| Output Current | 167mA | |
| Mounting Type | PCB Mount | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SIP 9 | |
| Isolation Voltage | 5kV dc | |
| Series | TRV 2M | |
| Railway Approved | No | |
| Load Regulation | 4% | |
| Minimum Temperature | -40°C | |
| Standards Met | EN 62368-1, IEC 62368-1 | |
| Maximum Temperature | +80°C | |
| Medical Approved | Yes | |
| Efficiency | 84% | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 12V dc | ||
Input Voltage Range 9.6 → 14.4 V dc | ||
Power Rating 2W | ||
Input Voltage Nominal 12 V dc | ||
Output Current 167mA | ||
Mounting Type PCB Mount | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP 9 | ||
Isolation Voltage 5kV dc | ||
Series TRV 2M | ||
Railway Approved No | ||
Load Regulation 4% | ||
Minimum Temperature -40°C | ||
Standards Met EN 62368-1, IEC 62368-1 | ||
Maximum Temperature +80°C | ||
Medical Approved Yes | ||
Efficiency 84% | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TW
The TRACOPOWER TRV 2M series 2 watt DC/DC converter in a compact SIP-9 package with reinforced isolation of 5000 VAC for medical and industrial applications. With a continuous short circuit protection and a low leakage current of less than 2 μA, this converter is especially suited to protect any connected interfaces or applied parts to patients. Featuring almost fully regulated outputs this series provides great level of regulation without affecting the cost efficiency. It is an ideal solution for applications where an unregulated DC/DC converter would not meet your regulation requirements but cost still is a critical factor.
I/O isolation 5000 VAC (reinforced)
Wide 1.5:1 input voltage range
Operating temperature range -40 to +80 °C without derating
Certification according to IEC/EN/ES 60601-1 3rd edition for 2xMOPP and IEC/EN/UL 62368-1
Short circuit protection
Regulated outputs
Low leakage current < 2 μA
Efficiency up to 84 %
Operation up to 5000 m altitude
5-year product warranty
Wide 1.5:1 input voltage range
Operating temperature range -40 to +80 °C without derating
Certification according to IEC/EN/ES 60601-1 3rd edition for 2xMOPP and IEC/EN/UL 62368-1
Short circuit protection
Regulated outputs
Low leakage current < 2 μA
Efficiency up to 84 %
Operation up to 5000 m altitude
5-year product warranty
