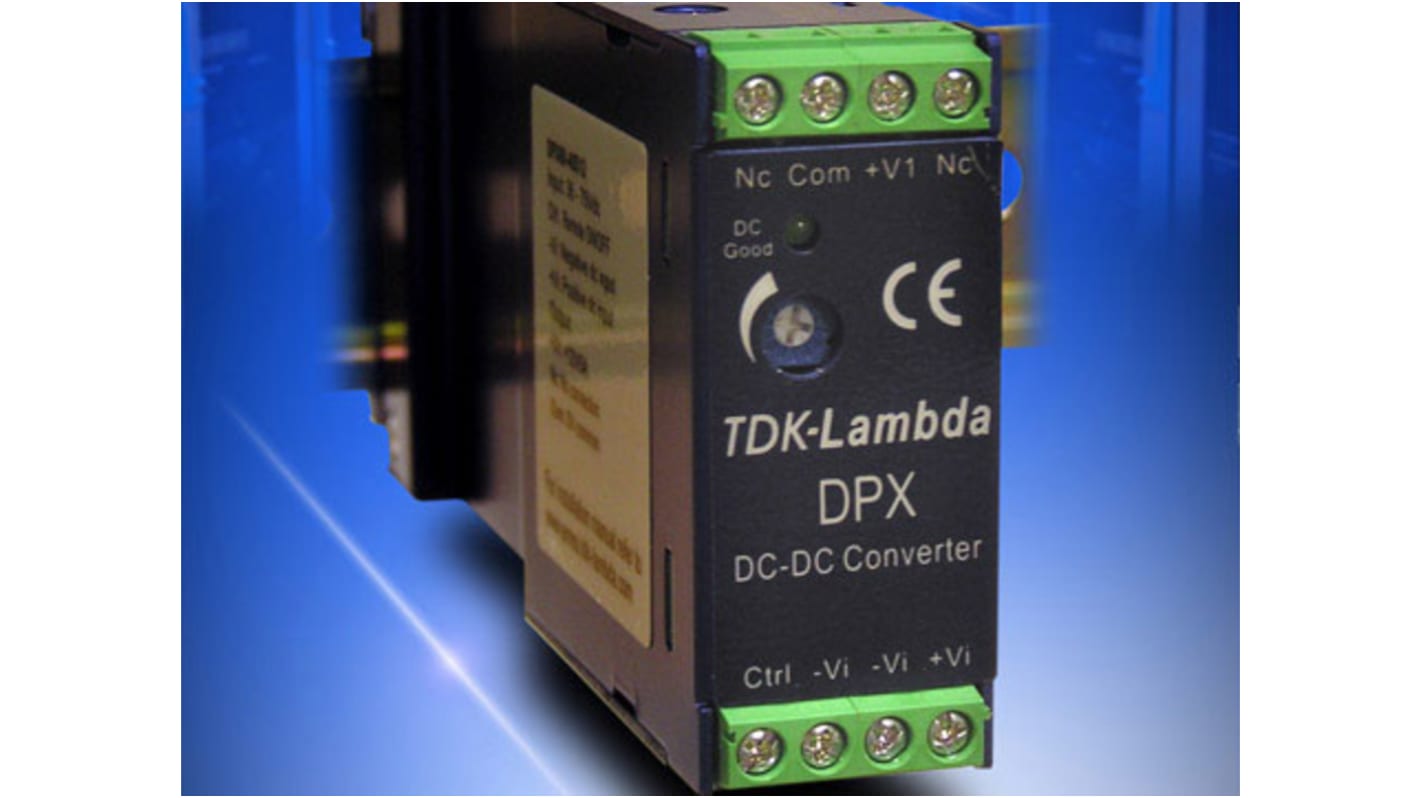

TDK-Lambda DPX DC/DC Converter, 12V dc/ 5 A, 75V dc Input, 48V dc Input, DIN Rail 60 W, 85 °C Max Temp -40 °C Min Temp,
- RS Stock No.:
- 204-0485
- Mfr. Part No.:
- DPX60-48S12
- Brand:
- TDK-Lambda
Bulk discount available
Subtotal (1 unit)*
£169.13
(exc. VAT)
£202.96
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 8 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £169.13 |
| 5 - 9 | £164.06 |
| 10 - 24 | £158.99 |
| 25 - 49 | £153.91 |
| 50 + | £148.84 |
*price indicative
- RS Stock No.:
- 204-0485
- Mfr. Part No.:
- DPX60-48S12
- Brand:
- TDK-Lambda
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK-Lambda | |
| Output Voltage 1 | 12V dc | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 75V dc | |
| Minimum Input Voltage | 48V dc | |
| Output Current 1 | 5A | |
| Output Voltage 2 | 15V | |
| Mount Type | DIN Rail | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | ±10 % | |
| Ripple and Noise | 100mV | |
| Number of Pins | 8 | |
| Isolation Voltage | 1.6kV | |
| Package Type | All In One | |
| Maximum Output Power | 60W | |
| Depth | 125mm | |
| Width | 25.4mm | |
| Standards/Approvals | CE | |
| Weight | 182g | |
| Length | 125mm | |
| Series | DPX | |
| Maximum Operating Temperature | 85°C | |
| Efficiency | 0.85% | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand TDK-Lambda | ||
Output Voltage 1 12V dc | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 75V dc | ||
Minimum Input Voltage 48V dc | ||
Output Current 1 5A | ||
Output Voltage 2 15V | ||
Mount Type DIN Rail | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range ±10 % | ||
Ripple and Noise 100mV | ||
Number of Pins 8 | ||
Isolation Voltage 1.6kV | ||
Package Type All In One | ||
Maximum Output Power 60W | ||
Depth 125mm | ||
Width 25.4mm | ||
Standards/Approvals CE | ||
Weight 182g | ||
Length 125mm | ||
Series DPX | ||
Maximum Operating Temperature 85°C | ||
Efficiency 0.85% | ||
Minimum Operating Temperature -40°C | ||
The TDK-Lambda DPX DIN rail mount DC-DC converters are ideal for generating additional, isolated and regulated voltages from the common used 24Vdc DIN rail bus. Fully protected and with Class B EMC performance, the DPX is available with single, dual or triple output models and power levels from 15 to 60W. All commonly requested voltages are covered by the series, and the units will operate from 12V, 24V or 48V nominal dc inputs with either 2:1 or 4:1 ranges.
Meet EN55022 Class B
Input fuse protection
Input reverse polarity protection
Input in-rush current protection
Overload and short circuit protection
Over voltage protection
Reliable Snap-On for DIN rail TS-35/7.5 or TS-35/15
I/O-isolation 1600 VDC
Output DC-OK indicator
