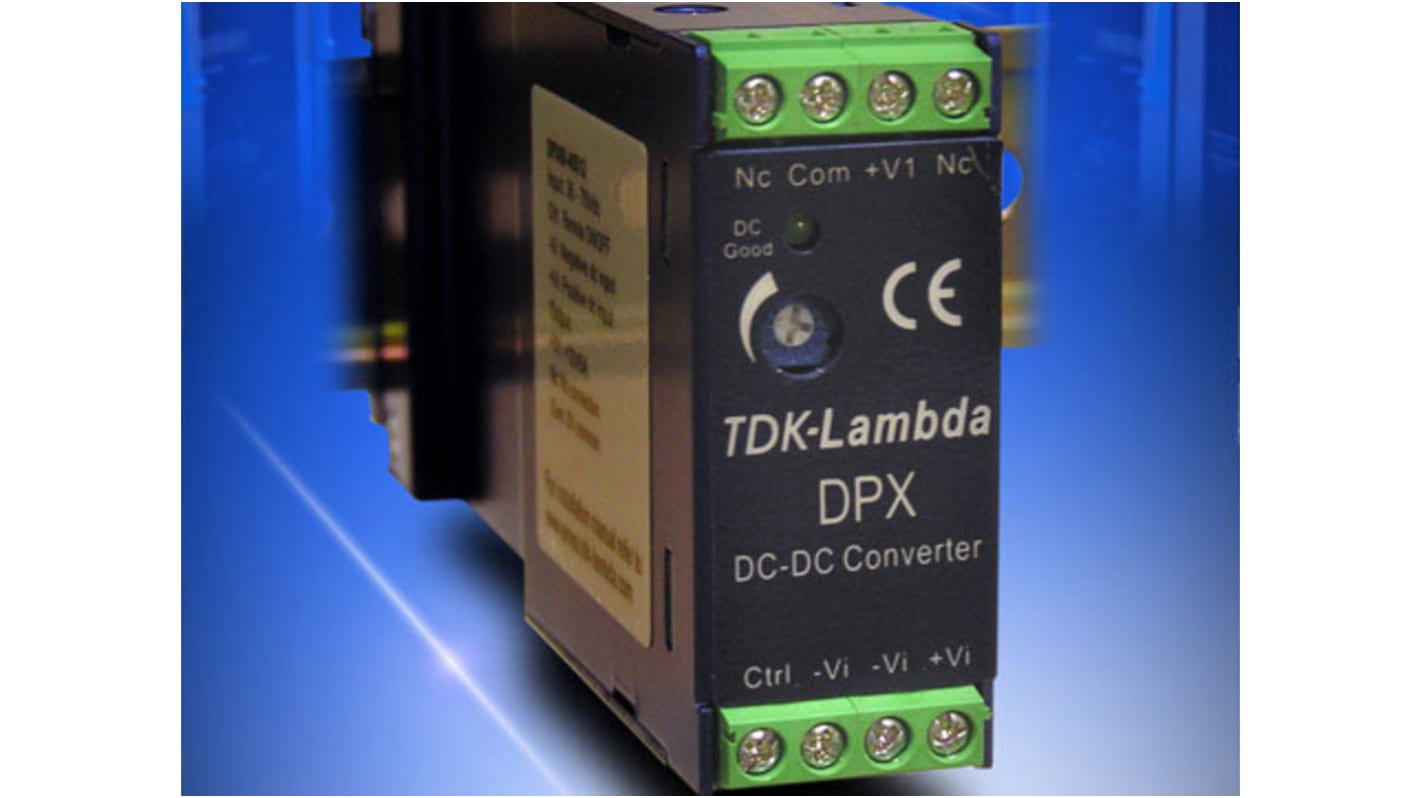

TDK-Lambda DPX DC/DC Converter, 5V dc/ 12 A, 48V dc Input, 48V dc Input, DIN Rail 60 W, 85 °C Max Temp -40 °C Min Temp

View all DC-DC Converters
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
204-0484
Mfr. Part No.:
DPX60-48S05
Brand:
TDK-Lambda
Find similar products by selecting one or more attributes.
Select all

Brand

TDK-Lambda

Output Voltage 1

5V dc

Product Type

DC/DC Converter

Minimum Input Voltage

48V dc

Maximum Input Voltage

48V dc

Output Current 1

12A

Mount Type

DIN Rail

Number of Outputs

1

Ripple and Noise

75mV

Output Voltage Adjustment Range

±10 %

Isolation Voltage

1.6kV

Maximum Output Power

60W

Series

DPX

Width

25.4mm

Standards/Approvals

CE

Weight

182g

Length

125mm

Depth

125mm

Maximum Operating Temperature

85°C

Minimum Operating Temperature

-40°C

Efficiency

0.85%

COO (Country of Origin):
TW
The TDK-Lambda DPX DIN rail mount DC-DC converters are ideal for generating additional, isolated and regulated voltages from the common used 24Vdc DIN rail bus. Fully protected and with Class B EMC performance, the DPX is available with single, dual or triple output models and power levels from 15 to 60W. All commonly requested voltages are covered by the series, and the units will operate from 12V, 24V or 48V nominal dc inputs with either 2:1 or 4:1 ranges.

Meet EN55022 Class B

Input fuse protection

Input reverse polarity protection

Input in-rush current protection

Overload and short circuit protection

Over voltage protection

Reliable Snap-On for DIN rail TS-35/7.5 or TS-35/15

I/O-isolation 1600 VDC

Output DC-OK indicator
