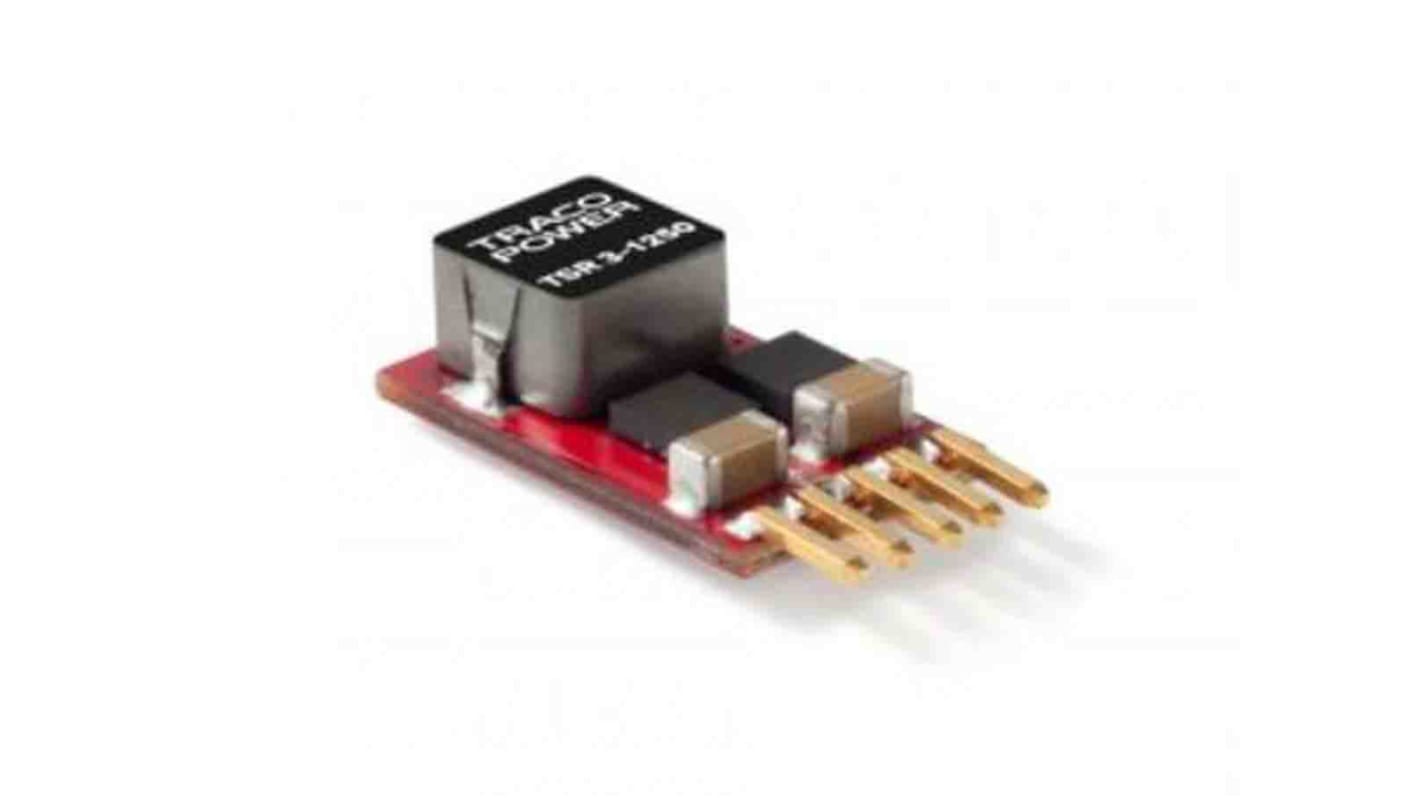

TRACOPOWER TSR 3 DC-DC Converter, 0.6V dc/ 3A Output, 4.5 → 14 V dc Input, Through Hole, +85°C Max Temp -40°C

RS Stock No.:: 200-3538
Mfr. Part No.:: TSR 3-1250A
Brand:: TRACOPOWER

TRACOPOWER TSR 3 DC-DC Converter, 0.6V dc/ 3A Output, 4.5 → 14 V dc Input, Through Hole, +85°C Max Temp -40°C

33 In stock - FREE next working day delivery available

Added

Price Each

£23.76

(exc. VAT)

£28.51

(inc. VAT)

Units	Per unit
1 - 4	£23.76
5 - 9	£23.05
10 - 24	£22.33
25 - 49	£21.38
50 +	£20.43

RS Stock No.:: 200-3538
Mfr. Part No.:: TSR 3-1250A
Brand:: TRACOPOWER

Technical Reference

Datasheet - TSR 3-1250A

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

The Traco Power TSR series is Non-Isolated DC/DC converter family. The TSR 3 models are non isolated step down switching regulators. The high efficiency of up to 95% admits a full load operation up to 50°C and up to 85°C with 50% current reduction. A low standby current, a very wider input range and no requirement for heatsink give these switching regulators a significant advantage over linear regulators.

High performance 3 Amp. Switching regulator
Suitable for positive & negative output circuit
High efficiency up to 95 %
Adjustable output voltages

Specifications

Attribute	Value
Output Voltage	0.6V dc
Input Voltage Range	4.5 → 14 V dc
Input Voltage Nominal	12 V dc
Output Current	3A
Mounting Type	Through Hole
Isolated	No
Number of Outputs	1
Package	SIP
Width	10.4mm
Depth	15.5mm
Length	6mm
Series	TSR 3
Load Regulation	0.008
Minimum Temperature	-40°C
Efficiency	0.93
Maximum Temperature	+85°C
