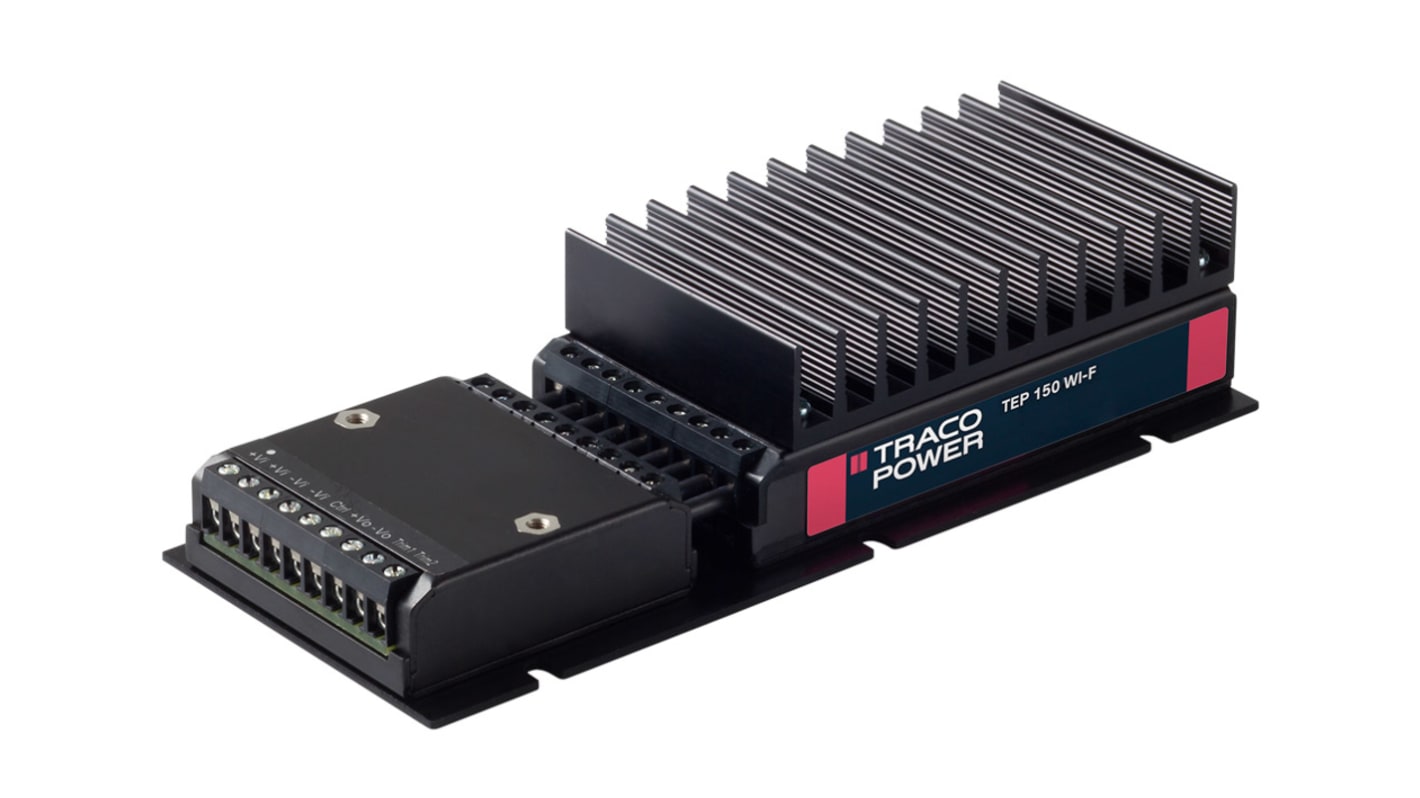

TRACOPOWER TEP 150 DC/DC Converter, 15V dc/, 36V dc Input 10 A, 9V Input, Chassis Mount, 75 °C Max Temp -40 °C Min Temp
- RS Stock No.:
- 198-4642
- Mfr. Part No.:
- TEP 150-2413WI-F
- Brand:
- TRACOPOWER
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£279.76
(exc. VAT)
£335.71
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £279.76 |
| 5 - 9 | £271.37 |
| 10 - 24 | £262.96 |
| 25 - 49 | £251.78 |
| 50 + | £240.59 |
*price indicative
- RS Stock No.:
- 198-4642
- Mfr. Part No.:
- TEP 150-2413WI-F
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage 1 | 15V dc | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 36V dc | |
| Minimum Input Voltage | 9V | |
| Output Current 1 | 10A | |
| Mount Type | Chassis Mount | |
| Output Voltage 2 | 18V | |
| Number of Outputs | 1 | |
| MTBF | 495000h | |
| Output Voltage Adjustment Range | 20 % | |
| Ripple and Noise | 200mV Pk-Pk | |
| Input Ratio | 4:1 | |
| Isolation Voltage | 2.25kV | |
| Package Type | Shielded Metal Case | |
| Maximum Output Power | 150W | |
| Weight | 435g | |
| Standards/Approvals | No | |
| Width | 65mm | |
| Series | TEP 150 | |
| Depth | 35.7mm | |
| Length | 160mm | |
| Efficiency | 0.86% | |
| Maximum Operating Temperature | 75°C | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 1 15V dc | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 36V dc | ||
Minimum Input Voltage 9V | ||
Output Current 1 10A | ||
Mount Type Chassis Mount | ||
Output Voltage 2 18V | ||
Number of Outputs 1 | ||
MTBF 495000h | ||
Output Voltage Adjustment Range 20 % | ||
Ripple and Noise 200mV Pk-Pk | ||
Input Ratio 4:1 | ||
Isolation Voltage 2.25kV | ||
Package Type Shielded Metal Case | ||
Maximum Output Power 150W | ||
Weight 435g | ||
Standards/Approvals No | ||
Width 65mm | ||
Series TEP 150 | ||
Depth 35.7mm | ||
Length 160mm | ||
Efficiency 0.86% | ||
Maximum Operating Temperature 75°C | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- TW
The Traco DC/DC converter modules have originally been designed for harsh industrial environment with high EMC immunity against surge, burst, radiated and conducted disturbances and the shock, vibration and thermal shock resistance make them very popular for stringent requirements.
Ultra wide 4:1 input voltage ranges 9–36, 18–75, 43–160VDC
EN 50155 approval for railway applications
Very high efficiency up to 89%
Easy chassis and wall mounting
3-year product warranty
