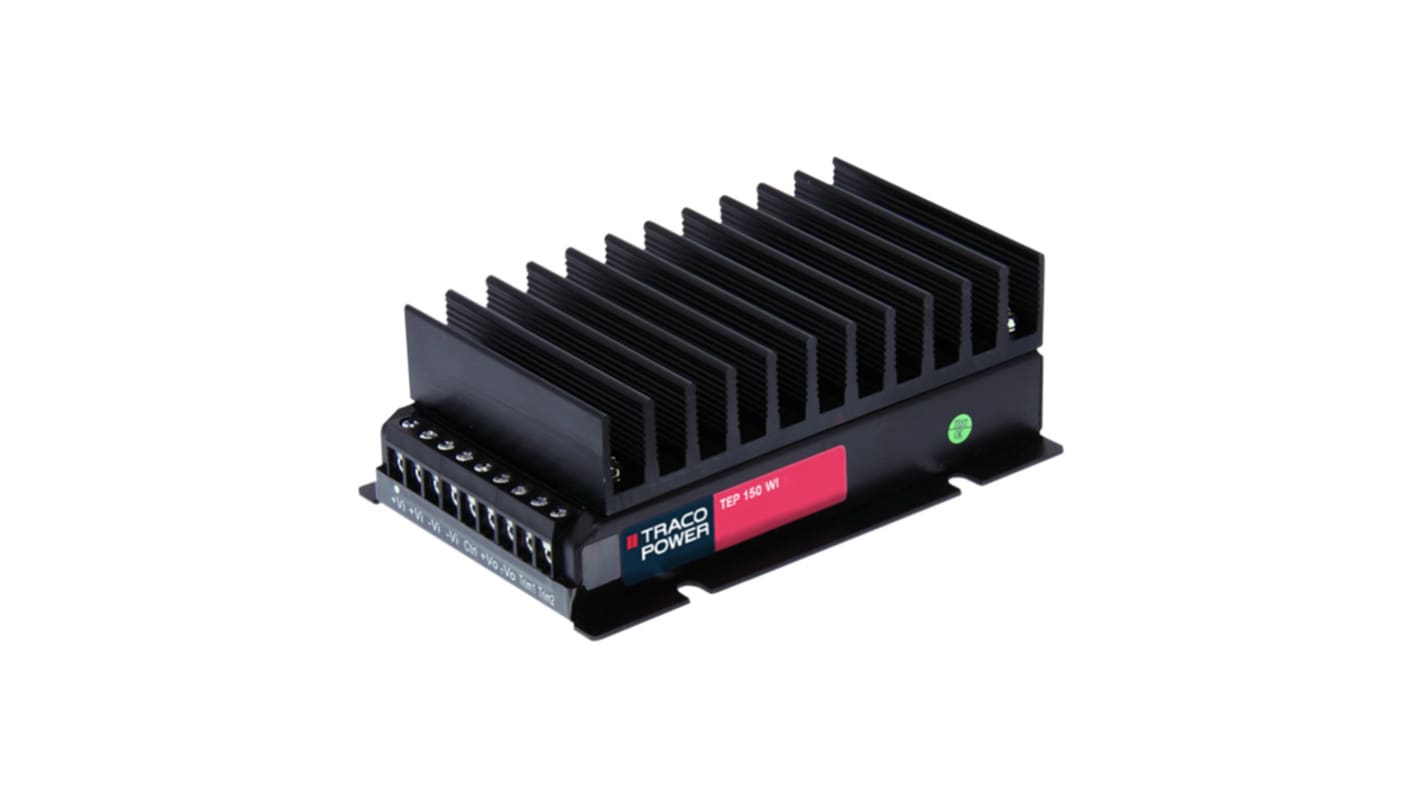

TRACOPOWER TEP 150 DC/DC Converter, 12V dc/, 160V dc Input 12.5 A, 43V Input, Chassis Mount, 75 °C Max Temp -40 °C Min
- RS Stock No.:
- 198-4644
- Mfr. Part No.:
- TEP 150-7212WI
- Brand:
- TRACOPOWER
Subtotal (1 unit)*
£195.56
(exc. VAT)
£234.67
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 21 unit(s) shipping from 04 May 2026
- Plus 32 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £195.56 |
*price indicative
- RS Stock No.:
- 198-4644
- Mfr. Part No.:
- TEP 150-7212WI
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 12V dc | |
| Maximum Input Voltage | 160V dc | |
| Minimum Input Voltage | 43V | |
| Output Current 1 | 12.5A | |
| Mount Type | Chassis Mount | |
| Output Voltage 2 | 14.4V | |
| MTBF | 495000h | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | 20 % | |
| Ripple and Noise | 100mV Pk-Pk | |
| Isolation Voltage | 2.25kV | |
| Input Ratio | 4:1 | |
| Maximum Output Power | 150W | |
| Package Type | Shielded Metal Case | |
| Series | TEP 150 | |
| Weight | 300g | |
| Depth | 35.7mm | |
| Width | 65mm | |
| Length | 98mm | |
| Standards/Approvals | No | |
| Efficiency | 0.88% | |
| Maximum Operating Temperature | 75°C | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type DC/DC Converter | ||
Output Voltage 1 12V dc | ||
Maximum Input Voltage 160V dc | ||
Minimum Input Voltage 43V | ||
Output Current 1 12.5A | ||
Mount Type Chassis Mount | ||
Output Voltage 2 14.4V | ||
MTBF 495000h | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range 20 % | ||
Ripple and Noise 100mV Pk-Pk | ||
Isolation Voltage 2.25kV | ||
Input Ratio 4:1 | ||
Maximum Output Power 150W | ||
Package Type Shielded Metal Case | ||
Series TEP 150 | ||
Weight 300g | ||
Depth 35.7mm | ||
Width 65mm | ||
Length 98mm | ||
Standards/Approvals No | ||
Efficiency 0.88% | ||
Maximum Operating Temperature 75°C | ||
Minimum Operating Temperature -40°C | ||
Traco Power DC-DC Converter, 150W Power Rating, 65mm Width - TEP 150 Series - TEP 150-7212WI
Deliver a balanced power supply to your PCB-connected components with this DC-DC converter from Traco Power. It accepts an input voltage between 43 and 160V DC and steps it down to a stabilised output voltage of 12V DC. To keep sensitive equipment safe from damage, it also puts an isolation barrier of 2.25kV between the input and the output. The unit's shielded aluminium casing protects against external EMI and reduces internal noise to give you clear signal transmission. It also stands up to impact and corrosion, so you can use this device in harsh environments.
Features & Benefits
• IP55 rating means it has limited protection from dust and low-pressure water jets from any direction
• Quick start-up time of 35ms to get your equipment going quickly
• Efficiency of 88% means minimal energy is lost to heat
• Mean time between failures of 495,000 hours for long-lasting performance
Applications
• Process and packaging systems
• Industrial automation
• Security and surveillance equipment
What operating temperature range can this DC-DC converter withstand?
It has a broad operating temperature range between -40°C and +75°C, so it's suitable for use in demanding settings.
